NOTES:

Part #	Number on image	Usage Notes
401-021-220	20	Rotor bearing & housing only sold as kit part number 401-000-002.
401-021-210	36	Rotor bearing & housing only sold as kit part number 401-000-002.

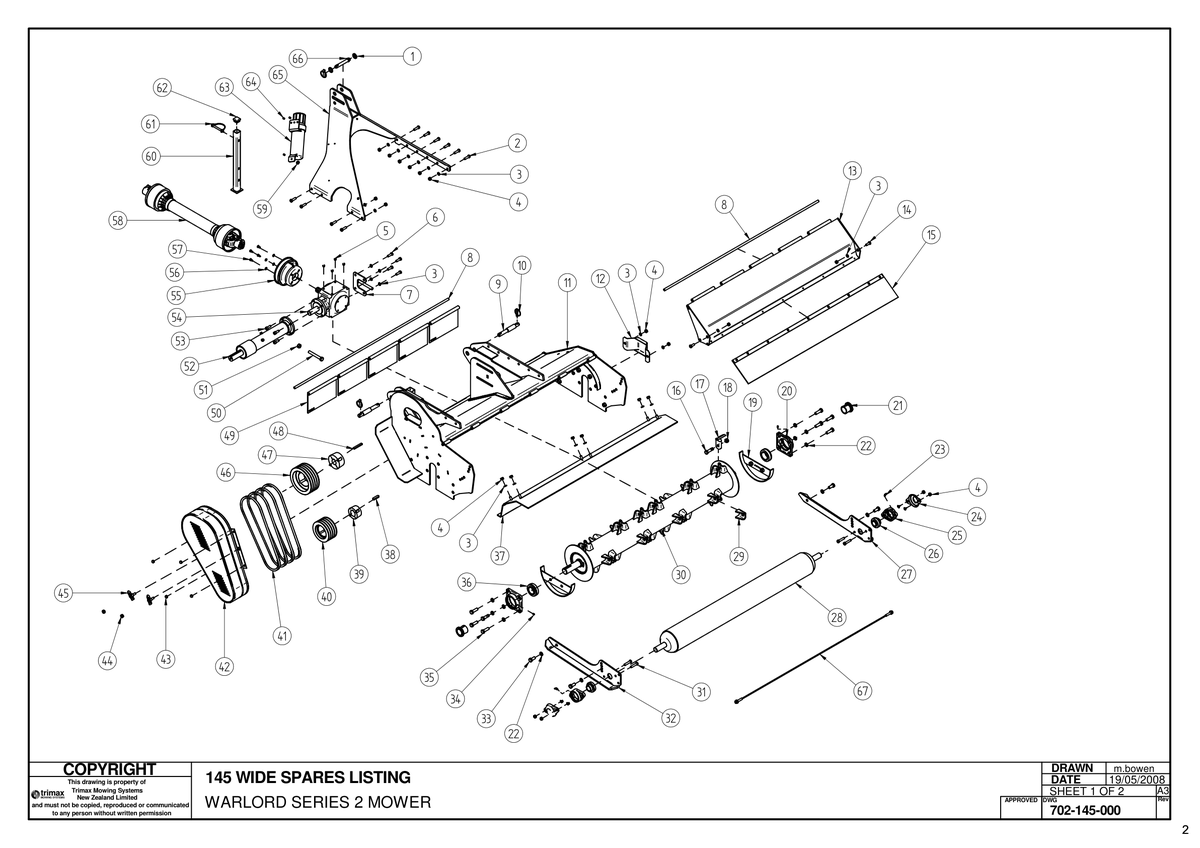

702 Warlord S2 145 - Mower Body Assembly

Warlord S2 145

Grouped product items
No.	Product Name	Price
1	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
2	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	£1.54
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
5	Blanking Plug - M12 209-900-012 More Info >	£0.91
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
7	Adjuster 417-000-428 More Info >	£25.45
8	Hinge Pin 145 417-000-184 More Info >	Price on Request
9	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	£17.85
10	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
12	Bearing Guard 410-460-302 More Info >	£75.23
13	Rear Flap Assembly 417-480-251 More Info >	Price on Request
14	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
16	Bolt - Hex Head M16 x 60 with Hex Nyloc Nut M16 - Trimax Specification 306-216-805 More Info >	£5.28
17	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	£20.27
18	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
19	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	£36.43
20	Bearing Housing i See notes section for usage notes on this part 401-021-220 More Info >	£33.16
21	Sleeve - Taper 401-021-230 More Info >	£20.86
22	Washer - Spring 308-160-043 More Info >	£0.43
23	Grease Nipple - Trimax Specification 208-442-620 More Info >	£2.07
24	Cap 410-464-072 More Info >	£19.11
27	Trailing Arm Weldment - RH 412-000-128 More Info >	£125.05
29	Flail Lug 411-480-610 More Info >	£11.41
30	Rotor 415-480-550 More Info >	Price on Request
31	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	£2.27
32	Trailing Arm Weldment - LH 412-000-129 More Info >	£125.05
33	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	£2.59
34	Grease Nipple - Trimax Specification 208-442-600 More Info >	£1.96
35	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	£2.80
36	Bearing i See notes section for usage notes on this part 401-021-210 More Info >	£37.16
37	Liner 417-000-492 More Info >	Price on Request
38	Key - Trimax Specification 205-425-920 More Info >	£8.40
39	Bush - Taper Lock - Trimax Specification 402-060-730 More Info >	£31.15
40	Pulley - Taper Lock 403-361-180 More Info >	£121.41
41	Vee Belt - Trimax Specification 404-040-512 More Info >	£30.52
42	Belt Guard Weldment 410-480-441 More Info >	£397.52
44	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
45	Drop Latch - Anti-loose 423-080-400 More Info >	£14.99
46	Pulley - Taper Lock 403-361-270 More Info >	£131.97
47	Bush - Taper Lock - Trimax Specification 402-060-710 More Info >	£39.59
48	Key - 12x8mm - Trimax Specification 405-425-910 More Info >	£7.39
49	Front Flap Weldment 417-480-320 More Info >	£23.33
50	Set Screw 305-616-123 More Info >	£5.76
51	Nut - Plain 307-216-013 More Info >	£1.01
53	Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305 More Info >	£1.87
54	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	£644.30
55	Cone - PTO Holes Punched 410-440-402 More Info >	£20.44
56	Washer - Flat 308-080-013 More Info >	£0.33
57	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
58	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	£391.79
59	Washer - Fender 108-031-413 More Info >	£0.33
60	Front Stand Weldment 413-480-660 More Info >	£67.20
61	Pin 406-346-410 More Info >	£6.29
62	Cap - Tube Insert Square 209-480-661 More Info >	£4.66
63	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	£31.95
64	Blind Rivet 213-000-004 More Info >	£0.47
65	Headstock 417-000-459 More Info >	Price on Request
66	Pin - Linkage - Top Link 419-301-150 More Info >	£7.60
67	Roller Scraper 404-480-452 More Info >	Price on Request
