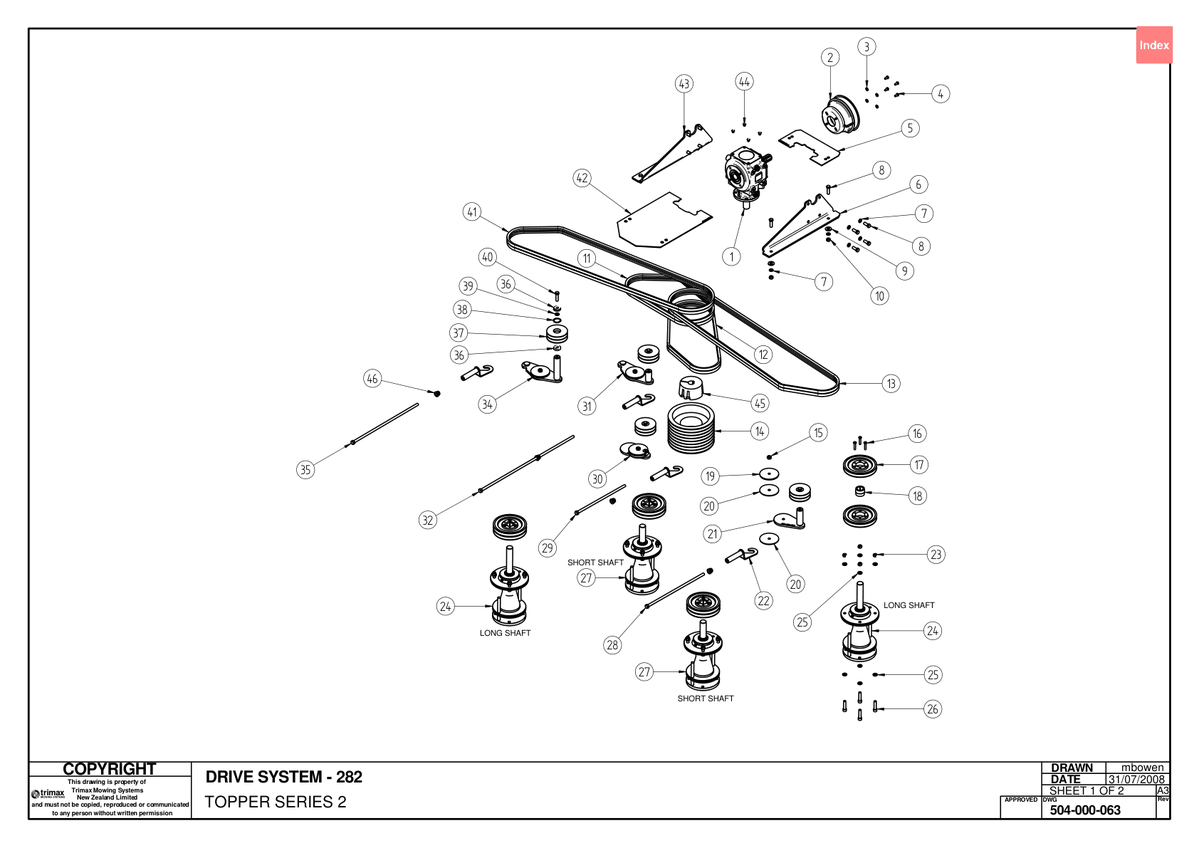

704 - Topper S2 282 - Drive System

Topper S2 282

Grouped product items
No.	Product Name	Price
1	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	£644.30
2	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	£26.40
3	Washer - Flat 308-080-013 More Info >	£0.33
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
5	Inspection Cover 417-000-526 More Info >	Price on Request
6	Gearbox Mounting Plate 417-000-523 More Info >	Price on Request
7	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
8	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
8	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	£1.54
9	Washer - Heavy Flat 308-120-063 More Info >	£0.33
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
14	Pulley 403-000-012 More Info >	Price on Request
15	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
16	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	£1.01
17	Pulley 403-360-500 More Info >	£43.47
18	Bush 402-060-320 More Info >	£20.19
19	Clamp Washer 403-000-030 More Info >	Price on Request
20	Pivot Washer 403-000-020 More Info >	Price on Request
21	Idler Adjuster Assembly M 403-000-019 More Info >	Price on Request
22	Hook Assembly 403-000-031 More Info >	Price on Request
23	Nut - Plain 307-212-010 More Info >	£0.83
25	Washer - Hardened 108-071-513 More Info >	£1.69
26	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	£2.01
28	Adjuster Rod Assembly 403-000-035 More Info >	Price on Request
29	Adjuster Rod Assembly 403-000-034 More Info >	Price on Request
30	Idler Adjuster Assembly Vs 403-000-018 More Info >	Price on Request
31	Idler Adjuster Assembly S 403-000-017 More Info >	Price on Request
32	Adjuster Rod Assembly 403-000-037 More Info >	Price on Request
34	Idler Adjuster Assembly L 403-000-016 More Info >	Price on Request
35	Adjuster Rod Assembly 403-000-036 More Info >	Price on Request
36	Bearing - Trimax Specification - 401-021-900 More Info >	£10.30
37	Idler Pulley 403-000-015 More Info >	Price on Request
38	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
39	Washer - Flat 108-071-413 More Info >	£1.22
40	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	£1.64
42	Inspection Cover 417-000-527 More Info >	Price on Request
43	Gearbox Mounting Plate 417-000-522 More Info >	Price on Request
44	Blanking Plug - M12 209-900-012 More Info >	£0.91
45	Bush 402-000-015 More Info >	Price on Request
46	Tube Bush 402-000-013 More Info >	Price on Request
