NOTES:

Part #	Number on image	Usage Notes
405-200-661	6	For offset mowers.
402-464-061	56	Replaced with Loctite 635 (green), refer to ECN 1665 (July 2011). Applies from serial numbers 705-135-001-0035, 705-155-001-0056, 705-155-002-0047, 705-185-001-0038 and 705-185-002-0035.
406-340-260	61	Select 20hp or 40hp driveshaft depending on tractor.
406-340-560	61	Select 20hp or 40hp driveshaft depending on tractor.

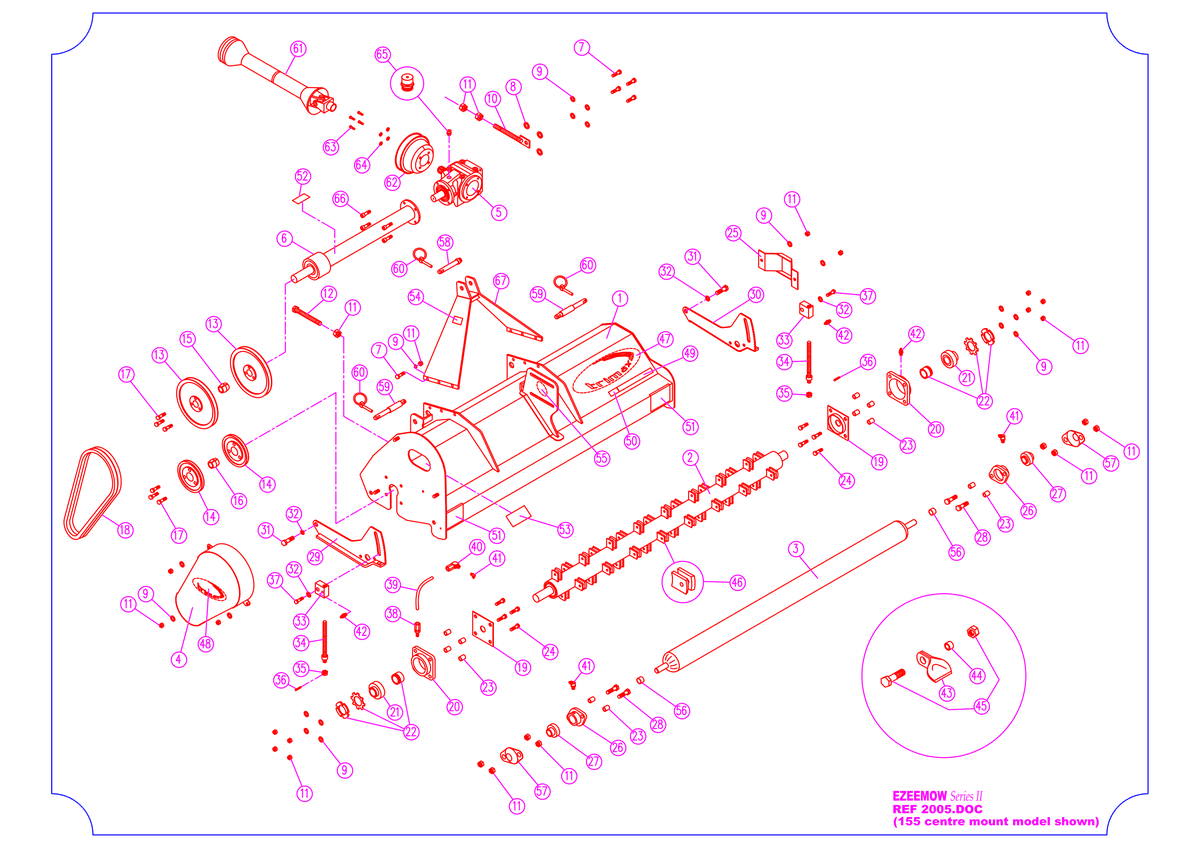

705 - Ezeemow S2 135 - Complete Assembly

Ezeemow S2 135

Grouped product items
No.	Product Name	Price
3	Roller Weldment 135 414-152-312 More Info >	£453.85
4	Guard 410-152-740 More Info >	£157.57
5	Gearbox 405-200-650 More Info >	£450.10
6	Extension Assembly i See notes section for usage notes on this part 405-200-661 More Info >	£371.90
7	Bolt 301-212-353 More Info >	£1.38
8	Washer - Heavy Flat 308-120-063 More Info >	£0.33
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
10	Tension Adjuster 403-154-230 More Info >	£19.74
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
13	Pulley 403-360-650 More Info >	£57.44
14	Pulley 403-360-300 More Info >	£35.19
15	Bush 402-060-150 More Info >	£18.63
16	Bush 402-060-210 More Info >	£19.15
17	Bolt 301-208-403 More Info >	£1.01
18	Vee Belt 404-040-470 More Info >	£14.05
19	Rotor Shield 410-152-290 More Info >	£38.86
20	Housing 401-021-000 More Info >	£26.85
21	Bearing 401-021-050 More Info >	£31.85
22	Tapered Locking Assembly 401-021-150 More Info >	£22.23
23	Sleeve 402-480-740 More Info >	£4.23
24	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
25	Protector 410-152-480 More Info >	£43.97
26	Roller Bearing Assembly - FL205 UK205-16 1" x 52 x 35 - 401-150-300 More Info >	£35.11
28	Bolt 301-212-453 More Info >	£1.64
29	Trailing Arm Weldment LH 412-152-461 More Info >	£100.40
30	Trailing Arm Weldment RH 412-152-462 More Info >	£100.40
31	Bolt 301-216-303 More Info >	£2.39
32	Washer - Spring 308-160-043 More Info >	£0.43
33	Height Adjuster Block 412-330-273 More Info >	£27.88
34	Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2 412-152-420 More Info >	£27.88
36	Roll Pin 202-447-980 More Info >	£1.86
37	Bolt 301-216-553 More Info >	£3.28
38	Fitting - Grease Line 450-152-892 More Info >	£14.46
39	Tube - Grease Line No. 11 ��3/16"OD 903-007-031 More Info >	£3.64
40	Fitting - Grease Line 450-152-822 More Info >	£22.75
41	Grease Nipple 208-442-620 More Info >	£2.07
42	Grease Nipple - 1/4" Short 208-442-600 More Info >	£1.96
43	Flail 411-160-100 More Info >	£11.67
44	Flail Mounting Bush - 10mm - Trimax Specification - 402-060-750 More Info >	£2.35
45	Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403 More Info >	£1.90
46	Flail Lug 411-240-000 More Info >	£3.33
55	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	£25.88
56	Sleeve i See notes section for usage notes on this part 402-464-061 More Info >	£5.86
57	Cap - Bearing Protector Cap - FL205 Housing 410-464-071 More Info >	£15.05
58	Pin - Linkage - Top Link 419-301-150 More Info >	£7.60
59	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	£17.85
60	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
61	Driveshaft i See notes section for usage notes on this part 406-340-260 More Info >	£237.86
61	PTO Shaft i See notes section for usage notes on this part 406-340-560 More Info >	£275.31
62	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	£26.40
64	Washer - Flat 308-080-013 More Info >	£0.33
65	Gearbox - Breather 405-207-207 More Info >	£17.80
