NOTES:

Part #	Number on image	Usage Notes
503-000-086	19	For complete left hand rotor assembly use part number: 503-000-081.

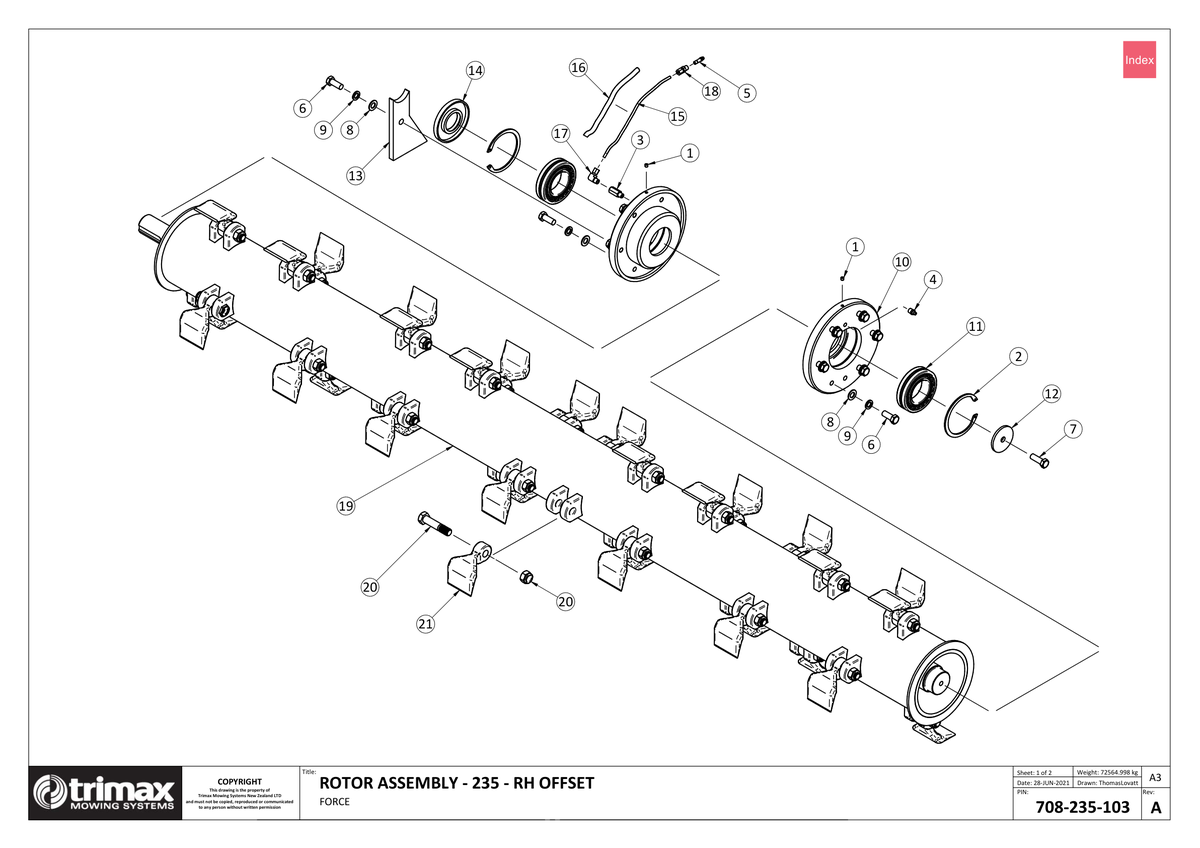

708 Force S1 235 - Cutting System RH Offset

Force S1 235

Grouped product items
No.	Product Name	Price
1	Grub Screw 144-104-025 More Info >	£1.16
2	Circlip - Internal - 100mm (Trimax Specification) 204-000-005 More Info >	Price on Request
3	Grease Nipple Extension - 1/8" BSP - 35mm 208-000-001 More Info >	£15.00
4	Grease Nipple - Trimax Specification 208-442-550 More Info >	£2.80
5	Grease Nipple - Trimax Specification 208-442-610 More Info >	£2.80
6	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
10	Rotor - Bearing Housing 401-000-034 More Info >	£385.34
11	Rotor Bearing - Trimax Specification 401-000-041 More Info >	£104.42
12	Rotor - Retaining Washer 415-000-051 More Info >	£2.39
13	Drive End Fill Panel - Bolt On 417-001-454 More Info >	£42.23
14	Shaft Seal - 45x100x10mm (Trimax Specification) 422-000-006 More Info >	£6.29
17	Fitting - Grease Line 450-152-822 More Info >	£22.75
18	Fitting - Special Tappered Adaptor 450-900-037 More Info >	£11.94
19	Assembly i See notes section for usage notes on this part 503-000-086 More Info >	Price on Request
20	Bolt - Hex Head M16 x 75 with Hex Nyloc Nut M16 - Trimax Specification 306-216-705 More Info >	£8.19
21	Flail - Forged Flail - Warlord and Force - Trimax Specification 411-480-643 More Info >	£14.35
