NOTES:

Part #	Number on image	Usage Notes
402-060-710	25	For 1000rpm gearbox use part number: 402-060-770.
402-060-730	26	For 1000rpm gearbox use part number: 402-060-740.
405-200-720	33	For LH offset counter rotation gearbox use part number: 405-200-721.
405-000-077	34	Centre mount extension shaft listed; for models with hydraulic side shift use part number 405-201-780 for extension shaft. See separate extension shaft listing for components and different sizes.

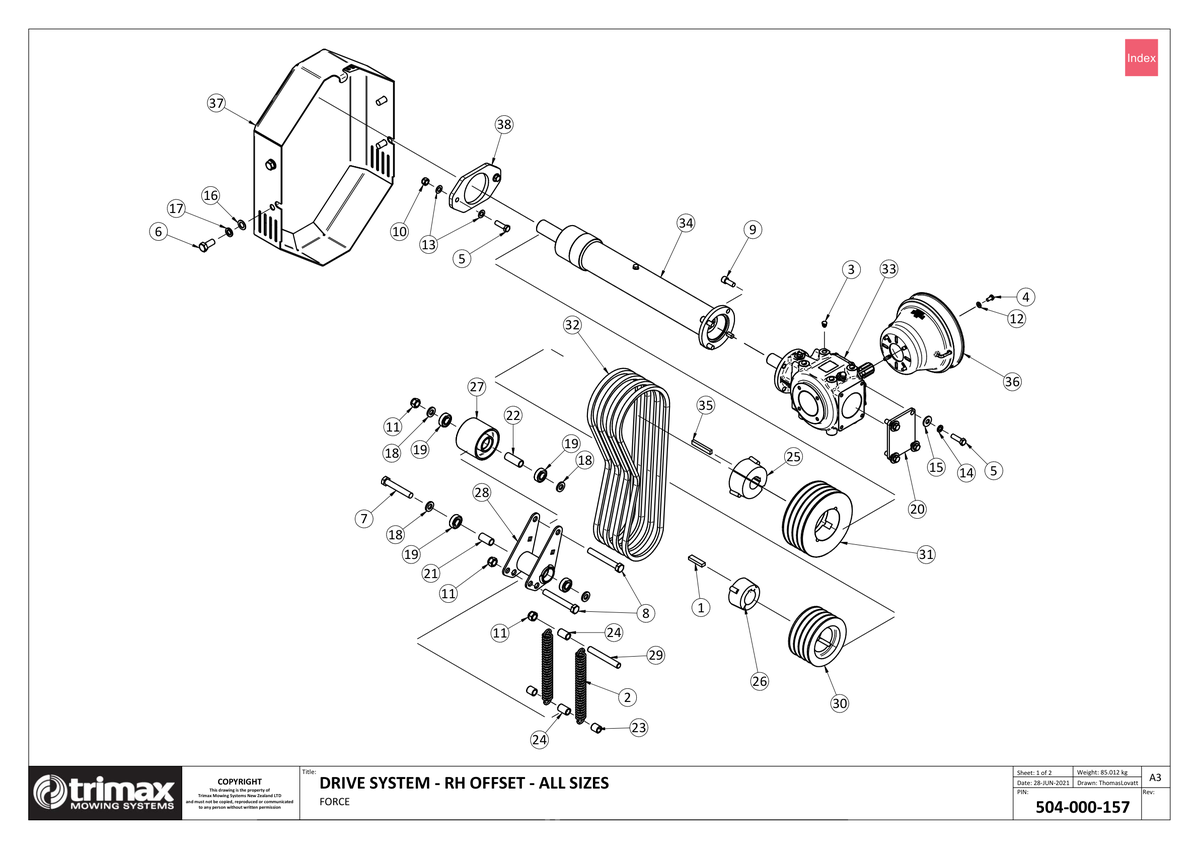

708 Force S1 235 - Drive System RH Offset

Force S1 235

Grouped product items
No.	Product Name	Price
1	Key - Trimax Specification 205-425-920 More Info >	£8.40
2	Spring - Idler Tension - Trimax Specification 207-000-010 More Info >	£26.40
3	Blanking Plug - M12 209-900-012 More Info >	£0.91
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
5	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	£1.54
6	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	£2.59
7	Bolt - Hex Head - M16 x 100 - Trimax Specification 301-616-103 More Info >	£4.76
8	Bolt - Hex Head - M16 x 120 - Trimax Specification 301-616-123 More Info >	£4.97
9	Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305 More Info >	£1.87
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
11	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
12	Washer - Fender - M8 308-080-073 More Info >	£0.33
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
15	Washer - Heavy Flat 308-120-063 More Info >	£0.33
16	Washer - Flat 308-160-013 More Info >	£2.06
17	Washer - Spring 308-160-043 More Info >	£0.43
18	Transport Washer - Hardened - M16 308-160-093 More Info >	£0.38
19	Idler Bearing - Trimax Specification 401-000-037 More Info >	£12.39
20	Gearbox - Spacer 402-000-119 More Info >	£9.51
21	Idler Arm - Spacer Bush 402-000-120 More Info >	£20.59
22	Idler Pulley - Spacer Bush 402-000-126 More Info >	£24.81
23	Idler Arm - Spring Bush - Small - ABT- Force 402-000-129 More Info >	£15.48
24	Idler Arm - Spring Bush - Large - ABT - Force 402-000-130 More Info >	£18.63
25	Bush - Taper Lock - Trimax Specification i See notes section for usage notes on this part 402-060-710 More Info >	£39.59
26	Bush - Taper Lock - Trimax Specification i See notes section for usage notes on this part 402-060-730 More Info >	£31.15
30	Pulley - Taper Lock 403-361-180 More Info >	£121.41
31	Pulley - Taper Lock 403-361-270 More Info >	£131.97
32	Vee Belt - Trimax Specification 404-040-542 More Info >	£31.42
33	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	£644.30
34	Extension Shaft - Assembly - 235 cm i See notes section for usage notes on this part 405-000-077 More Info >	Price on Request
35	Key - 12x8mm - Trimax Specification 405-425-910 More Info >	£7.39
36	PTO Guard Cone - Gearbox 410-000-379 More Info >	£19.01
38	Body - Extension Support - Bolt On 417-001-453 More Info >	Price on Request
