NOTES:

Part #	Number on image	Usage Notes
409-000-096	15	Hydraulic hose kit includes x2 409-000-095 (hydraulic hose with fittings).
409-000-097	16	Side shift Hyd Ram seal kit: 408-000-062.

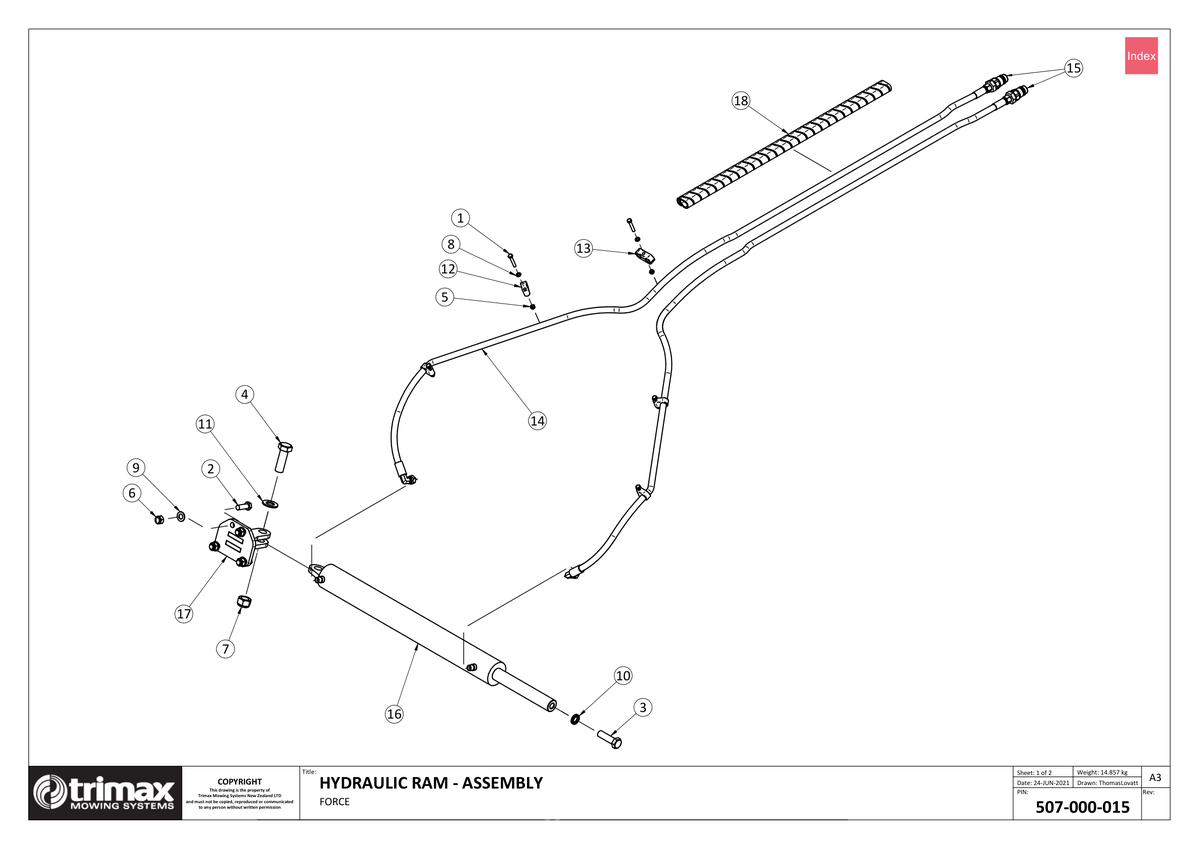

708 Force S1 235 - Hydraulic System

Force S1 235

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M6 x 40 - Trimax Specification 301-206-403 More Info >	£0.58
2	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
3	Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553 More Info >	£3.28
4	Bolt 301-220-603 More Info >	£5.18
5	Nut - Nyloc 307-206-053 More Info >	£0.33
6	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
7	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
8	Washer - Flat 308-060-013 More Info >	£0.27
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
10	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
11	Washer - Flat 308-200-013 More Info >	£0.85
12	Clamp - Hydraulic Hose 408-000-037 More Info >	£3.17
13	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	£5.28
14	Hydraulic Hose - Assembly - Force 409-000-095 More Info >	£71.79
15	Hydraulic Hose - Kit i See notes section for usage notes on this part 409-000-096 More Info >	£143.58
16	Sideshift Ram - Assembly i See notes section for usage notes on this part 409-000-097 More Info >	£712.60
17	Hydraulic Cylinder Mount - Side Shift 413-000-111 More Info >	£58.07
18	Spiral Tie - For Hydraulic Lines Plastic Black (400mm) 450-900-014 More Info >	£23.76
