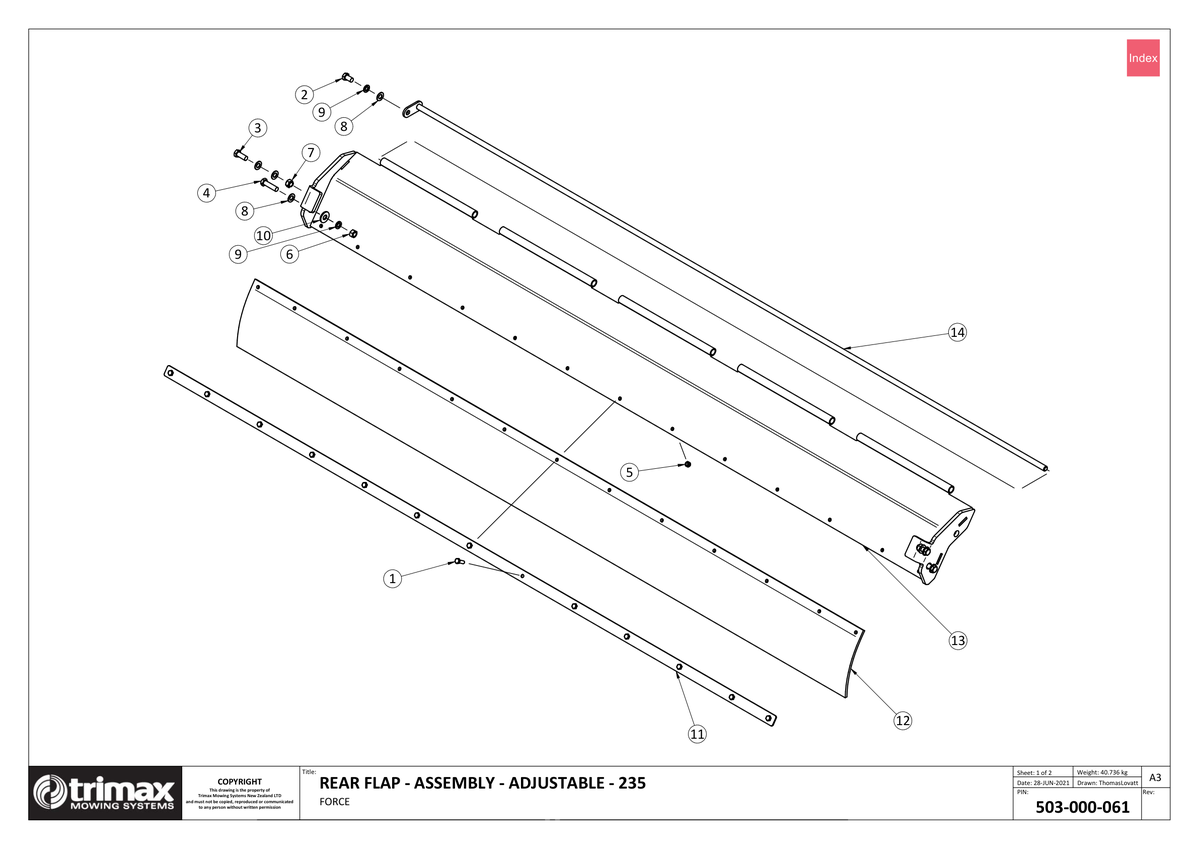

708 Force S1 235 - Rear Flap Assembly Adjustable

Force S1 235

Grouped product items
No. Image Product Name Price Quantity
1 Bolt - Hex Head - M8 x 25 - Trimax Specification [301-208-253] Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253
£0.65
3 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
£1.27
4 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
£1.64
5 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
£0.53
6 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
£0.80
7 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
£0.53
8 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
£0.33
9 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
£0.33
10 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
£0.33
11 Rear Flap - Retaining Strip - 235 - Powder Coated [410-000-389] Rear Flap - Retaining Strip - 235 - Powder Coated 410-000-389
Price on Request
12 Rear Flap - 200mm PVK - 235 [410-000-402] Rear Flap - 200mm PVK - 235 410-000-402
Price on Request
13 Rear Flap - Weldment - Adjustable - 235 [417-001-565] Rear Flap - Weldment - Adjustable - 235 417-001-565
Price on Request
14 Rear Flap - Weldment - Pin 235 [419-000-065] Rear Flap - Weldment - Pin 235 419-000-065
Price on Request
