NOTES:

Part #	Number on image	Usage Notes
414-000-132	11	For Heavy Duty Roller use part number: 414-000-137.

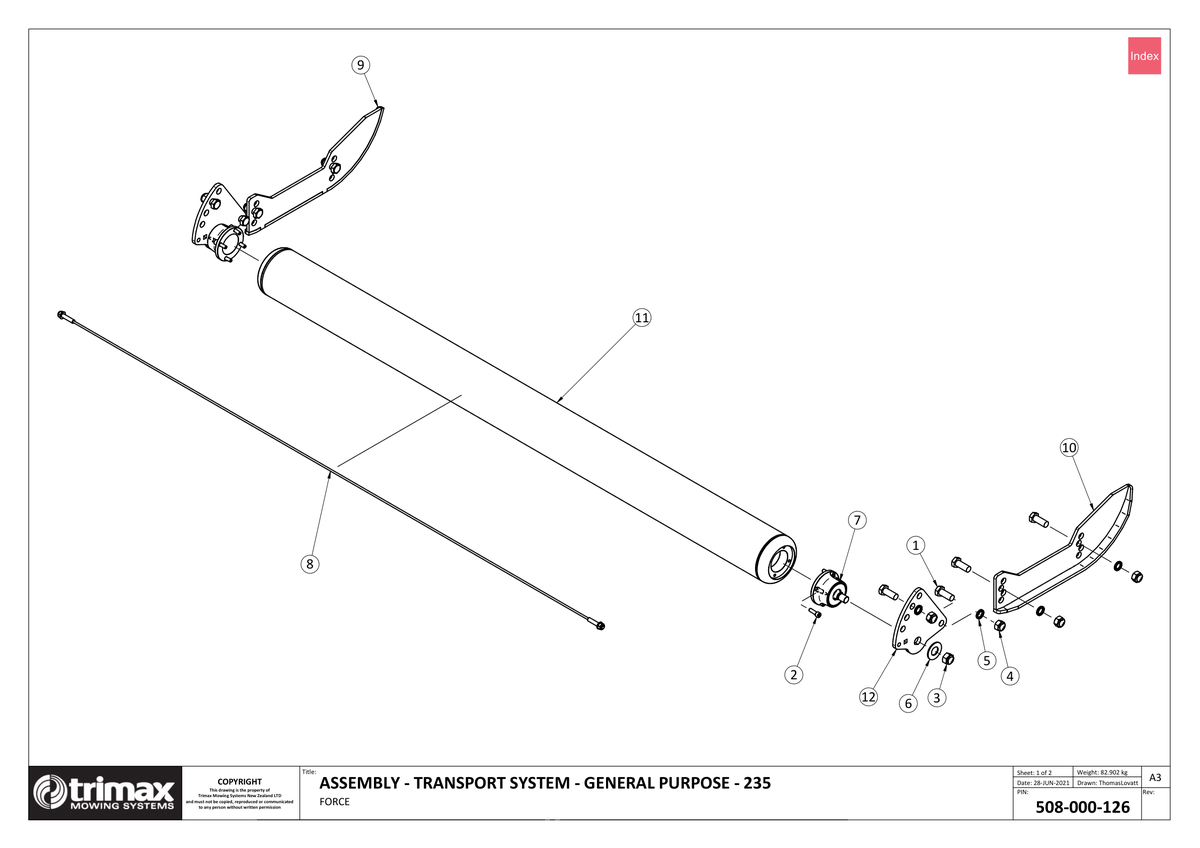

708 Force S1 235 - Transport System General Purpose

Force S1 235

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M20 x 50 - Trimax Specification 301-220-503 More Info >	£5.08
2	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	£1.38
3	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	£7.92
4	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
5	Nordlock Washer - M20 308-200-083 More Info >	£4.65
6	Washer - Heavy Flat 308-270-063 More Info >	£1.43
7	Roller Bearing Assembly - Titan 401-000-035 More Info >	£199.34
8	Roller Scraper - 235 404-000-140 More Info >	£48.43
9	Skid - Weldment - LH - Force 412-000-548 More Info >	£229.20
10	Skid - Weldment - RH - Force 412-000-549 More Info >	£229.20
11	Roller - Weldment - Standard - 235 i See notes section for usage notes on this part 414-000-132 More Info >	£591.20
