NOTES:

Part #	Number on image	Usage Notes
402-060-210	9	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt.
403-360-300	13	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt.
404-040-430	15	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt.
405-200-080	16	For Kubota New Holland and Shibura Power Units Only
405-200-090	17	For John Deer and Iseki Power Units Only

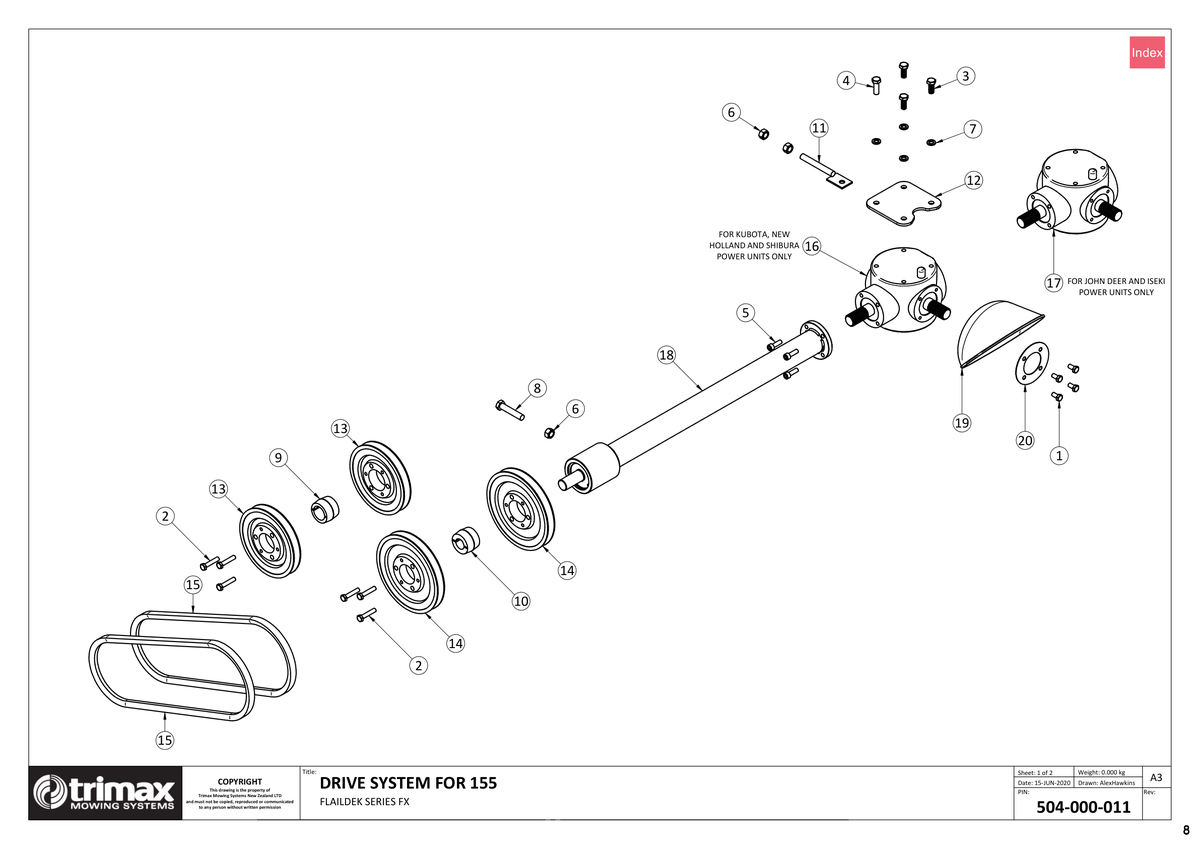

711 - Flaildek FX 155 - Drive System - Biloc

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Bolt 301-208-163 More Info >	£0.53
2	Bolt 301-208-403 More Info >	£1.01
3	Bolt 301-210-253 More Info >	£0.74
4	Bolt 301-210-303 More Info >	£0.80
5	Cap Screw 303-208-255 More Info >	£1.64
6	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
7	Washer - Spring 308-100-043 More Info >	£0.33
8	Set Screw 313-212-603 More Info >	£2.32
9	Bush i See notes section for usage notes on this part 402-060-210 More Info >	£19.15
10	Bush 402-060-240 More Info >	£19.67
11	Tension Adjuster 403-154-210 More Info >	£18.96
12	Slide Plate 403-154-250 More Info >	£10.77
13	Pulley i See notes section for usage notes on this part 403-360-300 More Info >	£35.19
14	Pulley 403-360-500 More Info >	£43.47
15	Vee Belt i See notes section for usage notes on this part 404-040-430 More Info >	£12.73
16	Kubota Gearbox i See notes section for usage notes on this part 405-200-080 More Info >	£719.11
17	John Deere Gearbox i See notes section for usage notes on this part 405-200-090 More Info >	£716.36
18	155 Extension Assembly 405-200-096 More Info >	£528.49
19	Cone 410-440-380 More Info >	£25.40
20	Plate - PTO Cone Retainer 450-440-381 More Info >	£6.13
