NOTES:

Part #	Number on image	Usage Notes
205-000-004	1	Rotor with keyway stub introduced from serial numbers onwards: NZ: TBC; GB: 711-155-270-3002103. All mowers manufactured prior to the above serial number does not require the Key part number 205-000-004.

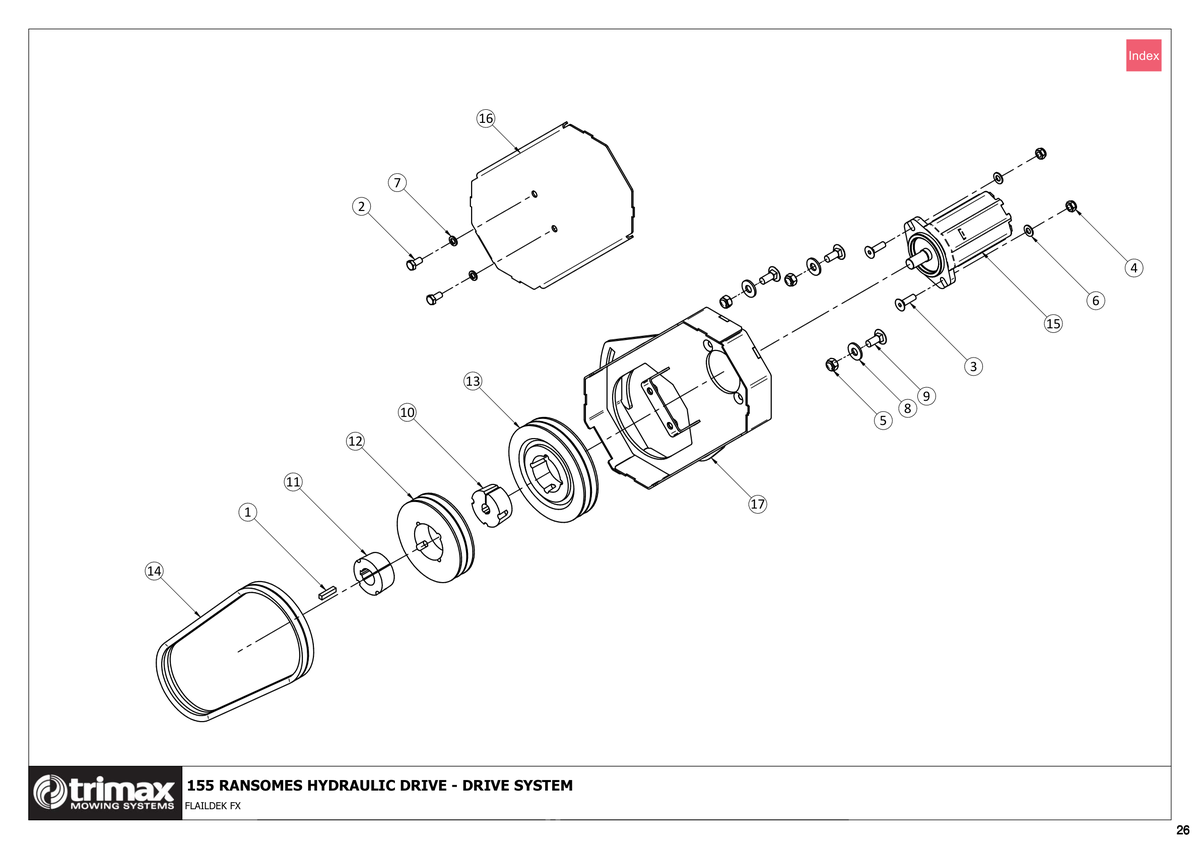

711 - Flaildek FX 155 - Drive System - Ransomes HR300

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Key i See notes section for usage notes on this part 205-000-004	£4.63
2	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	£0.58
3	Countersunk Screw - Socket Head - M10 x 35 - Trimax Specification 302-210-353 More Info >	£1.27
4	Nut - Nyloc 307-210-053 More Info >	£0.53
5	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
6	Washer - Flat 308-100-013 More Info >	£0.33
7	Washer - Spring 308-100-043 More Info >	£0.33
8	Washer - Heavy Flat 308-120-063 More Info >	£0.33
9	Coach Bolt 311-212-303 More Info >	£1.27
10	Bush - Taper Lock 402-000-075 More Info >	£34.84
11	Bush - Taper Lock 402-060-670 More Info >	£31.95
12	Pulley - Taper Lock 403-000-071 More Info >	£39.65
13	Pulley - Taper Lock 403-000-072 More Info >	£32.00
14	Vee Belt - Trimax Specification 404-051-060 More Info >	£21.54
15	Motor - Hydraulic 409-000-050 More Info >	£822.24
16	Lid 417-000-967 More Info >	Price on Request
17	Motor Mount Weldment 417-000-984 More Info >	Price on Request
