NOTES:

Part #	Number on image	Usage Notes
503-000-110	16	Complete flailed and balanced rotor

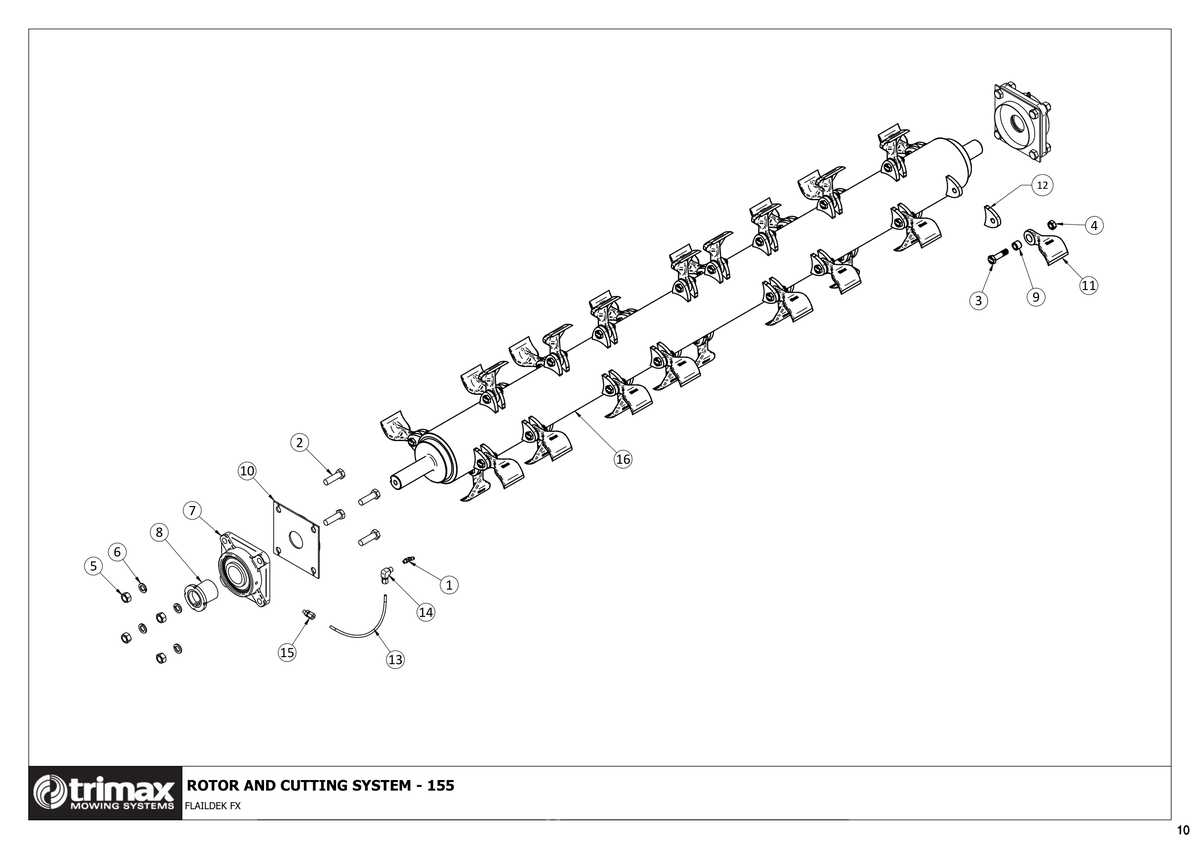

711 - Flaildek FX 155 - Rotor & Cutting System

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-620 More Info >	£2.07
2	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
3	Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403 More Info >	£1.90
4	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	£0.42
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
6	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
7	Bearing Assembly 401-000-001 More Info >	£65.35
8	Tapered Locking Assembly 401-021-150 More Info >	£22.23
9	Flail Mounting Bush - 10mm - Trimax Specification - 402-060-750 More Info >	£2.35
10	Rotor Shield 410-152-290 More Info >	£38.86
11	Flail - Forged Flail - Ezeemow and Flaildek - Trimax Specification - 411-160-105 More Info >	£12.80
12	Flail Lug 411-240-011 More Info >	£3.65
13	Grease Line - Plastic ��4.5 450-000-011 More Info >	£1.27
14	Fitting - Grease Line 450-152-822 More Info >	£22.75
15	Fitting - Grease Line 450-152-892 More Info >	£14.46
16	Rotor - Assembly - 155 - Keyway - EMFX and FDFX i See notes section for usage notes on this part 503-000-110 More Info >	£2,227.16
