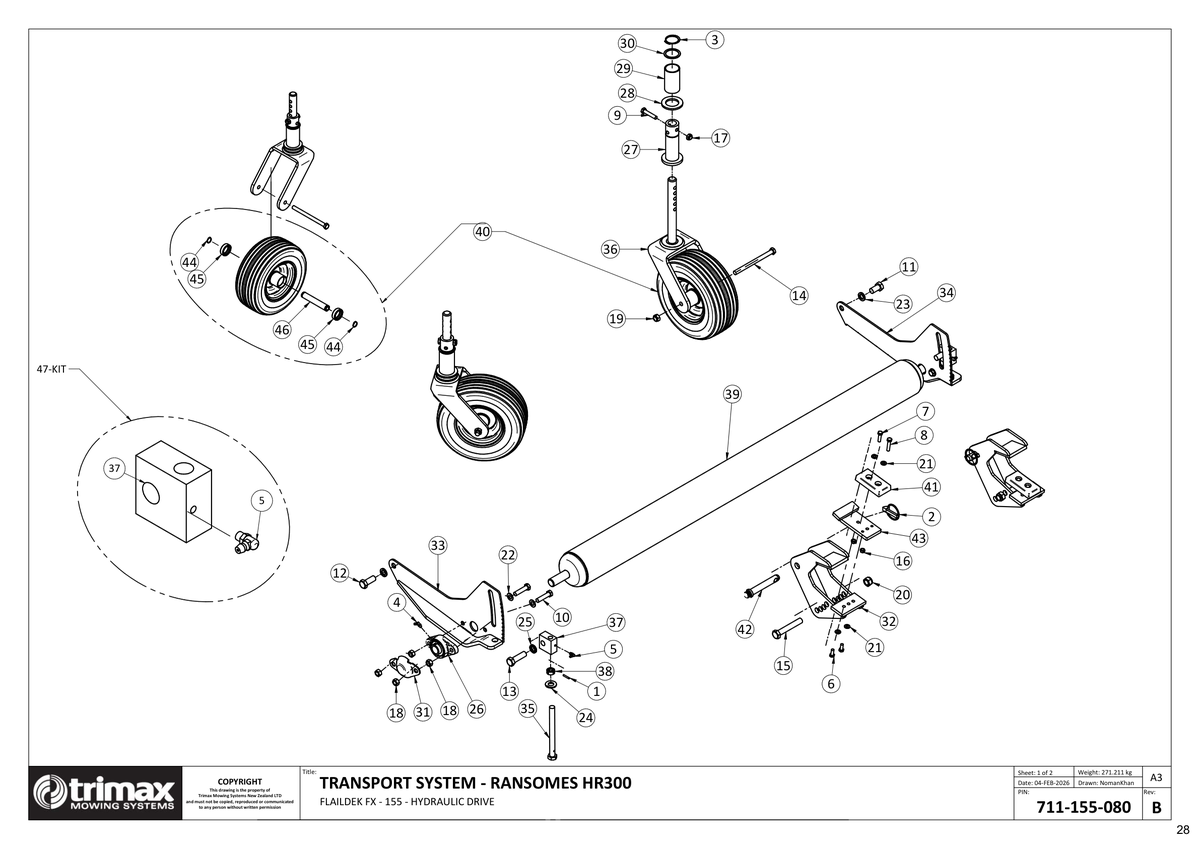

711 - Flaildek FX 155 - Transport System - Ransomes HR300

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	£1.86
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
3	Circlip/Snap Ring - External 204-820-402 More Info >	£1.45
4	Grease Nipple - Trimax Specification 208-442-620 More Info >	£2.07
5	Grease Nipple - Trimax Specification 208-442-650 More Info >	£2.54
6	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	£0.58
7	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	£0.78
8	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	£1.01
9	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	£1.27
10	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	£1.74
11	Bolt - Hex Head - M16 x 30 - Trimax Specification 301-216-303 More Info >	£2.39
12	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	£2.64
13	Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553 More Info >	£3.28
14	Bolt - Hex Head - M12 x 160 - Trimax Specification 301-612-163 More Info >	£5.39
15	Bolt - Hex Head - M16 x 100 - Trimax Specification 301-616-103 More Info >	£4.76
16	Nut - Nyloc 307-208-056 More Info >	£0.53
17	Nut - Nyloc 307-210-053 More Info >	£0.53
18	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
19	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
20	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
21	Washer - Flat 308-080-016 More Info >	£0.33
22	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
23	Washer - Spring 308-160-043 More Info >	£0.43
24	Washer - Heavy Flat 308-160-063 More Info >	£0.58
25	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
26	Roller Bearing Assembly - Trimax Specification 401-150-300 More Info >	£35.11
27	Pivot Boss 402-152-110 More Info >	£70.53
28	Thrust Washer 402-152-120 More Info >	£12.78
29	Pivot Bush 402-152-130 More Info >	£44.02
30	Retaining Washer 402-152-140 More Info >	£9.71
31	Cap - Bearing Protector Cap 410-464-071 More Info >	£15.05
32	Linkage Adjuster Weldment 412-000-244 More Info >	Price on Request
33	Trailing Arm Weldment LH 412-000-380 More Info >	£108.74
34	Trailing Arm Weldment RH 412-000-381 More Info >	£108.74
35	Set Screw 412-000-610	£12.20
36	Castor Fork Weldment - 5 hole 412-152-560 More Info >	£321.09
37	Height Adjuster Block 412-330-273 More Info >	£27.88
38	Collar - Height Adjuster 412-850-260 More Info >	£14.44
39	Roller Weldment 155 414-152-302 More Info >	£463.25
40	Wheel - Semi Pneumatic 416-000-076 More Info >	£180.68
41	Pad 417-153-140 More Info >	£17.80
42	Pin - Linkage - Top Link 419-301-150 More Info >	£7.60
43	Linkage Adaptor Weldment 420-000-084 More Info >	£40.37
44	Circlip/Snap Ring - External 204-820-192 More Info >	£0.96
45	Bearing 401-000-012 More Info >	£12.73
46	Sleeve - Castor Axle 416-000-097 More Info >	£43.61
