NOTES:

Part #	Number on image	Usage Notes
412-000-610	31	Use part number 412-152-420 for Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2
401-000-047	40	Item number 40 & 41 are only used on black steel rim configuration.
402-000-155	41	Item number 40 & 41 are only used on black steel rim configuration.
204-820-192	42	Item number 42 43 & 44 are only used on white steel rim configuration.
401-000-012	43	Item number 42 43 & 44 are only used on white steel rim configuration.
416-000-097	44	Item number 42 43 & 44 are only used on white steel rim configuration.

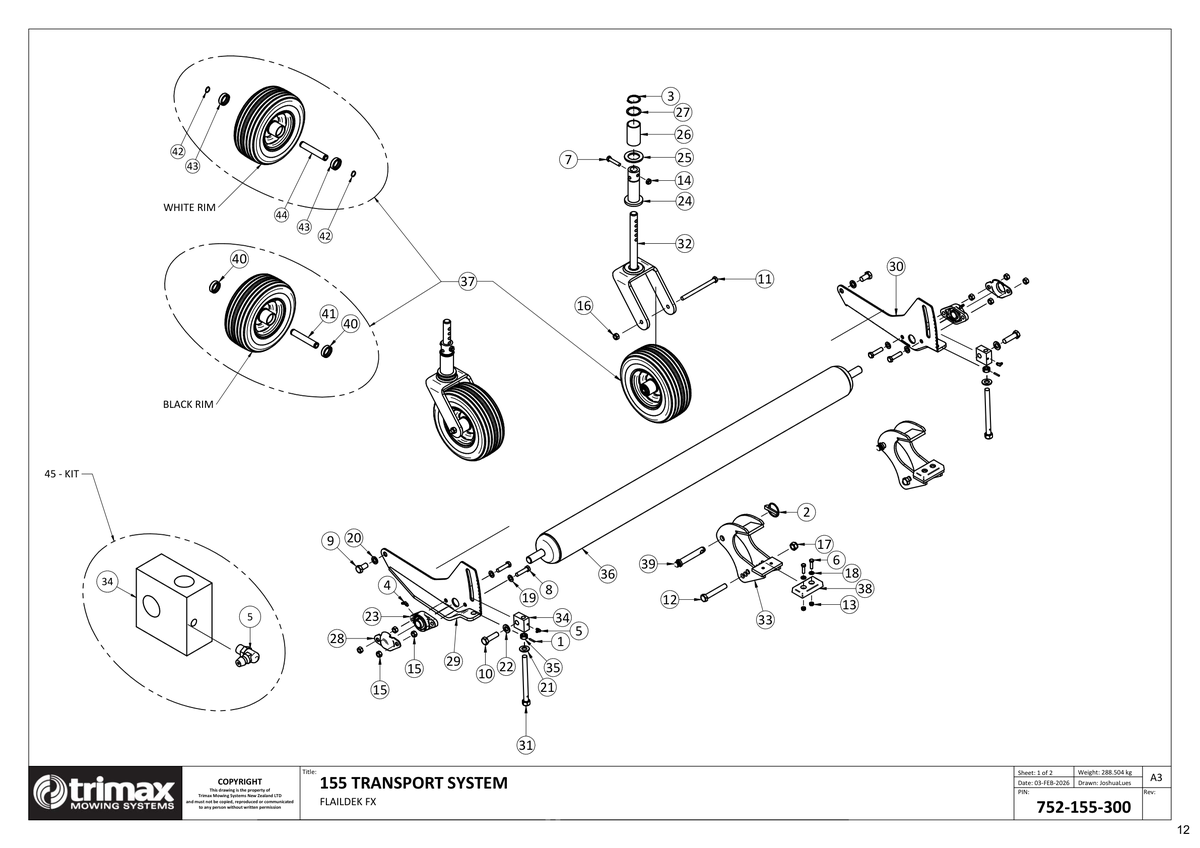

711 - Flaildek FX 155 - Transport System

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	£1.86
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
3	Circlip/Snap Ring - External 204-820-402 More Info >	£1.45
4	Grease Nipple 208-442-620 More Info >	£2.07
5	Grease Nipple 208-442-650 More Info >	£2.54
6	Bolt 301-208-303 More Info >	£0.78
7	Bolt 301-210-503 More Info >	£1.27
8	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	£1.74
9	Bolt 301-216-303 More Info >	£2.39
10	Bolt 301-216-553 More Info >	£3.28
11	Bolt 301-612-163 More Info >	£5.39
12	Bolt 301-616-103 More Info >	£4.76
13	Nut - Nyloc 307-208-056 More Info >	£0.53
14	Nut - Nyloc 307-210-053 More Info >	£0.53
15	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
16	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
17	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
18	Washer - Flat 308-080-016 More Info >	£0.33
19	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
20	Washer - Spring 308-160-043 More Info >	£0.43
21	Washer - Heavy Flat 308-160-063 More Info >	£0.58
22	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
23	Roller Bearing Assembly - FL205 UK205-16 1" x 52 x 35 - 401-150-300 More Info >	£35.11
24	Pivot Boss 402-152-110 More Info >	£70.53
25	Thrust Washer 402-152-120 More Info >	£12.78
26	Pivot Bush 402-152-130 More Info >	£44.02
27	Retaining Washer 402-152-140 More Info >	£9.71
28	Cap - Bearing Protector Cap - FL205 Housing 410-464-071 More Info >	£15.05
29	Trailing Arm Weldment LH 412-000-380 More Info >	£108.74
30	Trailing Arm Weldment RH 412-000-381 More Info >	£108.74
31	Set Screw i See notes section for usage notes on this part 412-000-610	£12.20
32	Castor Fork Weldment - 5 hole 412-152-560 More Info >	£321.09
33	Linkage Adjuster Weldment 412-154-200 More Info >	£164.17
34	Height Adjuster Block 412-330-273 More Info >	£27.88
35	Collar - Height Adjuster 412-850-260 More Info >	£14.44
36	Roller Weldment 155 414-152-302 More Info >	£463.25
37	Wheel - Semi Pneumatic 416-000-076 More Info >	£180.68
38	Pad 417-153-140 More Info >	£17.80
39	Pin - Linkage - Top Link 419-301-150 More Info >	£7.60
40	Bearing 6204-2RS i See notes section for usage notes on this part 401-000-047 More Info >	£16.11
41	Sleeve - Castor Axle Ø13 X Ø24 X 120 i See notes section for usage notes on this part 402-000-155 More Info >	£33.05
42	Circlip/Snap Ring - External i See notes section for usage notes on this part 204-820-192 More Info >	£0.96
43	Bearing i See notes section for usage notes on this part 401-000-012 More Info >	£12.73
44	Sleeve - Castor Axle i See notes section for usage notes on this part 416-000-097 More Info >	£43.61
