NOTES:

Part #	Number on image	Usage Notes
403-360-400	3	When fitting to an Iseki power unit the rotor pulley needs to be changed. Use 403-360-500 pulley. From s/n 711-185-030-0004 the pulleys were reversed and this is the recommended fitting for all mowers including prior s/n.
403-360-300	5	When fitting to an Iseki power unit the rotor pulley needs to be changed. Use 403-360-500 pulley. From s/n 711-185-030-0004 the pulleys were reversed and this is the recommended fitting for all mowers including prior s/n.

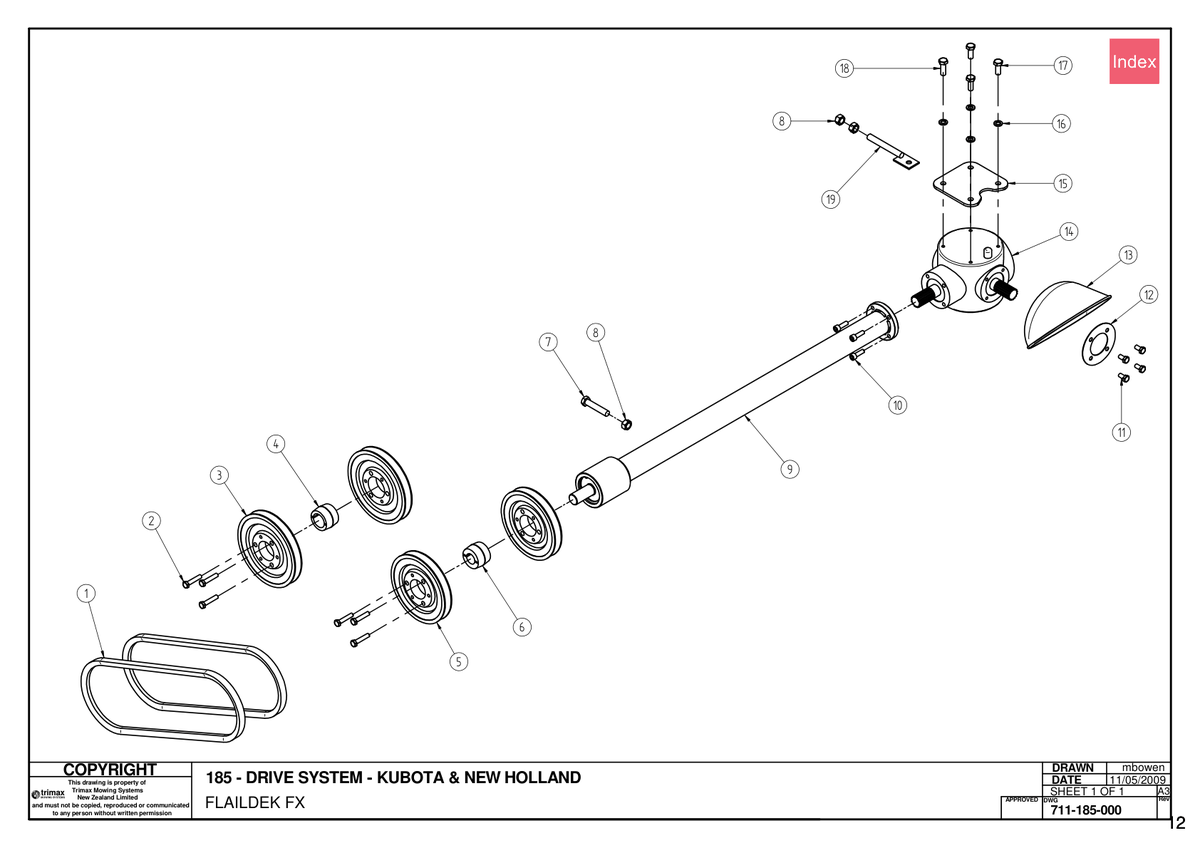

711 - Flaildek FX 185 - Drive System - NH & Kubota - Biloc

FlailDek FX 185

Grouped product items
No.	Product Name	Price
1	Vee Belt 404-040-422 More Info >	£16.58
2	Bolt 301-208-403 More Info >	£1.01
3	Pulley i See notes section for usage notes on this part 403-360-400 More Info >	£40.37
4	Bush 402-060-210 More Info >	£19.15
5	Pulley i See notes section for usage notes on this part 403-360-300 More Info >	£35.19
6	Bush 402-060-240 More Info >	£19.67
7	Set Screw 313-212-603 More Info >	£2.32
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
9	185 Extension Assembly 405-200-126 More Info >	£587.18
10	Cap Screw 303-208-255 More Info >	£1.64
11	Bolt 301-208-163 More Info >	£0.53
12	Plate - PTO Cone Retainer 450-440-381 More Info >	£6.13
13	Cone 410-440-380 More Info >	£25.40
14	Kubota Gearbox 405-200-080 More Info >	£719.11
15	Slide Plate 403-154-250 More Info >	£10.77
16	Washer - Spring 308-100-043 More Info >	£0.33
17	Bolt 301-210-253 More Info >	£0.74
18	Bolt 301-210-303 More Info >	£0.80
19	Tension Adjuster 403-154-210 More Info >	£18.96
