NOTES:

Part #	Number on image	Usage Notes
409-448-200	20	Refer to Ram parts listing 409-448-200
402-000-012	21	Replaceable wing hinge bushes introduced post S/N 716-340-001-0037 and 716-340-002-0069

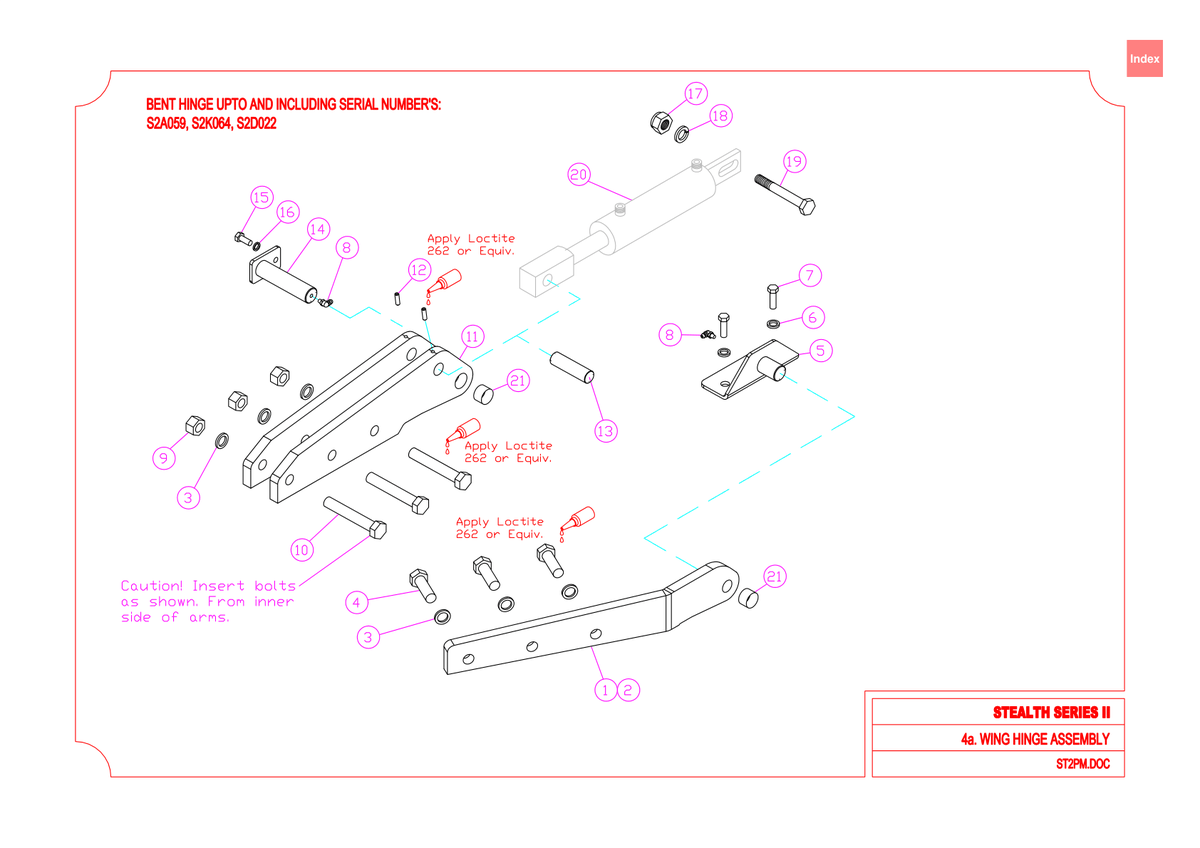

716 - Stealth S2 340 - Wing Hinge Assembly - Bent

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Hinge Arm Left Rear 417-850-031 More Info >	£69.36
2	Hinge Arm Right Rear 417-850-032 More Info >	£69.36
3	Washer - Spring 308-160-043 More Info >	£0.43
4	Bolt 301-216-403 More Info >	£2.64
5	Hinge Pin Weldment - Wing Rear 419-850-620 More Info >	£91.90
6	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
7	Bolt 301-212-253 More Info >	£1.16
8	Grease Nipple 208-442-650 More Info >	£2.54
9	Nut - Plain 307-216-013 More Info >	£1.01
10	Bolt 301-216-903 More Info >	£3.56
11	Hinge Arm Front 417-850-020 More Info >	£107.89
12	Grub Screw 312-206-205 More Info >	£0.80
13	Hinge Pin - Wing Lift Upper - Hyd Cyl 419-850-650 More Info >	£23.86
14	Hinge Pin Weldment - Wing Front 419-850-600 More Info >	£69.68
15	Bolt 301-208-163 More Info >	£0.53
16	Washer - Spring 308-080-043 More Info >	£0.33
17	Nut - Plain 307-220-013 More Info >	£1.27
19	Bolt 305-620-153 More Info >	£17.53
20	Hydraulic Lift Ram i See notes section for usage notes on this part 409-448-200 More Info >	£471.43
21	Bush i See notes section for usage notes on this part 402-000-012 More Info >	£22.33
