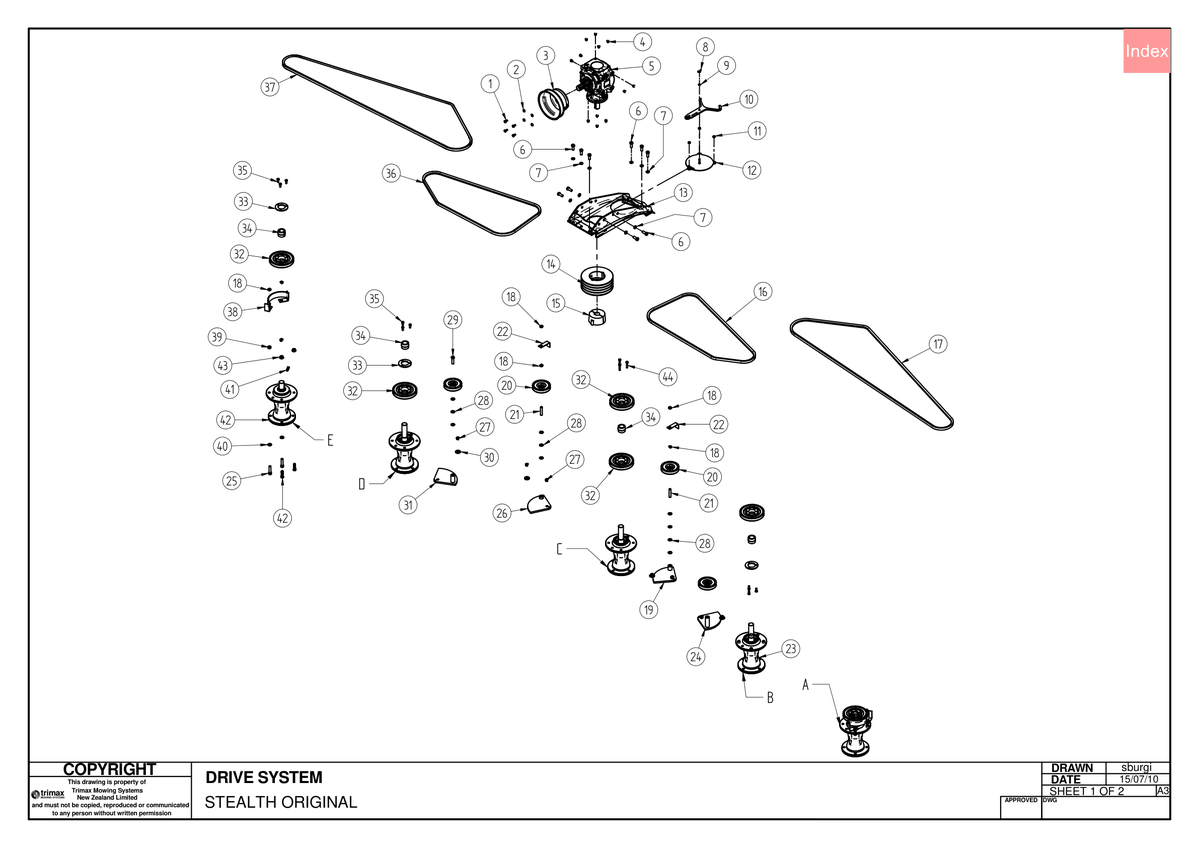

717 - Stealth Original 340 - Drive System

Stealth Original 340

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
2	Washer - Flat 308-080-016 More Info >	£0.33
3	Cone - PTO Holes Punched 410-440-402 More Info >	£20.44
4	Blanking Plug - M12 209-900-012 More Info >	£0.91
5	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	£644.30
6	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
7	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
8	Nut - Wing 307-208-263 More Info >	Price on Request
9	Washer - Spring 308-080-043 More Info >	£0.33
10	Height Adjuster Tool - Roller 450-000-058 More Info >	Price on Request
11	Nut - Nyloc 307-208-056 More Info >	£0.53
12	Pulley Cover Weldment 417-000-893 More Info >	Price on Request
13	Gearbox Mount Weldment - Stealth FM/Original 417-000-708 More Info >	£642.45
14	Pulley - Taper Lock 403-361-270 More Info >	£131.97
15	Bush - Taper Lock 402-060-680 More Info >	£43.76
16	Vee Belt - Trimax Specification 404-040-830 More Info >	£22.91
17	Vee Belt - Trimax Specification 404-041-300 More Info >	£37.91
18	Nut - Half 307-212-023 More Info >	£1.01
19	Idler Tower Incl Base 403-330-423 More Info >	£55.89
20	Pulley Assembly - Idler 403-360-111 More Info >	£45.50
21	Stud 403-330-443 More Info >	£1.43
22	Belt Retainer Guide 417-330-450 More Info >	£16.56
23	Spindle Assembly - Type 5a Ext 50mm 504-328-042 More Info >	£83.30
24	Idler Tower Incl Base 403-330-442 More Info >	£49.52
25	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	£2.01
26	Idler Tower Incl Base 403-330-424 More Info >	£53.82
27	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
28	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
29	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	£1.64
30	Washer - Heavy Flat 308-120-063 More Info >	£0.33
31	Idler Tower Incl Base 403-330-432 More Info >	£39.97
32	Pulley 403-360-300 More Info >	£35.19
33	Retainer Ring 402-060-450 More Info >	£6.66
34	Bush 402-060-320 More Info >	£20.19
35	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	£0.58
39	Nut - Plain 307-212-010 More Info >	£0.83
40	Washer - Hardened 108-071-513 More Info >	£1.69
41	Nipple 450-900-035 More Info >	£6.13
43	Nut - Flange 450-000-078 More Info >	£1.80
44	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	£1.01
