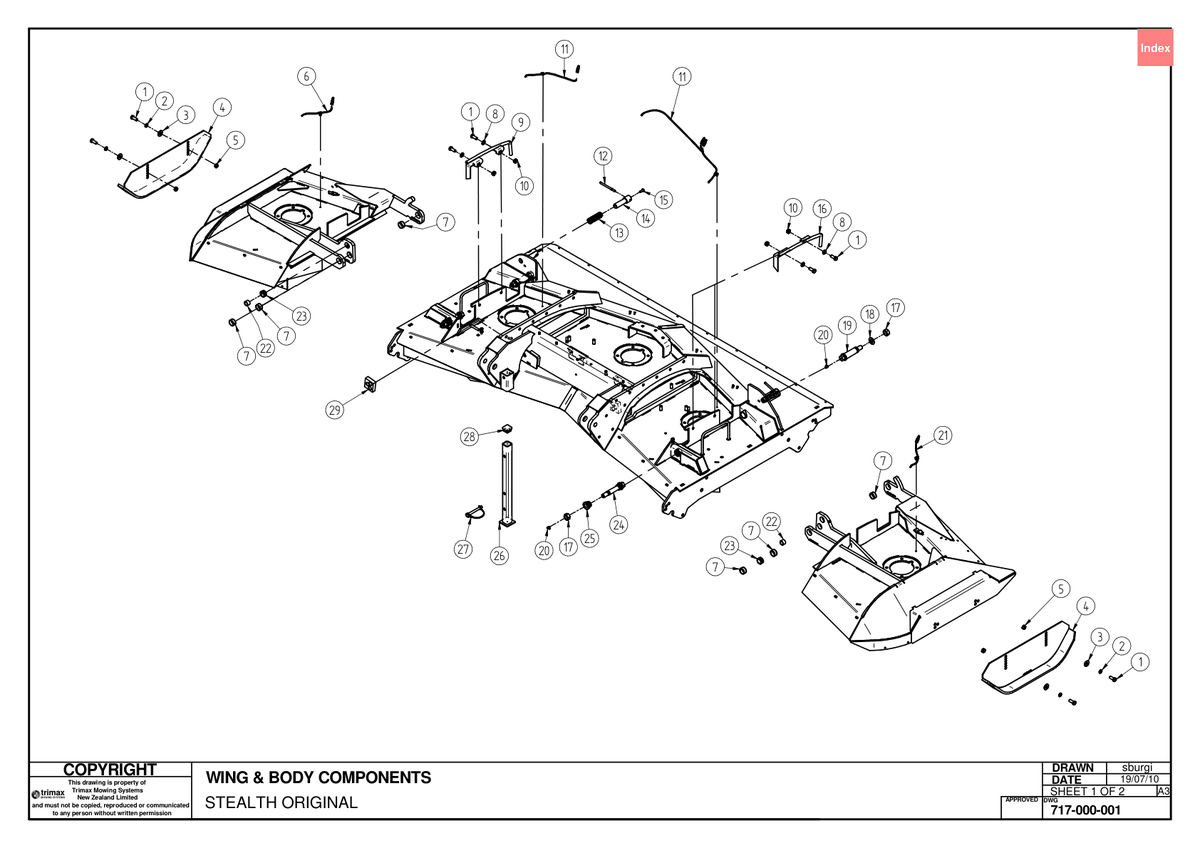

717 - Stealth Original 340 - Mower Body and Wing Components

Stealth Original 340

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
2	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
3	Washer - Heavy Flat 308-120-063 More Info >	£0.33
4	Skid Weldment - Rear Mount ��6" Rollers ST 412-320-112 More Info >	£133.60
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
6	Tube - Grease Line No. 11 ��3/16"OD 903-007-031 More Info >	£3.64
7	Hinge Bush 402-000-016 More Info >	£11.50
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
9	Cover/Belt Support Weldment RH 417-000-718 More Info >	Price on Request
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
12	Unlocking Lever 419-000-027 More Info >	Price on Request
13	Spring - Compression 207-000-005 More Info >	Price on Request
14	Unlocking Pin 419-000-028 More Info >	Price on Request
15	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	£0.58
16	Cover/Belt Support Weldment LH 417-000-719 More Info >	Price on Request
17	Nut - Plain 307-220-013 More Info >	£1.27
18	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
19	Wing Hinge Bolt - Single Grease Groove 419-000-017 More Info >	£86.47
20	Grease Nipple - Trimax Specification 208-442-650 More Info >	£2.54
22	Bush - Inner Ring 401-021-860 More Info >	£22.50
23	Bush 402-061-050 More Info >	£16.95
24	Wing Hinge Bolt - Dual Grease Groove 419-000-016 More Info >	£89.21
25	Top Hat Bush - Wing Hinge 419-000-018 More Info >	£53.90
26	Support Leg Assembly 413-480-661 More Info >	Price on Request
27	Pin 406-346-410 More Info >	£6.29
28	Cap - Tube Insert Square 209-480-661 More Info >	£4.66
