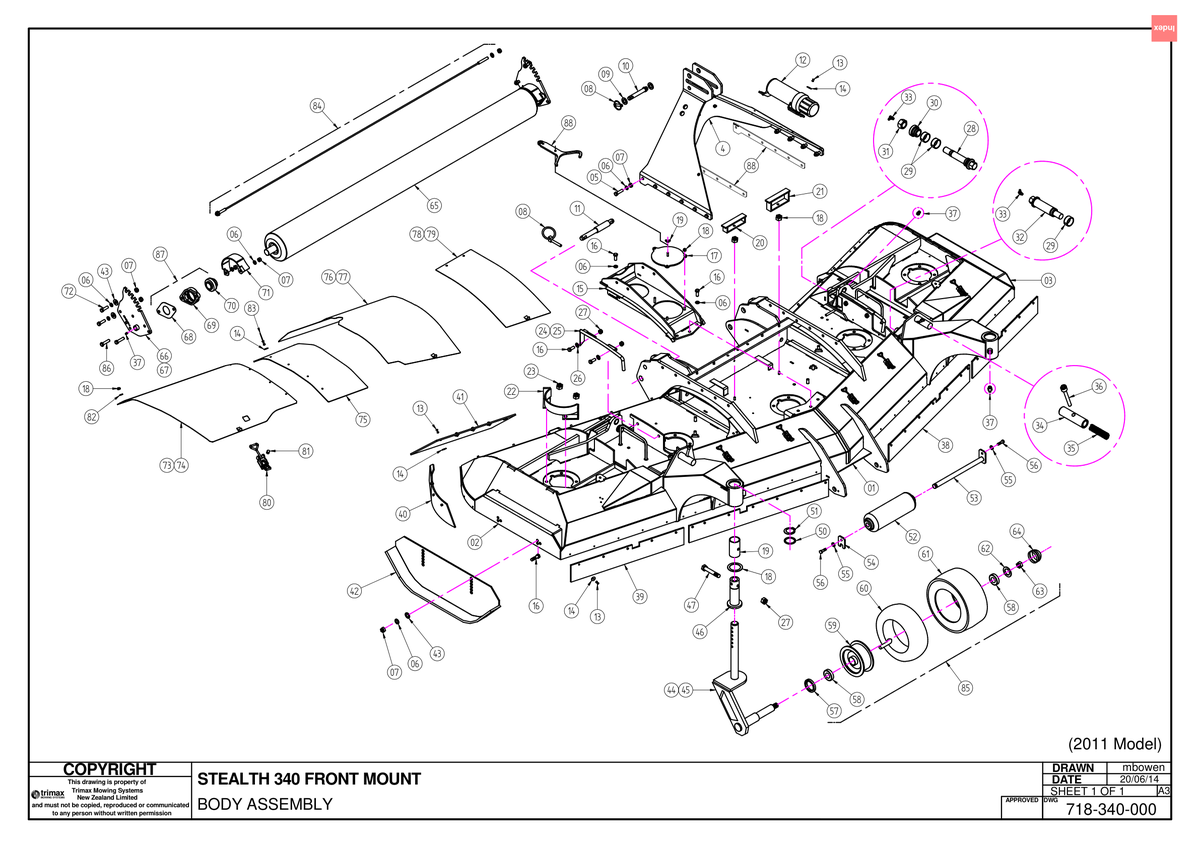

718 - Stealth Original FM 340 - Body Assembly

Stealth Original FM 340

Grouped product items
No. Image Product Name Price Quantity
4 Headstock Weldment [413-000-060] Headstock Weldment 413-000-060
Price on Request
5 Bolt - Hex Head - M12 x 50 - Trimax Specification [301-212-503] Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503
£1.74
6 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
£0.33
7 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
£0.80
8 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
£1.01
9 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
£0.64
10 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
£7.60
11 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
£17.85
12 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
£31.95
13 Blind Rivet [213-000-004] Blind Rivet 213-000-004
£0.47
14 Washer - Fender [108-031-413] Washer - Fender 108-031-413
£0.33
15 Gearbox Mount Weldment - Stealth FM/Original [417-000-708] Gearbox Mount Weldment - Stealth FM/Original 417-000-708
£642.45
17 Pulley Cover Weldment [417-000-893] Pulley Cover Weldment 417-000-893
Price on Request
18 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
£0.43
19 Nut - Wing [307-208-263] Nut - Wing 307-208-263
Price on Request
23 Nut - Half [307-212-023] Nut - Half 307-212-023
£1.01
24 Cover/Belt Support Weldment RH [417-000-718] Cover/Belt Support Weldment RH 417-000-718
Price on Request
25 Cover/Belt Support Weldment LH [417-000-719] Cover/Belt Support Weldment LH 417-000-719
Price on Request
26 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
£0.33
27 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
£0.53
28 Wing Hinge Bolt - Dual Grease Groove [419-000-016] Wing Hinge Bolt - Dual Grease Groove 419-000-016
£89.21
29 Hinge Bush [402-000-016] Hinge Bush 402-000-016
£11.50
30 Top Hat Bush - Wing Hinge [419-000-018] Top Hat Bush - Wing Hinge 419-000-018
£53.90
31 Nut - Plain [307-220-013] Nut - Plain 307-220-013
£1.27
32 Wing Hinge Bolt - Single Grease Groove [419-000-017] Wing Hinge Bolt - Single Grease Groove 419-000-017
£86.47
33 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
£2.54
34 Unlocking Pin - Wing [419-000-029] Unlocking Pin - Wing 419-000-029
£60.28
35 Spring - Compression [207-000-007] Spring - Compression 207-000-007
£11.46
36 Cap Screw [303-210-653] Cap Screw 303-210-653
£1.56
37 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
£1.96
38 Flap [410-332-013] Flap 410-332-013
£33.53
39 Flap [410-332-002] Flap 410-332-002
£24.97
40 Rear Wing Safety Flap [410-000-197] Rear Wing Safety Flap 410-000-197
£102.94
41 Rear Wing Rubber Safety Flap [410-000-196] Rear Wing Rubber Safety Flap 410-000-196
£96.34
42 Wing Skid Weldment - Stealth FM [412-320-113] Wing Skid Weldment - Stealth FM 412-320-113
£236.80
43 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
£0.33
44 Front Castor Weldment - LH [412-320-051] Front Castor Weldment - LH 412-320-051
£306.53
45 Front Castor Weldment - RH [412-320-052] Front Castor Weldment - RH 412-320-052
£306.53
46 Boss - Pivot - Ø52xØ90x177 [402-320-070] Boss - Pivot - Ø52xØ90x177 402-320-070
£219.06
47 Bolt - Hex Head - M12 x 65 - Trimax Specification [301-212-653] Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653
£2.39
48 Washer - Thrust Ø52.2xØ90x5 [402-320-080] Washer - Thrust Ø52.2xØ90x5 402-320-080
£26.67
49 Bush - Pivot [402-320-060] Bush - Pivot 402-320-060
£107.89
50 Washer - Retaining Ø65xØ52.2x2 [412-320-090] Washer - Retaining Ø65xØ52.2x2 412-320-090
£28.19
51 Circlip/Snap Ring - External [204-820-522] Circlip/Snap Ring - External 204-820-522
£1.56
52 Roller - Front Anti-scalp [414-320-030] Roller - Front Anti-scalp 414-320-030
£271.74
53 Axle - Anti-scalp Roller [419-320-040] Axle - Anti-scalp Roller 419-320-040
£84.99
54 Axle Retainer [419-170-060] Axle Retainer 419-170-060
£5.60
55 Washer - Spring [308-080-043] Washer - Spring 308-080-043
£0.33
56 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
£0.53
57 Seal - Wheel Bearing [422-380-210] Seal - Wheel Bearing 422-380-210
£11.39
58 Bearing - Tapered Roller [401-021-870] Bearing - Tapered Roller 401-021-870
£18.63
59 Wheel Rim [416-449-013] Wheel Rim 416-449-013
Price on Request
60 Tube [416-449-012] Tube 416-449-012
Price on Request
61 Tyre [416-449-011] Tyre 416-449-011
Price on Request
62 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
£0.58
63 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
£1.16
64 Grease Cap - Wheel [416-449-015] Grease Cap - Wheel 416-449-015
£12.78
65 Roller Weldment - Centre Body [414-000-046] Roller Weldment - Centre Body 414-000-046
£501.14
66 Quadrant Weldment - RH Front - Stealth FM/Original [412-000-170] Quadrant Weldment - RH Front - Stealth FM/Original 412-000-170
£116.50
67 Quadrant Weldment - LH Front - Stealth FM/Original [412-000-171] Quadrant Weldment - LH Front - Stealth FM/Original 412-000-171
£110.22
68 Gasket - Paper - Roller Bearing Housing [401-020-802] Gasket - Paper - Roller Bearing Housing 401-020-802
£3.38
69 Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification [401-020-801] Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification 401-020-801
£59.28
70 Roller Bearing Assembly - Trimax Specification [401-020-701] Roller Bearing Assembly - Trimax Specification 401-020-701
£50.83
71 Bearing Protector [410-000-201] Bearing Protector 410-000-201
£59.33
72 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
£1.54
73 Cover [410-000-141] Cover 410-000-141
£186.81
74 Cover [410-000-140] Cover 410-000-140
£186.81
75 Filler Rubber [410-330-375] Filler Rubber 410-330-375
£41.76
76 Cover [410-000-138] Cover 410-000-138
£192.19
77 Cover [410-000-139] Cover 410-000-139
£192.19
78 Cover [410-000-136] Cover 410-000-136
£89.26
79 Cover [410-000-137] Cover 410-000-137
£89.26
80 Adjustable Catch - Covers [423-080-220] Adjustable Catch - Covers 423-080-220
£13.05
81 Blind Rivet [213-443-250] Blind Rivet 213-443-250
£0.28
82 Washer - Flat [308-080-016] Washer - Flat 308-080-016
£0.33
83 Blind Rivet [213-443-210] Blind Rivet 213-443-210
Price on Request
84 Roller Scraper [404-320-127] Roller Scraper 404-320-127
£41.50
85 Wheel Assembly [416-449-010] Wheel Assembly 416-449-010
£183.01
88 Headstock Spacer [417-001-035] Headstock Spacer 417-001-035
Price on Request
