Parts Shop

Request Price

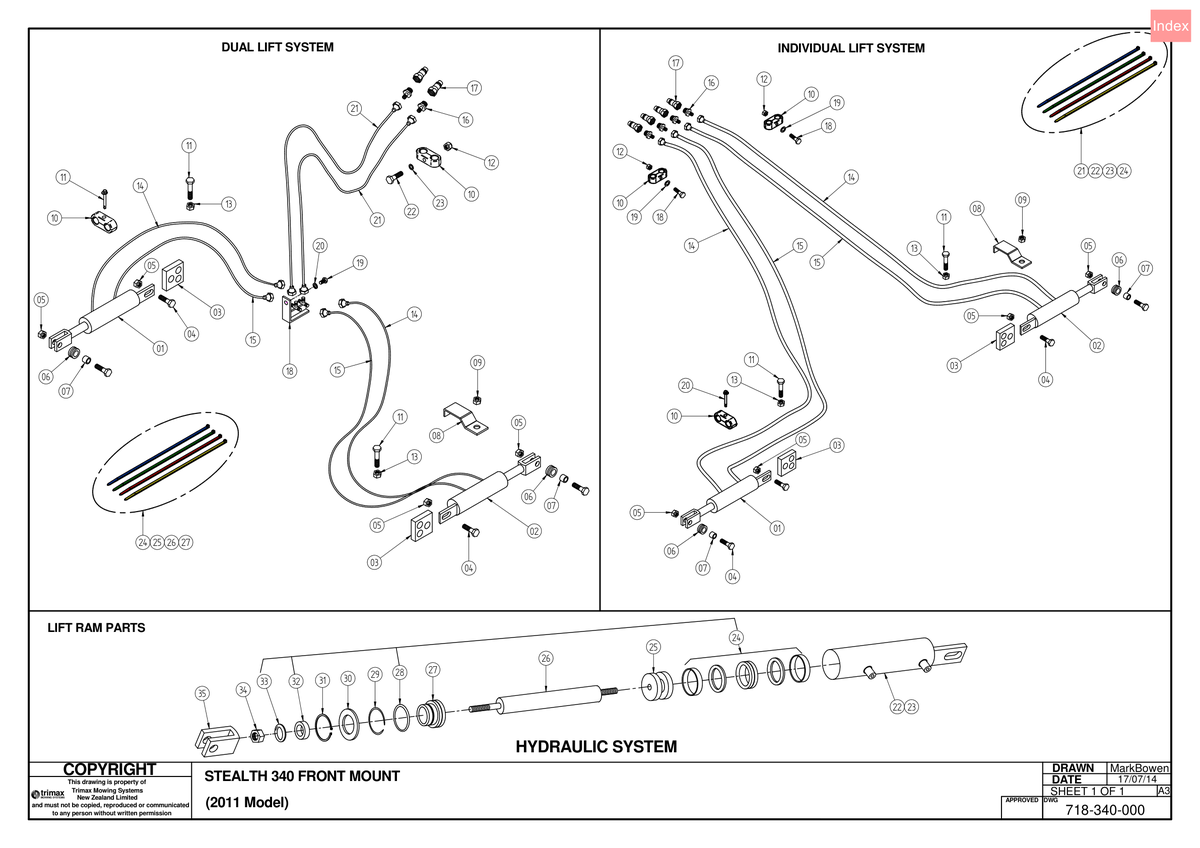

718 - Stealth Original FM 340 - Dual Lift System

Stealth Original FM 340

Grouped product items
No. Image Product Name Price Quantity
1 Lift Ram Assembly [409-448-003] Lift Ram Assembly 409-448-003
£499.14
2 Lift Ram Assembly [409-448-004] Lift Ram Assembly 409-448-004
£499.14
4 Bolt [305-220-803] Bolt 305-220-803
£11.41
5 Nut - Plain [307-220-013] Nut - Plain 307-220-013
£1.27
6 Bush [402-061-100] Bush 402-061-100
£22.60
7 Bush - Inner Ring [401-021-860] Bush - Inner Ring 401-021-860
£22.50
8 Hose Retainer RH [417-448-020] Hose Retainer RH 417-448-020
£1.50
9 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
£0.80
10 Clamp [408-448-030] Clamp 408-448-030
£1.70
11 Bolt [301-208-403] Bolt 301-208-403
£1.01
12 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
£0.53
13 Nut - Plain [307-208-013] Nut - Plain 307-208-013
£0.33
14 Hose Assembly [409-000-036] Hose Assembly 409-000-036
£44.10
15 Hose Assembly [409-000-035] Hose Assembly 409-000-035
£54.11
16 Nipple [408-448-280] Nipple 408-448-280
£12.25
17 Coupling [408-447-580] Coupling 408-447-580
£19.48
19 Bolt [301-208-163] Bolt 301-208-163
£0.53
20 Washer - Spring [308-080-043] Washer - Spring 308-080-043
£0.33
21 Hose Assembly [409-448-270] Hose Assembly 409-448-270
£66.62
22 Bolt [301-206-403] Bolt 301-206-403
£0.58
23 Washer - Flat [308-060-013] Washer - Flat 308-060-013
£0.27
24 Cable Tie - 200x4.8mm - Blue [210-900-015] Cable Tie - 200x4.8mm - Blue 210-900-015
Price on Request
25 Cable Tie - 200x4.8mm - Green [210-900-016] Cable Tie - 200x4.8mm - Green 210-900-016
Price on Request
26 Cable tie [210-900-017] Cable tie 210-900-017
Price on Request
27 Cable tie [210-900-018] Cable tie 210-900-018
Price on Request
