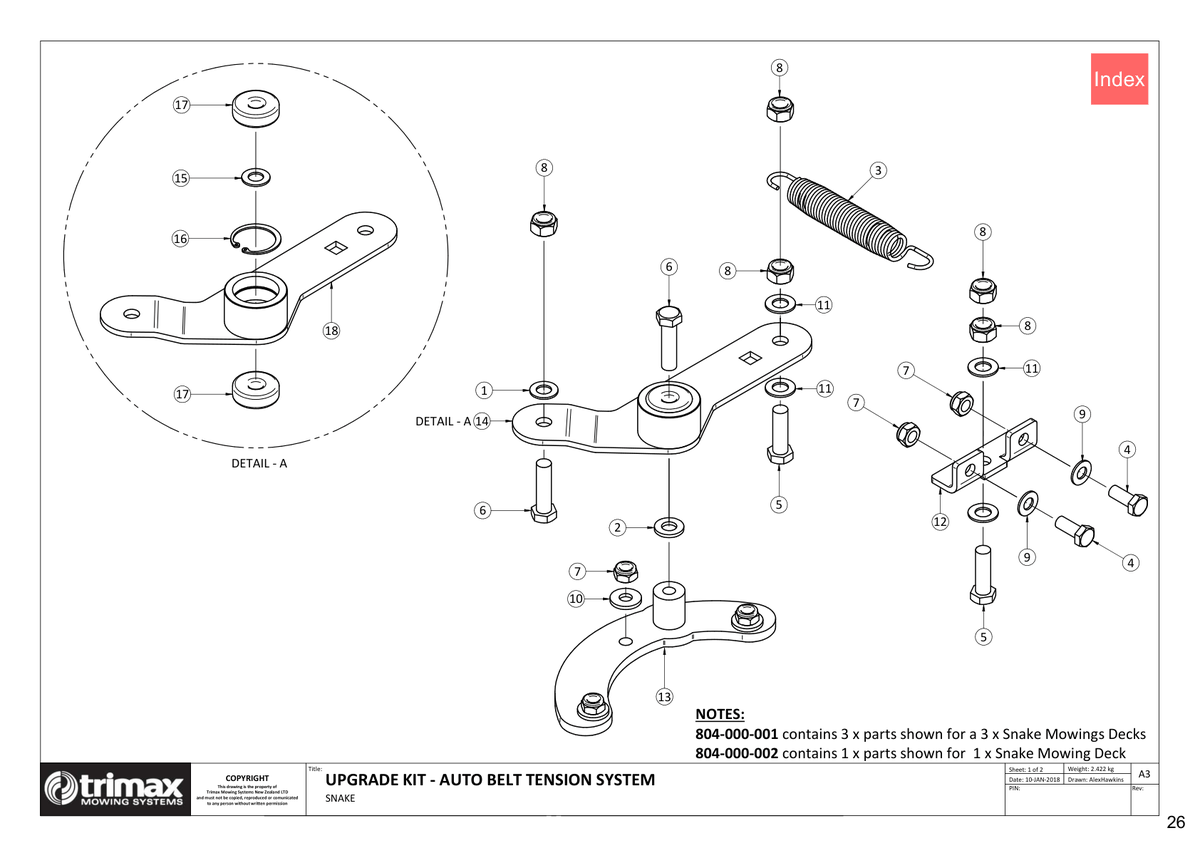

721 - Snake S1 - Auto Belt Tension Kit

Snake S1 320

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-071-413 More Info >	£1.22
2	Washer - Hardened 108-071-513 More Info >	£1.69
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	£12.42
4	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	£0.80
5	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	£1.54
6	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	£1.64
7	Nut - Nyloc 307-210-053 More Info >	£0.53
8	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
9	Washer - Flat 308-100-013 More Info >	£0.33
10	Washer - Heavy Flat 308-100-063 More Info >	£0.33
11	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
13	Base Weldment - Idler Arm 403-000-101 More Info >	£45.14
14	Idler Arm Assembly - Arm + Bearing 403-000-103 More Info >	£139.04
16	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
17	Bearing - Trimax Specification - 401-021-900 More Info >	£10.30
18	Arm Weldment - Idler Arm 403-000-102 More Info >	£92.70
