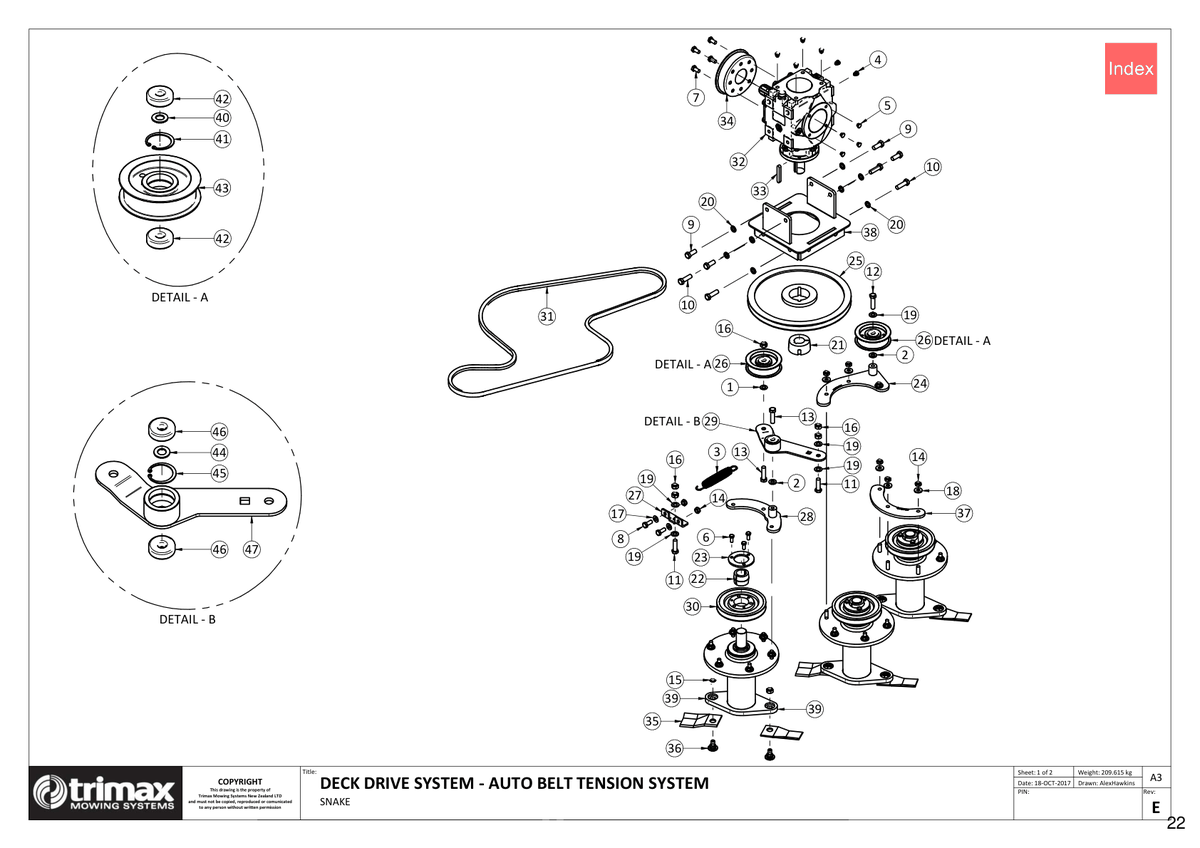

721 - Snake S1 - Deck Ato Belt Drive System

Snake S1 320

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-071-413 More Info >	£1.22
2	Washer - Hardened 108-071-513 More Info >	£1.69
3	Spring - Tension 207-000-009 More Info >	£12.42
4	Blanking Plug 209-900-012 More Info >	£0.91
5	Blanking Plug 209-900-014 More Info >	£2.59
6	Bolt 301-208-203 More Info >	£0.58
7	Bolt 301-210-203 More Info >	£0.58
8	Bolt 301-210-303 More Info >	£0.80
9	Bolt 301-212-303 More Info >	£1.27
10	Bolt 301-212-403 More Info >	£1.54
12	Bolt 301-212-453 More Info >	£1.64
14	Nut - Nyloc 307-210-053 More Info >	£0.53
15	Nut - Nyloc 307-212-053 More Info >	£0.53
17	Washer - Flat 308-100-013 More Info >	£0.33
18	Washer - Heavy Flat 308-100-063 More Info >	£0.33
19	Washer - Flat 308-120-013 More Info >	£0.33
20	Washer - Spring 308-120-043 More Info >	£0.33
21	Bush 402-000-083 More Info >	£16.32
22	Bush 402-060-320 More Info >	£20.19
23	Retainer Ring 402-060-450 More Info >	£6.66
24	Idler Tower 403-000-076 More Info >	£55.89
25	Pulley 403-000-081 More Info >	£146.90
26	Pulley Assembly 403-000-091 More Info >	£77.63
28	Base Weldment - Idler Arm 403-000-101 More Info >	£45.14
29	Idler Arm Assembly - Arm + Bearing 403-000-103 More Info >	£139.04
30	Pulley 403-360-300 More Info >	£35.19
31	Vee Belt 404-040-962 More Info >	£42.13
32	Gearbox 405-000-015 More Info >	£584.56
33	Key - Gearbox 405-207-154 More Info >	£7.97
34	Mounting Plate 410-000-258 More Info >	£28.08
35	Blades - Lazerbladez - Uplift 411-160-842 More Info >	£9.08
36	Blade Bolt - Lazer and Nexablades - With Nyloc Nut - Blade Mounting 411-322-050 More Info >	£6.22
37	Plate 417-001-002 More Info >	£34.84
38	Gearbox Mount Weldment - Deck Assembly 417-001-016 More Info >	£217.75
39	Spindle Assembly - Snake S2 504-000-098 More Info >	£622.13
41	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
42	Bearing 401-021-900 More Info >	£10.30
47	Arm Weldment - Idler Arm 403-000-102 More Info >	£92.70
