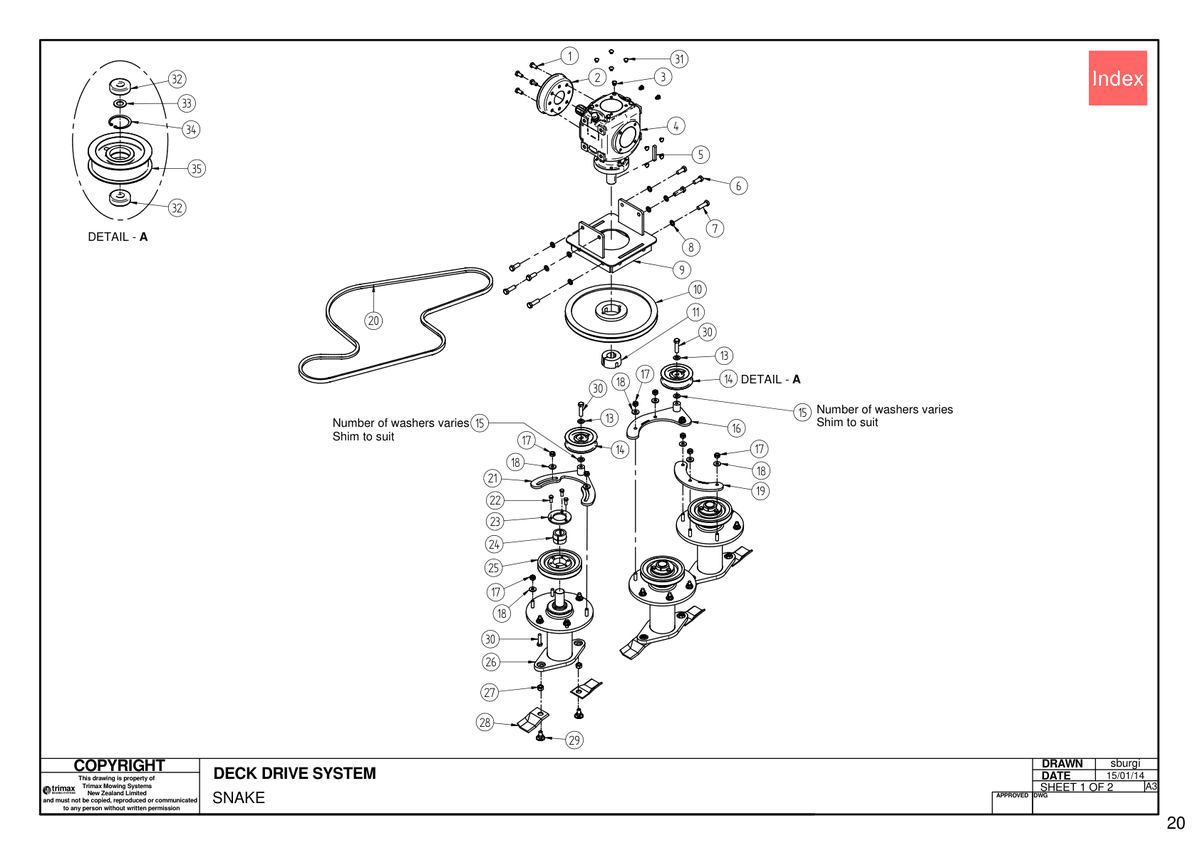

721 - Snake S1 - Deck Drive System

Snake S1 320

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	£0.58
2	Mounting Plate 410-000-258 More Info >	£28.08
3	Blanking Plug - M12 209-900-012 More Info >	£0.91
4	Gearbox 405-000-015 More Info >	£584.56
5	Key - Gearbox 405-207-154 More Info >	£7.97
6	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
7	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	£1.54
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
9	Gearbox Mount Weldment - Deck Assembly 417-001-016 More Info >	£217.75
10	Pulley 403-000-081 More Info >	£146.90
11	Bush 402-000-083 More Info >	£16.32
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
14	Pulley Assembly 403-000-091 More Info >	£77.63
15	Washer - Hardened 108-071-513 More Info >	£1.69
16	Idler Tower 403-000-076 More Info >	£55.89
17	Nut - Nyloc 307-210-053 More Info >	£0.53
18	Washer - Heavy Flat 308-100-063 More Info >	£0.33
19	Plate 417-001-002 More Info >	£34.84
20	Vee Belt - Trimax Specification 404-040-962 More Info >	£42.13
21	Idler Tower Assembly 403-000-075 More Info >	£57.70
22	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	£0.58
23	Retainer Ring 402-060-450 More Info >	£6.66
24	Bush 402-060-320 More Info >	£20.19
25	Pulley 403-360-300 More Info >	£35.19
26	Spindle Assembly - Snake S2 504-000-098 More Info >	£622.13
27	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
28	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	£9.08
29	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	£6.22
30	Set Screw 313-210-403 More Info >	£1.64
30	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	£1.64
31	Blanking Plug 209-900-014 More Info >	£2.59
32	Bearing - Trimax Specification - 401-021-900 More Info >	£10.30
33	Washer - Flat 108-071-413 More Info >	£1.22
34	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
35	Pulley - Back Tensioned 403-000-089 More Info >	£51.48
