NOTES:

Part #	Number on image	Usage Notes
418-000-001	26	Use as required Use as required

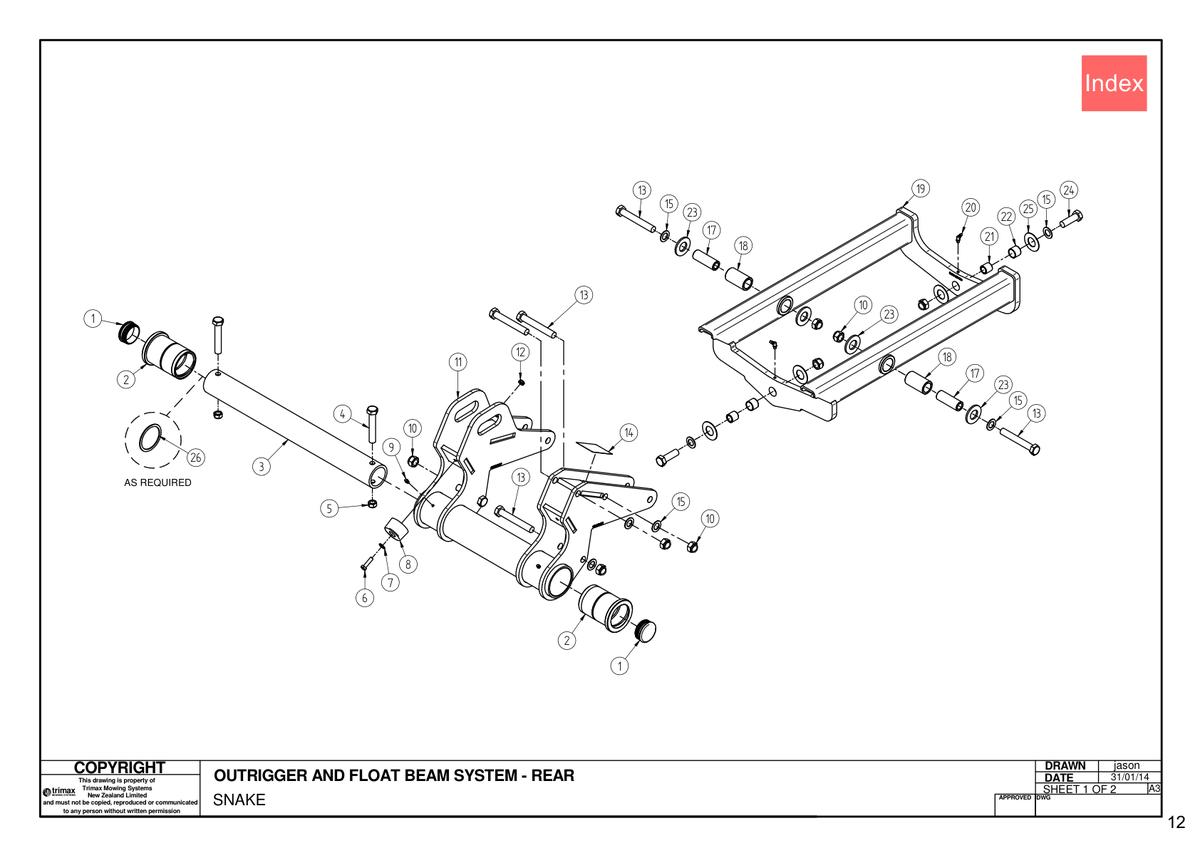

721 - Snake S1 - Outrigger and Float Beam System - Rear

Snake S1 320

Grouped product items
No.	Product Name	Price
1	End Cap - Hinge Tube End Insert 450-000-119 More Info >	£4.76
2	Bush 402-840-260 More Info >	£96.34
3	Pin - Outrigger Hinge - Side/Rear 419-000-037 More Info >	£92.75
4	Bolt - Hex Head - M16 x 90 - Trimax Specification 301-216-903 More Info >	£3.56
5	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
6	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	£0.78
7	Washer - Flat 308-080-013 More Info >	£0.33
8	Buffer Pad 418-000-537 More Info >	£13.73
9	Grease Nipple - Trimax Specification 208-442-600 More Info >	£1.96
10	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
11	Outrigger Arm Weldment 418-000-516 More Info >	£696.19
12	Nut - Nyloc 307-208-053 More Info >	£0.43
13	Bolt - Hex Head - M16 x 110 - Trimax Specification 301-616-113 More Info >	£4.82
14	Decal - Wear Pad - Rectangle 424-101-816 More Info >	£5.28
15	Washer - Flat 308-160-013 More Info >	£2.06
17	Sleeve 402-840-580 More Info >	£18.48
18	Bush 402-000-079 More Info >	£36.22
20	Grease Nipple - Trimax Specification 208-442-620 More Info >	£2.07
21	Float Beam Bush 402-000-059 More Info >	£24.84
22	Float Beam Bush 402-000-020 More Info >	£6.97
23	Thrust Washer 402-000-080 More Info >	£13.47
24	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	£2.80
25	Washer - Nylon Thrust Washer - Trimax Specification 402-000-088 More Info >	£7.24
26	Shim i See notes section for usage notes on this part 418-000-001 More Info >	£21.33
