NOTES:

Part #	Number on image	Usage Notes
402-000-078	23	Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 721-320-200-1045855 GB: 721-320-200-3002019 USA: 621-320-200-2000538 For Biloc pulley and bush part numbers please look up Deck drive System - 120 listing
403-000-083	27	Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 721-320-200-1045855 GB: 721-320-200-3002019 USA: 621-320-200-2000538 For Biloc pulley and bush part numbers please look up Deck drive System - 120 listing

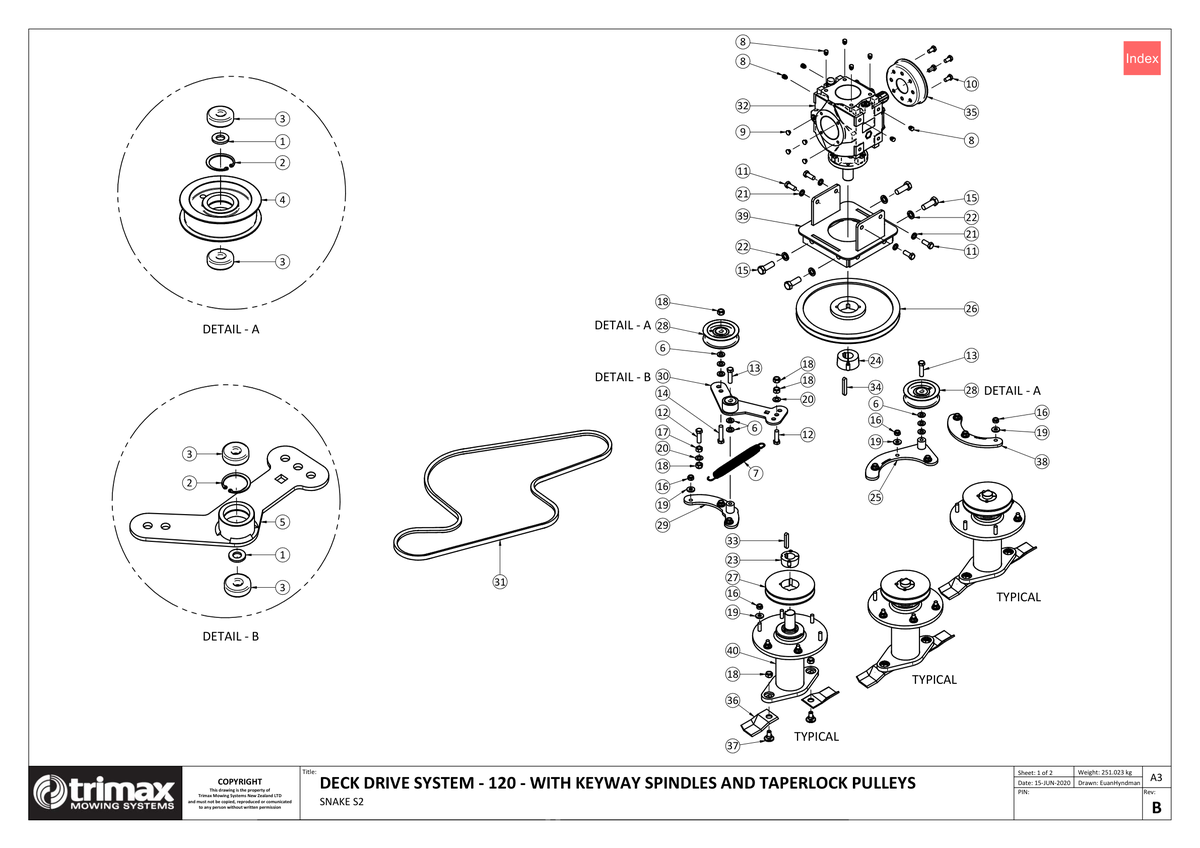

721 - Snake S2 - Deck Drive System - 120 - Taper Lock Pulley System

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
3	Bearing 401-021-900 More Info >	£10.30
5	Arm Weldment - Idler Arm 403-000-102 More Info >	£92.70
7	Spring - Tension 207-000-009 More Info >	£12.42
8	Blanking Plug 209-900-012 More Info >	£0.91
9	Blanking Plug 209-900-014 More Info >	£2.59
10	Bolt 301-210-203 More Info >	£0.58
11	Bolt 301-212-303 More Info >	£1.27
12	Bolt 301-212-403 More Info >	£1.54
13	Bolt 301-212-453 More Info >	£1.64
14	Bolt 301-212-553 More Info >	£2.27
15	Bolt 301-216-453 More Info >	£3.38
16	Nut - Nyloc 307-210-053 More Info >	£0.53
17	Nut - Plain 307-212-013 More Info >	£0.80
18	Nut - Nyloc 307-212-053 More Info >	£0.53
19	Washer - Heavy Flat 308-100-063 More Info >	£0.33
20	Washer - Flat 308-120-013 More Info >	£0.33
21	Washer - Spring 308-120-043 More Info >	£0.33
22	Washer 308-160-043 More Info >	£0.43
23	Bush - Taper Lock i See notes section for usage notes on this part 402-000-078 More Info >	£13.47
24	Bush 402-000-083 More Info >	£16.32
25	Idler Tower 403-000-076 More Info >	£55.89
26	Pulley 403-000-081 More Info >	£146.90
27	Pulley - Taper Lock i See notes section for usage notes on this part 403-000-083 More Info >	£50.73
28	Pulley Assembly 403-000-091 More Info >	£77.63
29	Base Weldment - Idler Arm 403-000-101 More Info >	£45.14
30	Idler Arm Assembly - Arm + Bearing 403-000-103 More Info >	£139.04
31	Vee Belt 404-040-962 More Info >	£42.13
32	Gearbox 405-000-015 More Info >	£584.56
34	Key - Gearbox 405-207-154 More Info >	£7.97
35	Mounting Plate 410-000-258 More Info >	£28.08
36	Blades - Lazerbladez - Uplift 411-160-842 More Info >	£9.08
37	Blade Bolt - Lazer and Nexablades - With Nyloc Nut - Blade Mounting 411-322-050 More Info >	£6.22
38	Plate 417-001-002 More Info >	£34.84
39	Gearbox Mount Weldment 417-001-364 More Info >	£190.51
40	Spindle Assembly - With Keyway - Snake S2 504-000-168 More Info >	£622.13
