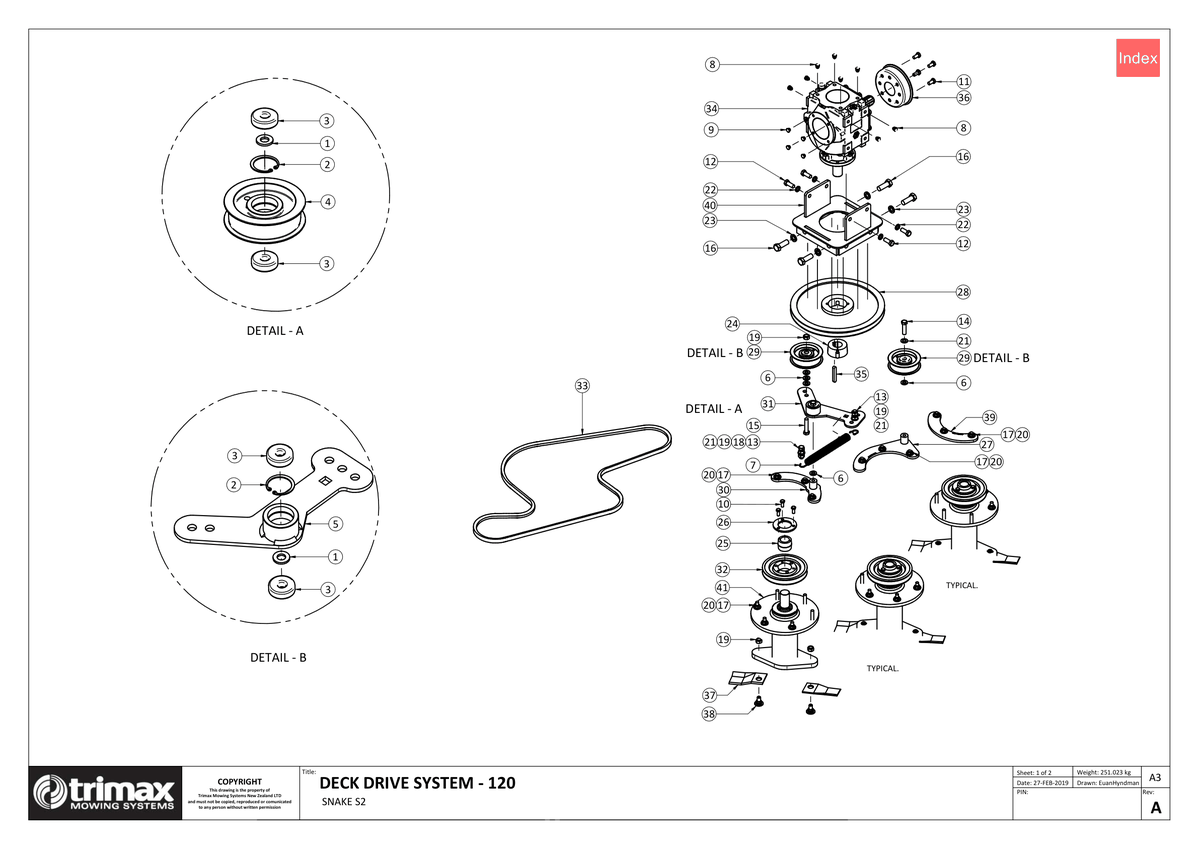

721 - Snake S2 - Deck Drive System - 120

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
3	Bearing 401-021-900 More Info >	£10.30
5	Arm Weldment - Idler Arm 403-000-102 More Info >	£92.70
7	Spring - Tension 207-000-009 More Info >	£12.42
8	Blanking Plug 209-900-012 More Info >	£0.91
9	Blanking Plug 209-900-014 More Info >	£2.59
10	Bolt 301-208-203 More Info >	£0.58
11	Bolt 301-210-203 More Info >	£0.58
12	Bolt 301-212-303 More Info >	£1.27
13	Bolt 301-212-403 More Info >	£1.54
14	Bolt 301-212-453 More Info >	£1.64
15	Bolt 301-212-553 More Info >	£2.27
16	Bolt 301-216-453 More Info >	£3.38
17	Nut - Nyloc 307-210-053 More Info >	£0.53
18	Nut - Plain 307-212-013 More Info >	£0.80
19	Nut - Nyloc 307-212-053 More Info >	£0.53
20	Washer - Heavy Flat 308-100-063 More Info >	£0.33
21	Washer - Flat 308-120-013 More Info >	£0.33
22	Washer - Spring 308-120-043 More Info >	£0.33
23	Washer 308-160-043 More Info >	£0.43
24	Bush 402-000-083 More Info >	£16.32
25	Bush 402-060-320 More Info >	£20.19
26	Retainer Ring 402-060-450 More Info >	£6.66
27	Idler Tower 403-000-076 More Info >	£55.89
28	Pulley 403-000-081 More Info >	£146.90
29	Pulley Assembly 403-000-091 More Info >	£77.63
30	Base Weldment - Idler Arm 403-000-101 More Info >	£45.14
31	Idler Arm Assembly - Arm + Bearing 403-000-103 More Info >	£139.04
32	Pulley 403-360-300 More Info >	£35.19
33	Vee Belt 404-040-962 More Info >	£42.13
34	Gearbox 405-000-015 More Info >	£584.56
35	Key - Gearbox 405-207-154 More Info >	£7.97
36	Mounting Plate 410-000-258 More Info >	£28.08
37	Blades - Lazerbladez - Uplift 411-160-842 More Info >	£9.08
38	Blade Bolt - Lazer and Nexablades - With Nyloc Nut - Blade Mounting 411-322-050 More Info >	£6.22
39	Plate 417-001-002 More Info >	£34.84
40	Gearbox Mount Weldment 417-001-364 More Info >	£190.51
41	Spindle Assembly - Snake S2 504-000-098 More Info >	£622.13
