NOTES:

Part # Number on image Usage Notes
402-000-078 23
  • Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
402-000-083 24
  • Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
402-000-090 25
  • Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
403-000-081 27
  • Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
403-000-083 28
  • Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
403-361-140 33
  • Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing

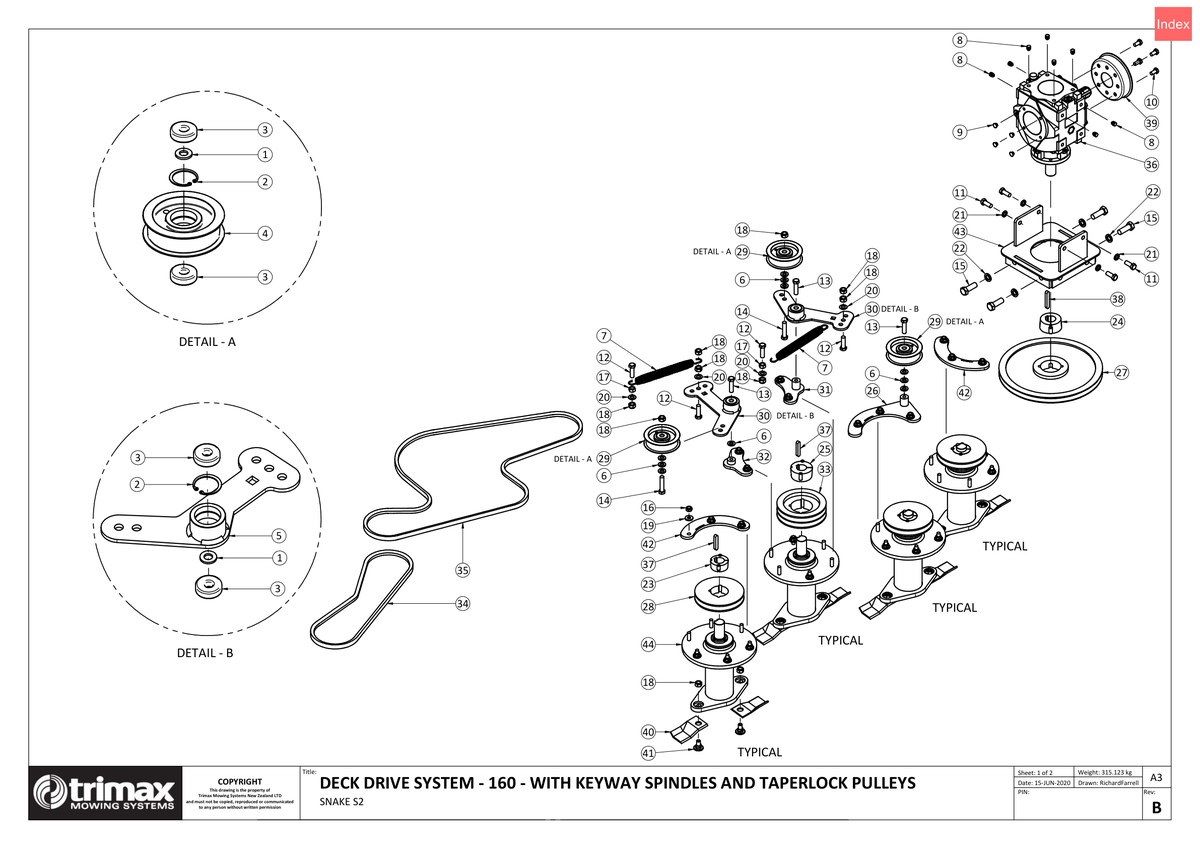

721 - Snake S2 - Deck Drive System - 160 - Taper Lock Pulley System

Snake S2 320, Snake S2 400

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
£1.69
2 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
£1.40
3 Bearing [401-021-900] Bearing 401-021-900
£10.30
5 Arm Weldment - Idler Arm [403-000-102] Arm Weldment - Idler Arm 403-000-102
£92.70
7 Spring - Tension [207-000-009] Spring - Tension 207-000-009
£12.42
8 Blanking Plug [209-900-012] Blanking Plug 209-900-012
£0.91
9 Blanking Plug [209-900-014] Blanking Plug 209-900-014
£2.59
10 Bolt [301-210-203] Bolt 301-210-203
£0.58
11 Bolt [301-212-303] Bolt 301-212-303
£1.27
12 Bolt [301-212-403] Bolt 301-212-403
£1.54
13 Bolt [301-212-453] Bolt 301-212-453
£1.64
14 Bolt [301-212-553] Bolt 301-212-553
£2.27
15 Bolt [301-216-453] Bolt 301-216-453
£3.38
16 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
£0.53
17 Nut - Plain [307-212-013] Nut - Plain 307-212-013
£0.80
18 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
£0.53
19 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
£0.33
20 Washer - Flat [308-120-013] Washer - Flat 308-120-013
£0.33
21 Washer - Spring [308-120-043] Washer - Spring 308-120-043
£0.33
22 Washer [308-160-043] Washer 308-160-043
£0.43
23 Bush - Taper Lock [402-000-078] Bush - Taper Lock i See notes section for usage notes on this part 402-000-078
£13.47
24 Bush [402-000-083] Bush i See notes section for usage notes on this part 402-000-083
£16.32
25 Bush - Taper Lock [402-000-090] Bush - Taper Lock i See notes section for usage notes on this part 402-000-090
£17.22
26 Idler Tower [403-000-076] Idler Tower 403-000-076
£55.89
27 Pulley [403-000-081] Pulley i See notes section for usage notes on this part 403-000-081
£146.90
28 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock i See notes section for usage notes on this part 403-000-083
£50.73
29 Pulley Assembly [403-000-091] Pulley Assembly 403-000-091
£77.63
30 Idler Arm Assembly - Arm + Bearing [403-000-103] Idler Arm Assembly - Arm + Bearing 403-000-103
£139.04
31 Idler Base Weldment - Short [403-000-110] Idler Base Weldment - Short 403-000-110
£45.14
32 Idler Base Weldment - Very Short [403-000-111] Idler Base Weldment - Very Short 403-000-111
£96.87
33 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock i See notes section for usage notes on this part 403-361-140
£53.47
34 Vee Belt [404-040-495] Vee Belt 404-040-495
£28.08
35 Vee Belt [404-040-962] Vee Belt 404-040-962
£42.13
36 Gearbox [405-000-015] Gearbox 405-000-015
£584.56
38 Key - Gearbox [405-207-154] Key - Gearbox 405-207-154
£7.97
39 Mounting Plate [410-000-258] Mounting Plate 410-000-258
£28.08
40 Blades - Lazerbladez - Uplift [411-160-842] Blades - Lazerbladez - Uplift 411-160-842
£9.08
41 Blade Bolt - Lazer and Nexablades - With Nyloc Nut - Blade Mounting [411-322-050] Blade Bolt - Lazer and Nexablades - With Nyloc Nut - Blade Mounting 411-322-050
£6.22
42 Plate [417-001-002] Plate 417-001-002
£34.84
43 Gearbox Mount Weldment [417-001-364] Gearbox Mount Weldment 417-001-364
£190.51
44 Spindle Assembly - With Keyway - Snake S2 [504-000-168] Spindle Assembly - With Keyway - Snake S2 504-000-168
£622.13
