NOTES:

Part #	Number on image	Usage Notes
409-000-086	12	409-000-086 C/W 2 x Grease nipples and 1 x Breather Use part number 408-000-075 for hydraulic cylinder seal kit Use part number 402-000-148 - Bush Hyd Cyl (Hydraulic Ram eye bush) 409-000-086 C/W 2 x Grease nipples and 1 x Breather Use part number 408-000-075 for hydraulic cylinder seal kit Use part number 402-000-148 - Bush Hyd Cyl (Hydraulic Ram eye bush) 409-000-086 C/W 2 x Grease nipples and 1 x Breather Use part number 408-000-075 for hydraulic cylinder seal kit Use part number 402-000-148 - Bush Hyd Cyl (Hydraulic Ram eye bush)

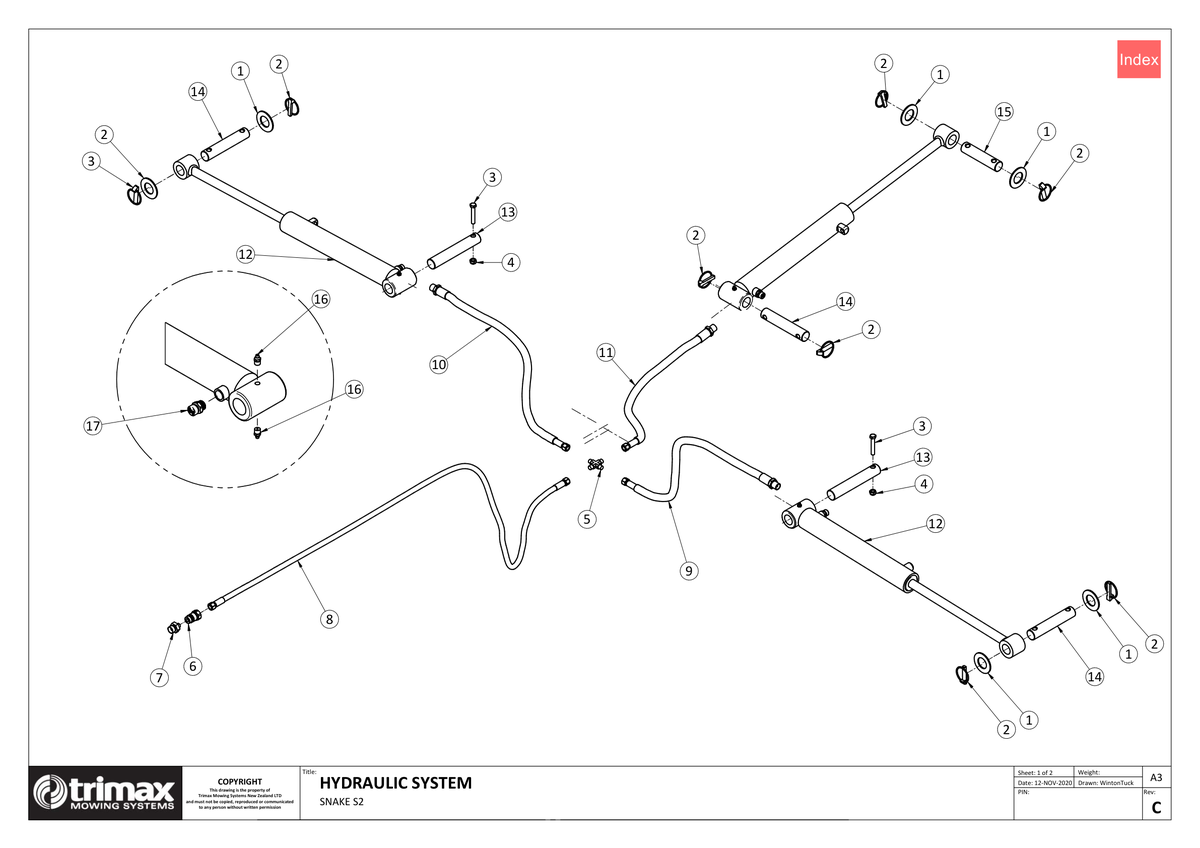

721 - Snake S2 - Hydraulic System

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	£2.00
2	Linch Pin 203-300-700 More Info >	£1.01
3	Bolt 301-210-603 More Info >	£1.35
4	Nut - Nyloc 307-210-053 More Info >	£0.53
5	Cross - Hydraulic 408-000-053 More Info >	£41.71
6	Coupling 408-447-580 More Info >	£19.48
7	Nipple 408-448-280 More Info >	£12.25
8	Hose Assembly - Fron 409-000-059 More Info >	£60.34
9	Hose Assembly 409-000-060 More Info >	£27.25
11	Hose Assembly - Rear 409-000-061 More Info >	£23.71
12	Hydraulic Cylinder - Ø2" x 335 Stroke - Snake i See notes section for usage notes on this part 409-000-086 More Info >	£733.99
13	Pin - Hydraulic Cylinder 419-000-034 More Info >	£17.00
14	Pin - Hydraulic Cylinder 419-000-035 More Info >	£15.94
15	Pin - Hydraulic Cylinder 419-000-039 More Info >	£14.84
16	Grease Nipple 208-442-550 More Info >	£2.80
17	Breather - Capped 3/8" BSP 408-000-083 More Info >	£22.50
