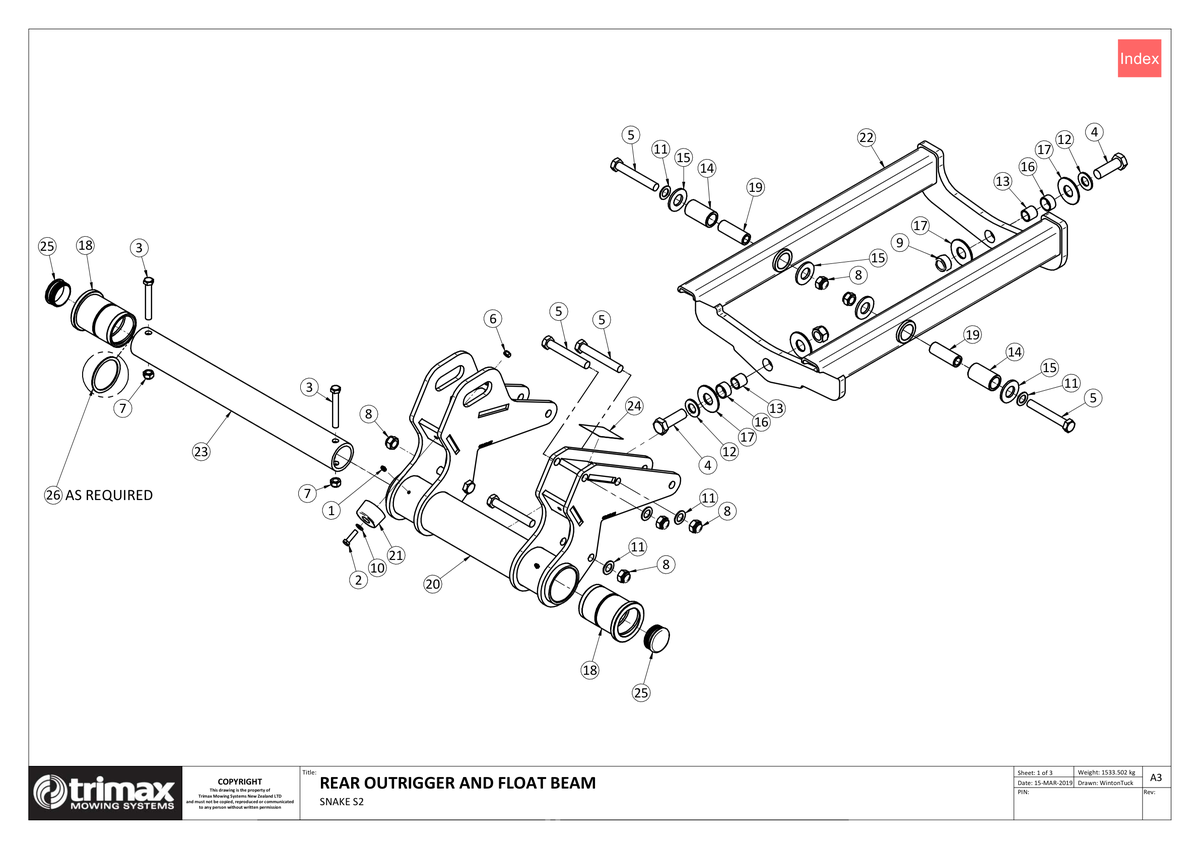

721 - Snake S2 - Rear Outrigger and Float Beam

Snake S2 320, Snake S2 400

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-600] Grease Nipple 208-442-600
£1.96
2 Bolt [301-208-303] Bolt 301-208-303
£0.78
3 Bolt [301-212-903] Bolt 301-212-903
£2.90
4 Bolt [301-220-603] Bolt 301-220-603
£5.18
5 Bolt [301-616-113] Bolt 301-616-113
£4.82
6 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
£0.53
7 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
£0.53
8 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
£1.16
9 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
£1.38
10 Washer - Flat [308-080-016] Washer - Flat 308-080-016
£0.33
11 Washer - Flat [308-160-013] Washer - Flat 308-160-013
£2.06
12 Washer - Flat [308-200-013] Washer - Flat 308-200-013
£0.85
13 Inner Ring - Bearing [401-000-020] Inner Ring - Bearing 401-000-020
£13.42
14 Bush [402-000-079] Bush 402-000-079
£36.22
15 Thrust Washer [402-000-080] Thrust Washer 402-000-080
£13.47
16 Bush - Composite [402-000-093] Bush - Composite 402-000-093
£21.65
17 Thrust Washer [402-000-105] Thrust Washer 402-000-105
£12.25
18 Bush [402-840-260] Bush 402-840-260
£96.34
19 Sleeve [402-840-580] Sleeve 402-840-580
£18.48
20 Outrigger Arm Weldment [418-000-516] Outrigger Arm Weldment 418-000-516
£696.19
21 Buffer Pad [418-000-537] Buffer Pad 418-000-537
£13.73
22 Rear Float Beam Weldment - Snake S2 [418-000-687] Rear Float Beam Weldment - Snake S2 418-000-687
£295.12
23 Pin - Outrigger Hinge - Side/Rear [419-000-037] Pin - Outrigger Hinge - Side/Rear 419-000-037
£92.75
24 Decal - Wear Pad - Rectangle [424-101-816] Decal - Wear Pad - Rectangle 424-101-816
£5.28
25 Cap - Hinge Tube End Insert [450-000-119] Cap - Hinge Tube End Insert 450-000-119
£4.76
26 Shim [418-000-001] Shim 418-000-001
£21.33
