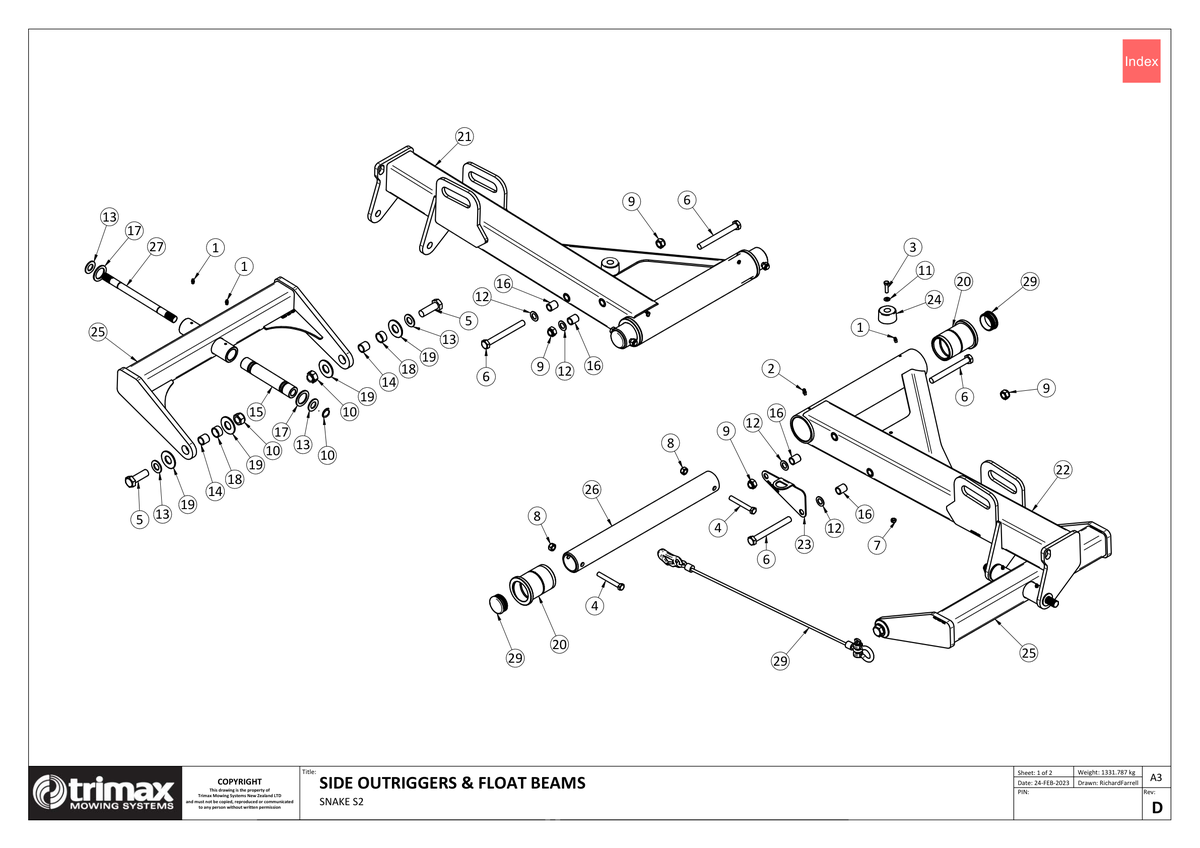

721 - Snake S2 - Side Outriggers and Float Beams

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Grease Nipple - 1/4" Short 208-442-600 More Info >	£1.96
2	Grease Nipple 208-442-620 More Info >	£2.07
3	Bolt 301-208-303 More Info >	£0.78
4	Bolt 301-212-903 More Info >	£2.90
5	Bolt 301-220-603 More Info >	£5.18
6	Bolt 301-616-153 More Info >	£6.13
7	Nut - Nyloc 307-208-056 More Info >	£0.53
8	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
9	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
10	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
11	Washer - Flat 308-080-016 More Info >	£0.33
12	Washer - Flat 308-160-013 More Info >	£2.06
13	Washer - Flat 308-200-013 More Info >	£0.85
14	Inner Ring - Bearing 401-000-020 More Info >	£13.42
15	Sleeve - Pitch Tube 402-000-010 More Info >	£132.87
16	Bush - Lock Inner 402-000-076 More Info >	£22.77
17	Thrust Washer 402-000-081 More Info >	£14.84
18	Bush - Composite Pivot Bush - 25mm 402-000-093 More Info >	£21.65
19	Thrust Washer 402-000-105 More Info >	£12.25
20	Bush 402-840-260 More Info >	£96.34
21	Outrigger Arm Weldment - RH 418-000-514 More Info >	£700.83
22	Outrigger Arm Weldment - LH 418-000-515 More Info >	£700.83
23	Attachment Bracket 418-000-535 More Info >	£16.79
24	Buffer Pad 418-000-537 More Info >	£13.73
25	Side Float Beam Weldment - Snake S2 418-000-688 More Info >	£256.22
26	Pin - Outrigger Hinge - Side/Rear 419-000-037 More Info >	£92.75
27	Pin - Pitch Pivot 419-000-069 More Info >	£52.82
28	End Cap - Hinge Tube End Insert 450-000-119 More Info >	£4.76
29	Safety Rope Assembly 506-000-079 More Info >	£44.02
