NOTES:

Part #	Number on image	Usage Notes
504-000-121	7	Spindle shaft without keyway used on mowers manufactured prior to the above serial number Spindle shaft without keyway used on mowers manufactured prior to the above serial number Spindle shaft without keyway used on mowers manufactured prior to the above serial number

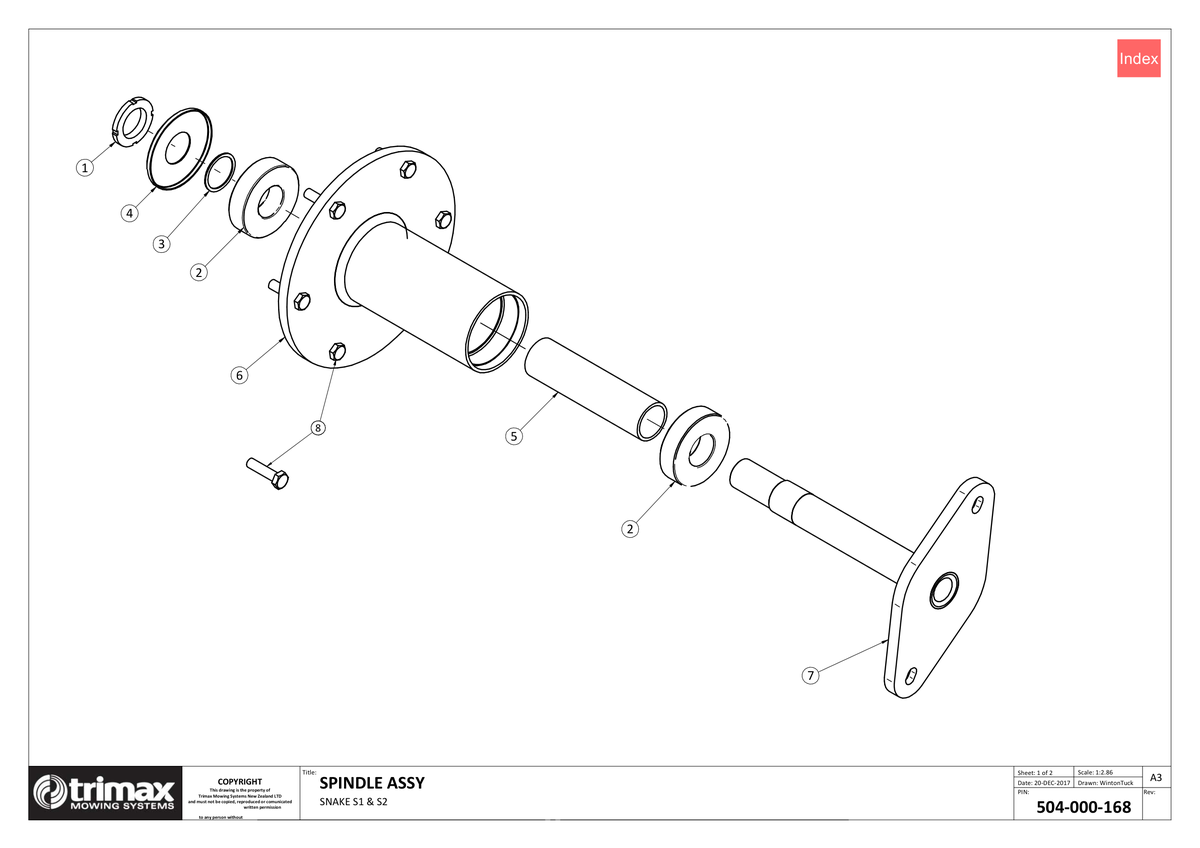

721 - Snake S2 - Spindle Assembly

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
	Spindle Assembly - With Keyway - Snake S2 504-000-168 More Info >	£622.13
1	Lock Nut 401-021-750 More Info >	£8.93
2	Bearing - Trimax Specification - 401-022-780 More Info >	£38.38
3	Shim 407-000-029 More Info >	£6.24
4	Cap - Spindle Type 5a and 6e 407-329-001 More Info >	£9.61
5	Spacer - Spindle 504-000-105 More Info >	£16.46
7	Shaft Weldment - Spindle Snake S2 i See notes section for usage notes on this part 504-000-121 More Info >	£361.74
8	Set Screw 313-210-403 More Info >	£1.64
