NOTES:

Part #	Number on image	Usage Notes
301-220-857	5	Can also use bolt P/N 301-220-853 and apply threadlocker of medium bond strength
412-000-256	17	Height Indicator rods are available in two configurations, Metric & Imperial , order according to mower fitment
412-000-258	17	Height Indicator rods are available in two configurations, Metric & Imperial , order according to mower fitment

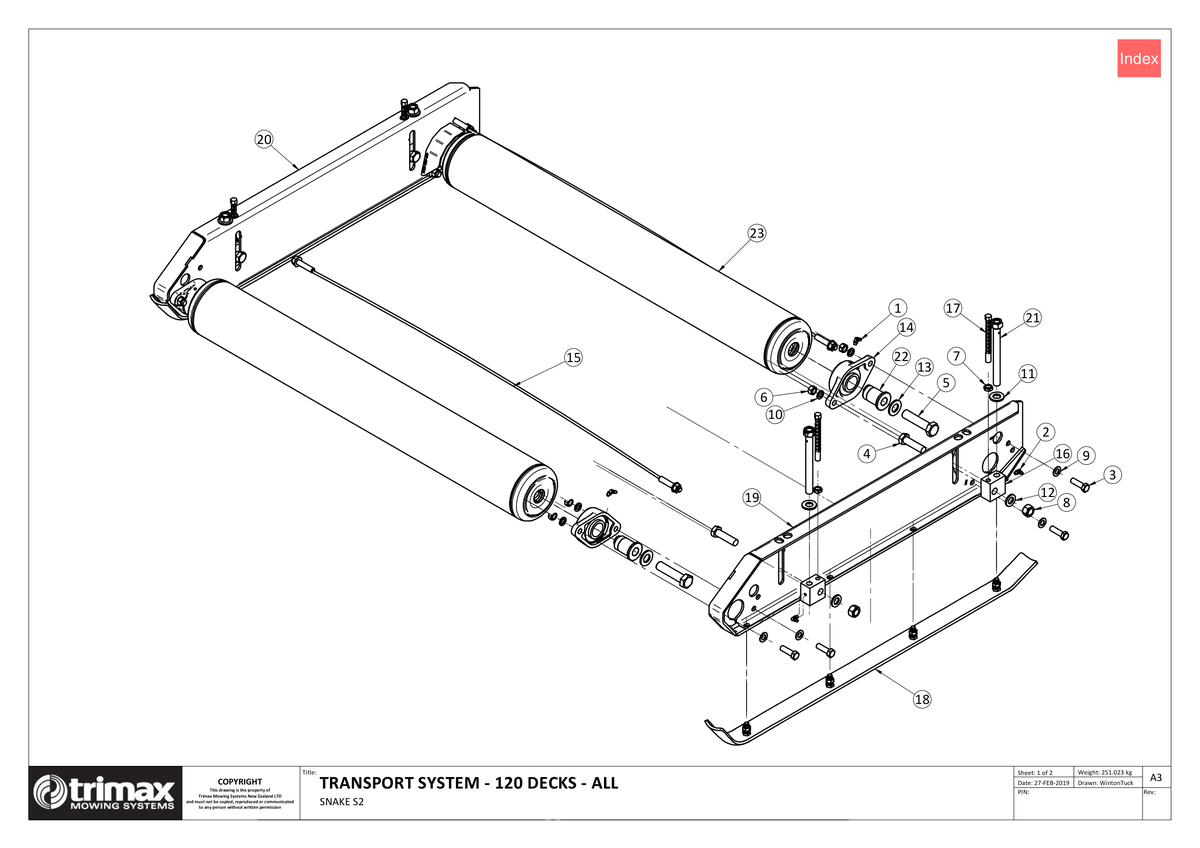

721 - Snake S2 - Transport System - 120 Decks

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-620 More Info >	£2.07
2	Grease Nipple 208-442-650 More Info >	£2.54
3	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
4	Bolt 301-216-603 More Info >	£3.33
5	Bolt i See notes section for usage notes on this part 301-220-857 More Info >	£7.77
6	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
7	Nut - Half 307-212-023 More Info >	£1.01
8	Nut - Plain 307-216-013 More Info >	£1.01
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
10	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
11	Washer - Heavy Flat 308-160-063 More Info >	£0.58
12	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
13	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
14	Roller Bearing Assembly - 1-3/8" x UCFL207 - 401-020-701 More Info >	£50.83
15	Scraper 404-000-057 More Info >	£24.30
16	Height Adjuster Block 412-000-255 More Info >	£42.13
17	Height Indicator - Metric i See notes section for usage notes on this part 412-000-256 More Info >	£28.41
17	Height Indicator - Imperial i See notes section for usage notes on this part 412-000-258 More Info >	£31.04
18	Wear Skid Assembly (incl. M10 Nuts & Washers) 412-000-302 More Info >	£164.44
19	Side Channel Weldment - LocTek - LH 412-000-327 More Info >	£321.22
20	Side Channel Weldment - LocTek - RH 412-000-328 More Info >	£321.22
21	Set Screw 313-616-183 More Info >	£6.55
22	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	£28.51
23	Roller Weldment - LocTek 120 414-000-099 More Info >	£453.33
