NOTES:

Part #	Number on image	Usage Notes
418-844-020	2	NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT. NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT. NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT.
418-000-217	4	New style part numbers quoted. When fitting a new style jack Item 5 needs to be replaced with the appropriate adaptor. New style part numbers quoted. When fitting a new style jack Item 5 needs to be replaced with the appropriate adaptor. New style part numbers quoted. When fitting a new style jack Item 5 needs to be replaced with the appropriate adaptor.
307-216-053	9	NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT. NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT. NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT.
301-616-153	10	NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT. NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT. NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT.
402-060-990	11	NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT. NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT. NOTE: Prior to serial numbers; G2A110, G2D004, G2K025 and G2U009, use the following Draw Bar, PTO Support and mounting hardware - - 418-840-020 DRAW BAR, 418-840-360 PTO SUPPORT, 301-616-113 SHORT BOLT & 301-616-133 LONG BOLT.

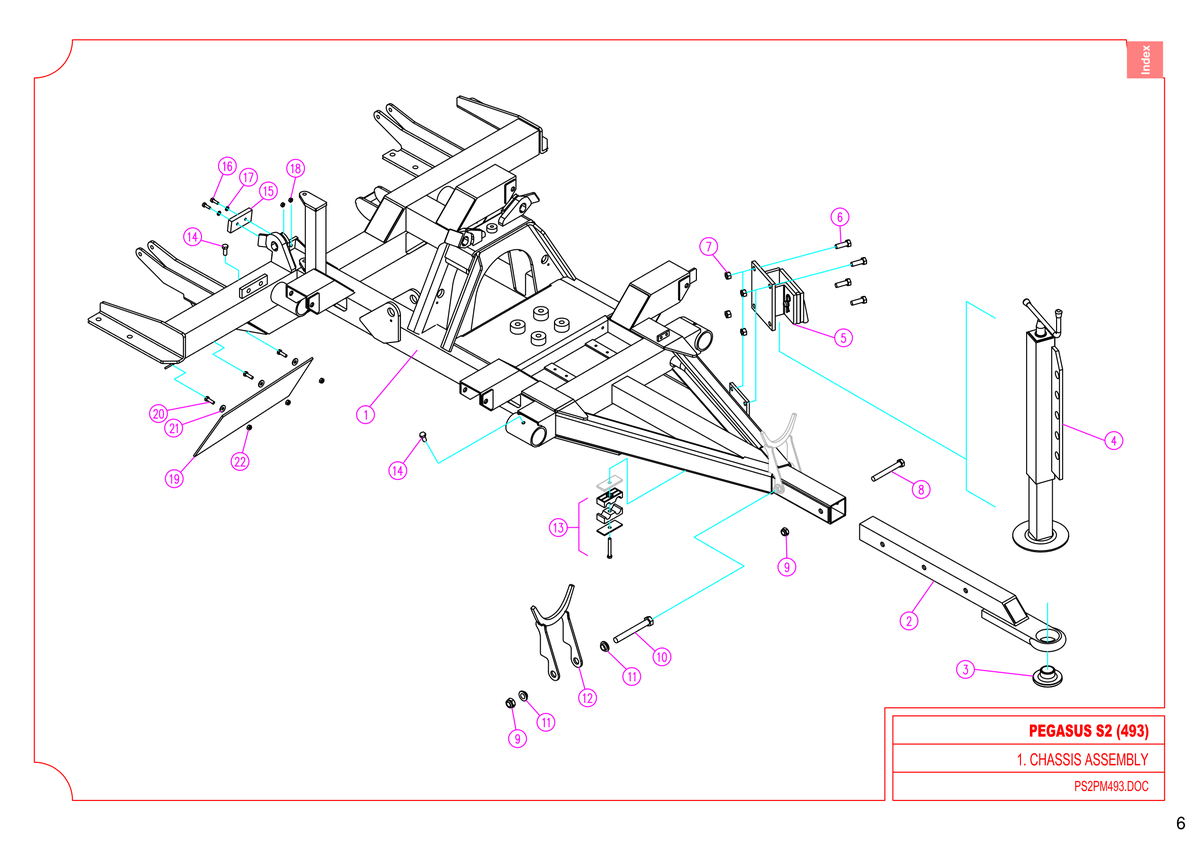

726 - Pegasus S2 - CHASSIS ASSEMBLY

Pegasus S2 493, Pegasus S2 610

Grouped product items
No.	Product Name	Price
2	Drawbar Weldment i See notes section for usage notes on this part 418-844-020 More Info >	£361.91
3	Wear Bush - Tow Eye 402-840-130 More Info >	£40.86
4	Parking Jack Assembly i See notes section for usage notes on this part 418-000-217 More Info >	£280.98
6	Bolt 301-212-353 More Info >	£1.38
7	Nut - Nyloc 307-212-053 More Info >	£0.53
8	Bolt 301-616-133 More Info >	£5.86
9	Nut - Nyloc i See notes section for usage notes on this part 307-216-053 More Info >	£1.16
10	Bolt i See notes section for usage notes on this part 301-616-153 More Info >	£6.13
11	Bush i See notes section for usage notes on this part 402-060-990 More Info >	£4.76
14	Bolt 301-212-253 More Info >	£1.16
15	Buffer Pad 418-840-300 More Info >	£17.80
16	Bolt 301-208-253 More Info >	£0.65
17	Washer - Flat 308-080-013 More Info >	£0.33
18	Nut - Nyloc 307-208-056 More Info >	£0.53
20	Bolt 301-206-203 More Info >	£0.43
21	Washer - Fender 108-041-613 More Info >	£0.47
22	Nut - Nyloc 307-206-053 More Info >	£0.33
