NOTES:

Part #	Number on image	Usage Notes
460-000-234	30	Item 30 Includes items 10,11,12,13 & 28 as Kit. Item 30 Includes items 10,11,12,13 & 28 as Kit. Item 30 Includes items 10,11,12,13 & 28 as Kit.

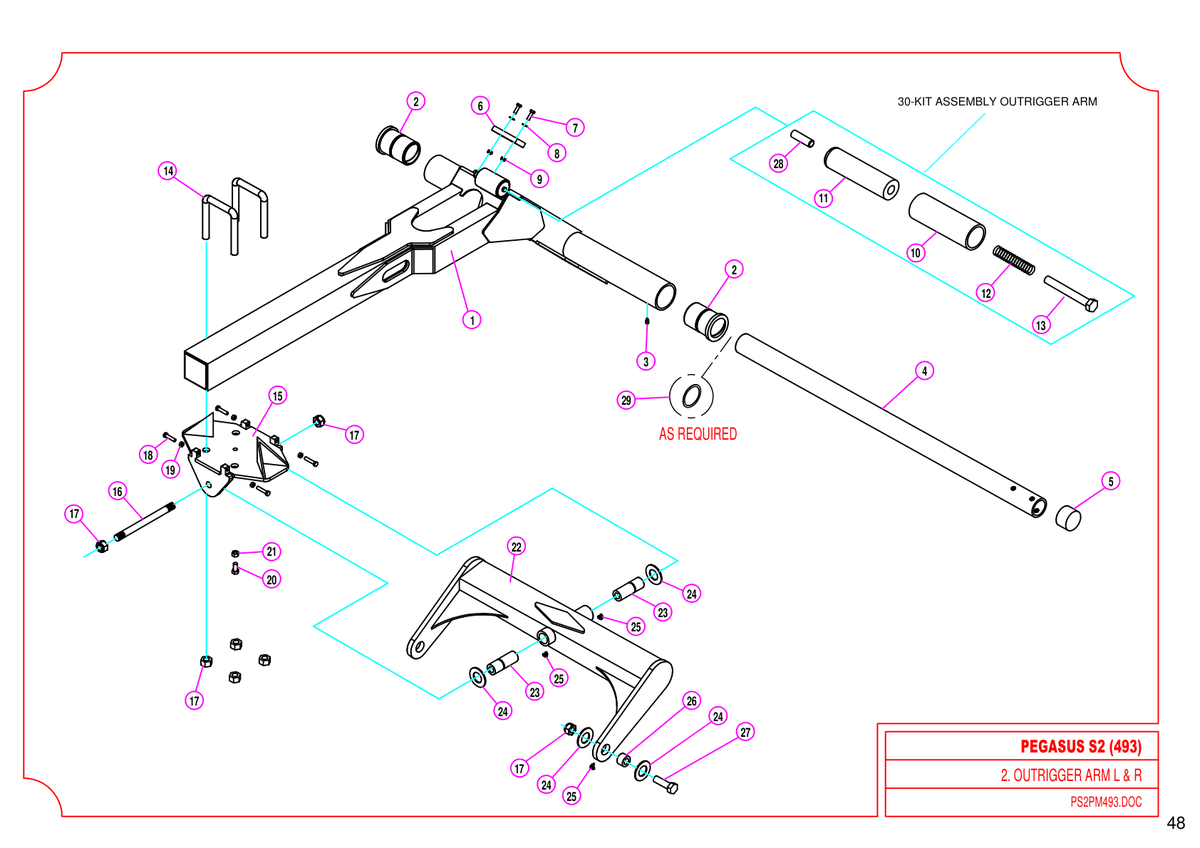

726 - Pegasus S2 - OUTRIGGER ARM L & R

Pegasus S2 493, Pegasus S2 610

Grouped product items
No.	Product Name	Price
2	Bush 402-840-260 More Info >	£96.34
3	Grease Nipple 208-442-600 More Info >	£1.96
4	Pin - Outrigger Hinge - Side 419-840-210 More Info >	£196.89
5	Cap - Round 209-840-320 More Info >	£5.13
6	Buffer Pad 418-840-300 More Info >	£17.80
7	Bolt 301-208-253 More Info >	£0.65
8	Washer - Flat 308-080-013 More Info >	£0.33
9	Nut - Nyloc 307-208-056 More Info >	£0.53
10	Bush 402-840-710 More Info >	£54.22
11	Pin - Transport Lock 419-840-700 More Info >	£67.41
12	Spring - Compression 207-840-720 More Info >	£6.13
13	Bolt 301-208-906 More Info >	£5.02
14	U-Bolt 215-840-400 More Info >	£34.42
15	Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060 More Info >	£342.85
16	Pin - Pitch Pivot 419-840-450 More Info >	£34.35
17	Nut - Nyloc 307-220-053 More Info >	£1.38
19	Nut - Plain 307-208-013 More Info >	£0.33
20	Bolt 301-212-253 More Info >	£1.16
21	Nut - Nyloc 307-212-053 More Info >	£0.53
22	Side Float Beam Weldment 418-840-070 More Info >	£759.85
23	Sleeve - Pitch Tube 402-000-010 More Info >	£132.87
24	Thrust Washer 402-840-520 More Info >	£46.88
25	Grease Nipple 208-442-650 More Info >	£2.54
26	Hardened Bush 402-840-550 More Info >	£18.90
27	Bolt 301-220-753 More Info >	£5.91
28	Grub Screw 312-208-255 More Info >	£0.80
29	Shim 418-000-001 More Info >	£21.33
30	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	£126.90
