NOTES:

Part #	Number on image	Usage Notes
406-000-084	12	PTO Shaft 406-000-084 include PTO Shaft 406-340-890 and PTO Decal.

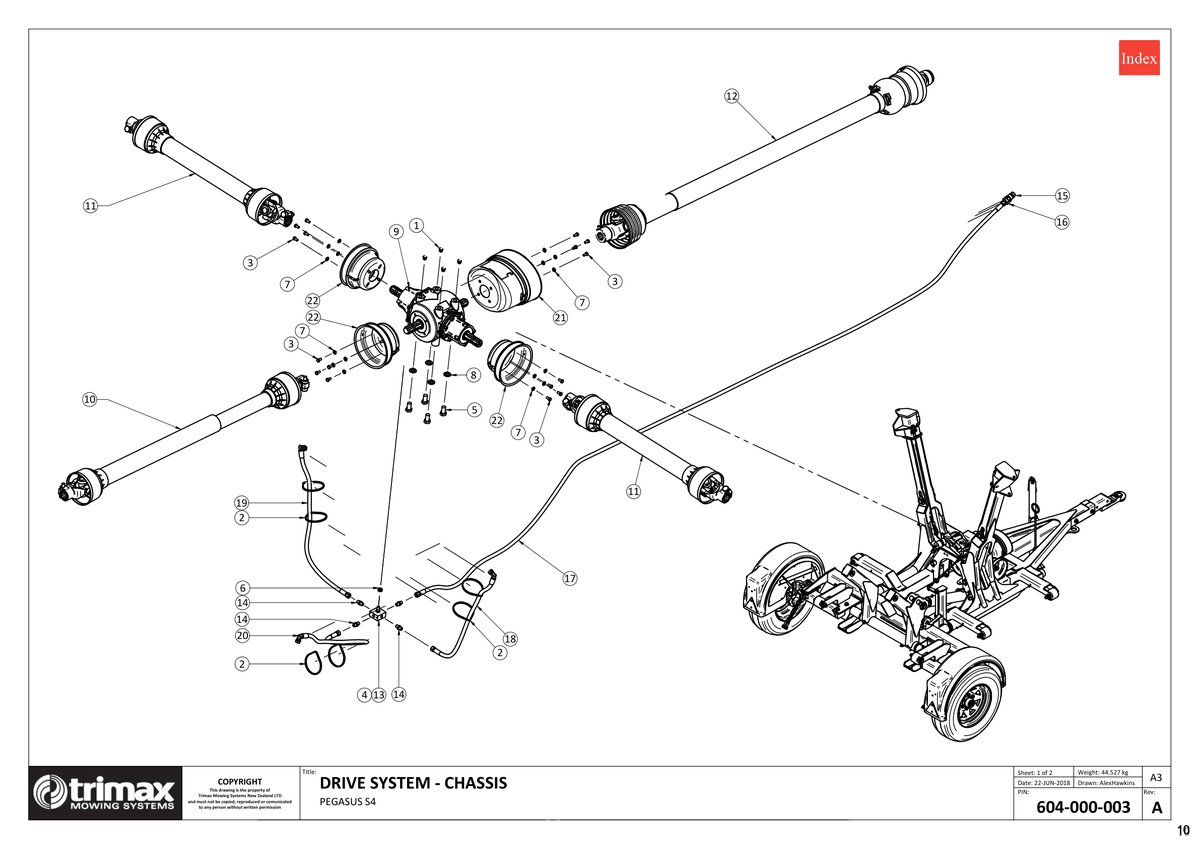

727-722 - Pegasus S4 - Chassis Drive System

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-013 More Info >	£0.96
2	Cable Tie - 382x7.5mm - Black 210-900-011 More Info >	Price on Request
3	Bolt 301-208-163 More Info >	£0.53
4	Bolt 301-210-203 More Info >	£0.58
5	Bolt 301-216-303 More Info >	£2.39
6	Nut - Nyloc 307-210-053 More Info >	£0.53
7	Washer - Flat 308-080-016 More Info >	£0.33
8	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
9	Gearbox 405-201-020 More Info >	£1,127.83
10	PTO Shaft 406-340-570 More Info >	£334.81
11	PTO Shaft 406-340-590 More Info >	£322.38
12	PTO Shaft Wide Angle-T60 i See notes section for usage notes on this part 406-000-084 More Info >	Price on Request
15	Coupling 408-447-580 More Info >	£19.48
16	Nipple 408-448-280 More Info >	£12.25
17	Hose Assembly - Hydraulic - Tractor 409-000-076 More Info >	£91.22
18	Hose Assembly 409-448-420 More Info >	£67.99
20	Hose Assembly 409-448-430 More Info >	£71.59
21	PTO Cone - Wide angle 410-000-257 More Info >	£36.53
22	Cone - PTO Holes Punched 410-440-402 More Info >	£20.44
