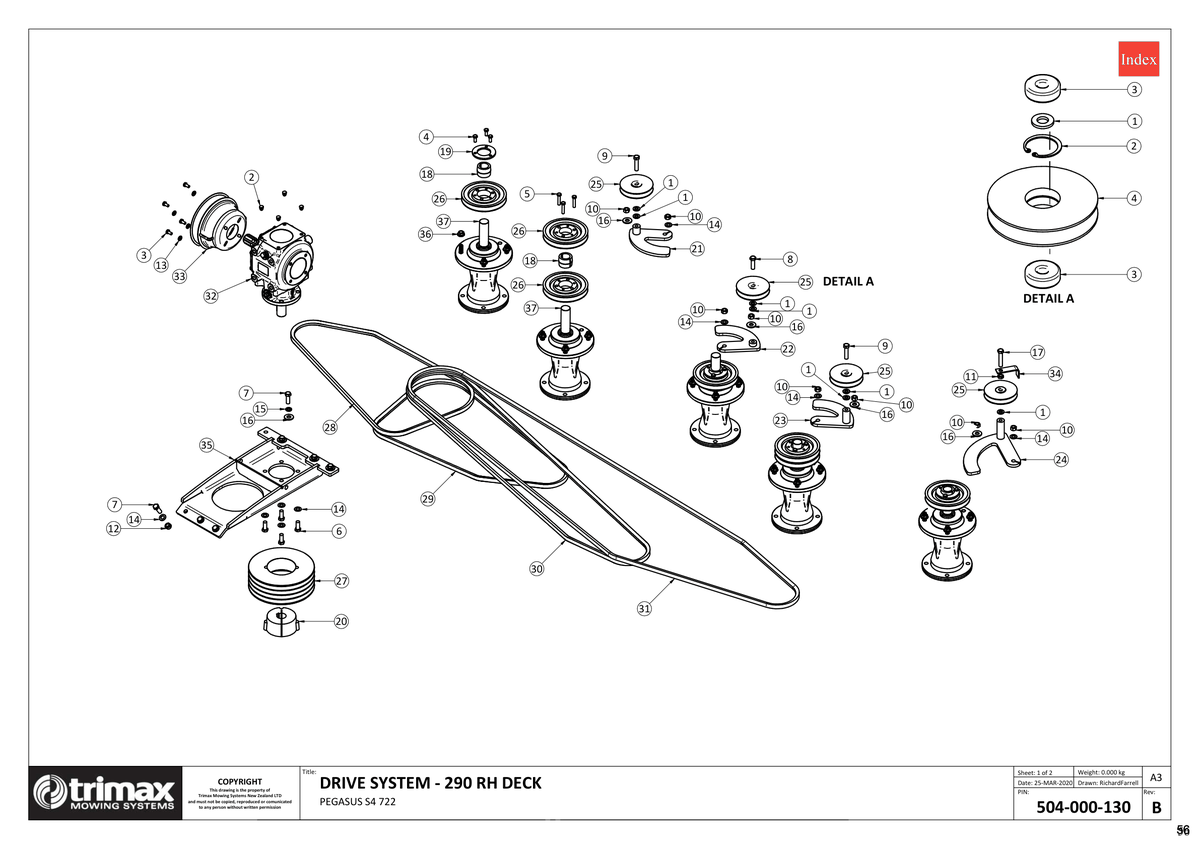

727-722 - Pegasus S4 - Drive System 290 RH - Biloc

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Blanking Plug - M12 209-900-012 More Info >	£0.91
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
4	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	£0.58
5	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	£1.01
6	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
8	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	£1.54
9	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	£1.74
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
11	Nut - Half 307-212-023 More Info >	£1.01
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
13	Washer - Flat 308-080-016 More Info >	£0.33
14	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
15	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
16	Washer - Heavy Flat 308-120-063 More Info >	£0.33
17	Set Screw 313-212-603 More Info >	£2.32
18	Bush 402-060-320 More Info >	£20.19
19	Retainer Ring 402-060-450 More Info >	£6.66
20	Bush - Taper Lock 402-060-680 More Info >	£43.76
21	Idler Tower Incl Base 403-330-423 More Info >	£55.89
22	Idler Tower Incl Base 403-330-424 More Info >	£53.82
23	Idler Tower Incl Base 403-330-432 More Info >	£39.97
25	Pulley Assembly - Idler 403-360-111 More Info >	£45.50
26	Pulley 403-360-300 More Info >	£35.19
27	Pulley - Taper Lock 403-361-290 More Info >	£160.00
28	Vee Belt - Trimax Specification 404-040-750 More Info >	£20.01
30	Vee Belt - Trimax Specification 404-041-150 More Info >	£33.16
31	Vee Belt - Trimax Specification 404-041-580 More Info >	£45.93
32	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	£644.30
33	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	£26.40
34	Folding 417-001-178 More Info >	£7.25
35	Gearbox Mount Weldment 417-001-197 More Info >	£547.81
36	Nut - Flange 450-000-078 More Info >	£1.80
37	Spindle Assembly - Steadfast 504-000-106 More Info >	Price on Request
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
3	Bearing - Trimax Specification - 401-021-900 More Info >	£10.30
4	Pulley - Idler 403-360-110 More Info >	£20.59
