NOTES:

Part #	Number on image	Usage Notes
418-000-608	5	Use part number 510-000-052 outrigger arm Includes items 1, 3 & 9
460-000-234	7	Item 7 Includes items 8,9,10,11 & 12 as Kit.

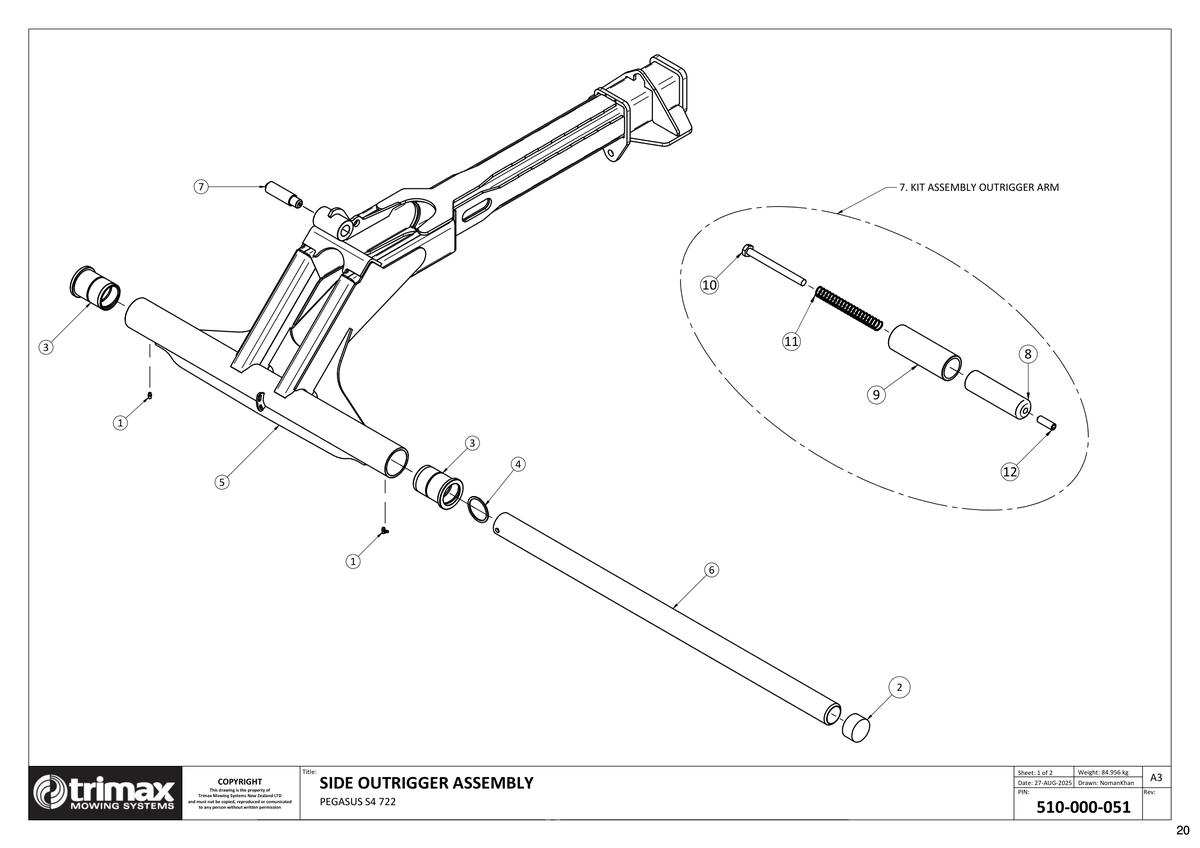

727-722 - Pegasus S4 - Outrigger Arm - LH & RH

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	£2.54
2	Plastic Cap - Round Ø63 x 36 209-840-320 More Info >	£5.13
3	Bush 402-840-260 More Info >	£96.34
4	Shim 418-000-001 More Info >	£21.33
5	Side Outrigger Weldment 722 i See notes section for usage notes on this part 418-000-608	Price on Request
6	Pin - Outrigger Hinge - Side 419-840-210 More Info >	£196.89
7	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	£126.90
8	Pin - Transport Lock 419-840-700 More Info >	£67.41
9	Bush 402-840-710 More Info >	£54.22
10	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	£5.02
11	Spring - Compression 207-840-720 More Info >	£6.13
12	Grub Screw 312-208-255 More Info >	£0.80
