NOTES:

Part #	Number on image	Usage Notes
412-841-010	14	For gavanised mowers use 412-841-001 RH and 412-841-011 LH
412-841-000	15	For gavanised mowers use 412-841-001 RH and 412-841-011 LH

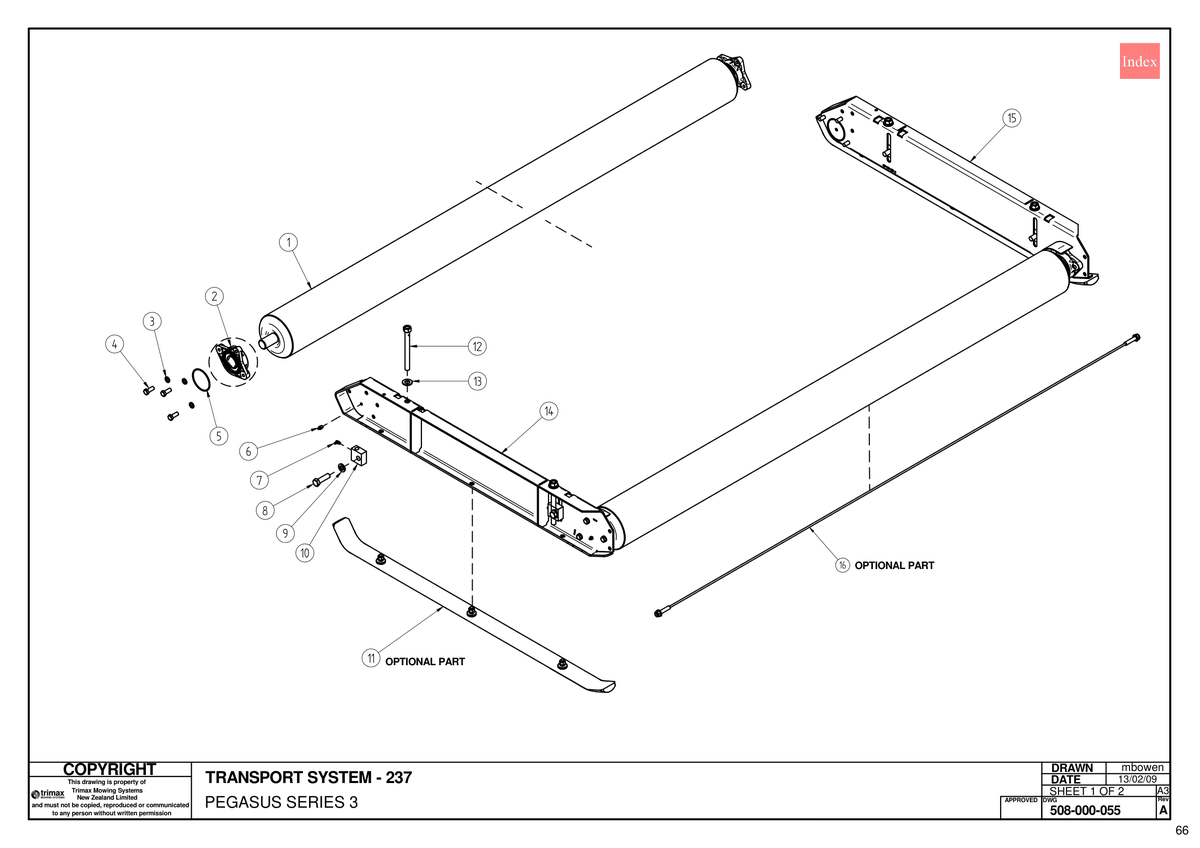

727 - Pegasus S3 - 237 TRANSPORT SYSTEM - 508-000-055

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Roller Weldment 237 414-320-023 More Info >	£671.48
2	Roller Bearing Assembly - 307 Skwezloc 1-3/8" - 401-000-005 More Info >	£132.11
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
4	Bolt 301-212-303 More Info >	£1.27
5	O Ring 450-000-055 More Info >	£2.64
6	Grease Nipple - Straight 1/8" (Trimax Specification) 208-442-550 More Info >	£2.80
7	Grease Nipple 208-442-650 More Info >	£2.54
8	Bolt 301-216-553 More Info >	£3.28
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
10	Height Adjuster Block 412-330-273 More Info >	£27.88
11	Skid Assembly - Anti-Bounce 412-000-148 More Info >	£108.16
12	Height Adj. Screw 412-850-251 More Info >	£17.58
13	Washer - Heavy Flat 308-160-063 More Info >	£0.58
14	Side Channel Weldment - DR LH Ext "S" i See notes section for usage notes on this part 412-841-010 More Info >	£371.08
15	Side Channel Weldment - DR RH Ext "S" 178 i See notes section for usage notes on this part 412-841-000 More Info >	£371.08
16	Scraper - Roller 237 404-320-124 More Info >	£47.42
