NOTES:

Part #	Number on image	Usage Notes
214-446-280	2	Sold as an assembly P/N 506-000-025 Sold as an assembly P/N 506-000-025 Sold as an assembly P/N 506-000-025

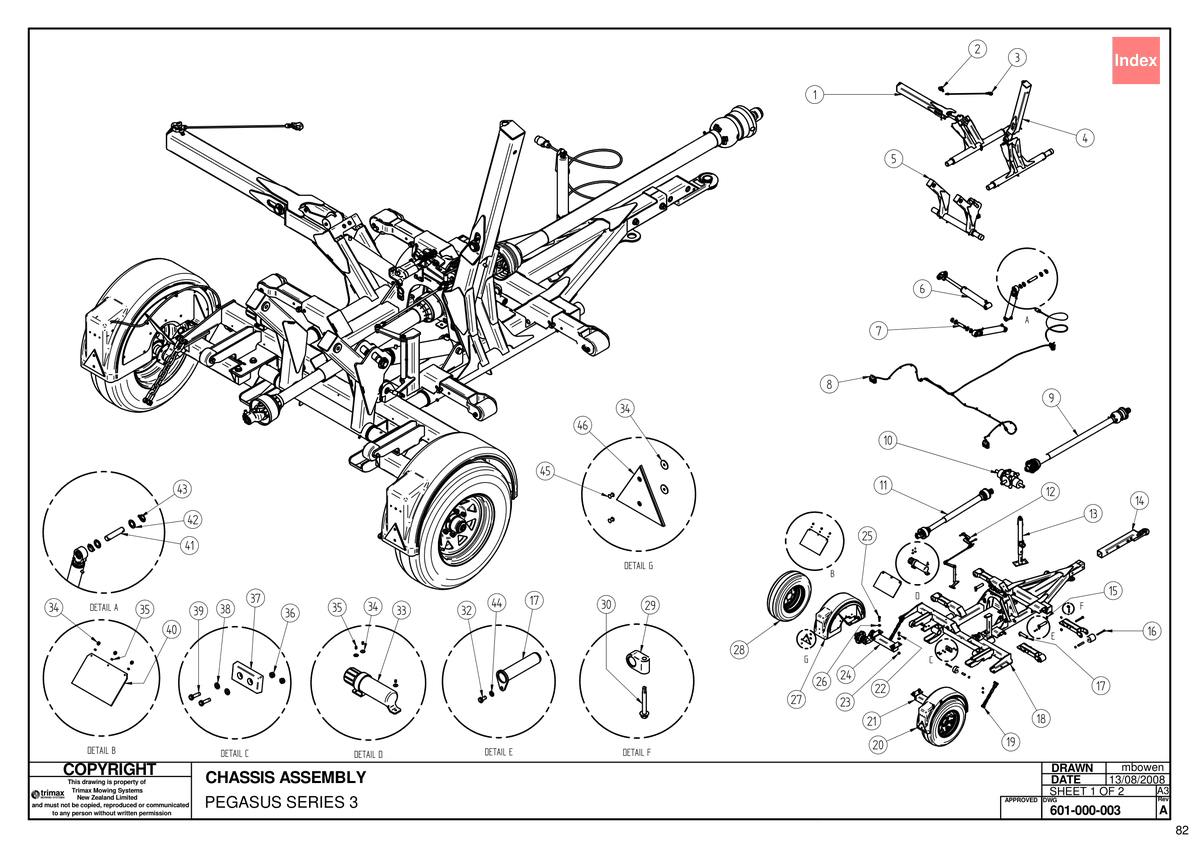

727 - Pegasus S3 - CHASSIS ASSY. - 601-000-003

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
2	D-Shackle i See notes section for usage notes on this part 214-446-280 More Info >	£4.76
6	Lift Ram Assembly 409-845-200 More Info >	£1,034.49
7	Pin - Hydraulic Cylinder 419-845-550 More Info >	£32.68
9	PTO Shaft Wide Angle 406-340-890 More Info >	£895.84
10	Gearbox 405-201-020 More Info >	£1,127.83
11	PTO Shaft 406-340-570 More Info >	£334.81
13	Parking Jack Assembly 418-000-217 More Info >	£280.98
15	Bolt 301-212-253 More Info >	£1.16
17	Pin Weldment - Hydraulic Cylinder 419-845-500 More Info >	£33.94
19	Check Chain Assembly 404-000-006 More Info >	£19.16
20	Mudguard Assembly - Pegasus S4 RH 506-000-014 More Info >	£254.53
21	Axle Assembly - Braked/Splined - RH 416-842-740 More Info >	£1,034.49
22	Bolt 301-216-403 More Info >	£2.64
23	Nut - Nyloc 307-216-053 More Info >	£1.16
24	Axle Assembly - Braked/Splined - LH 416-842-750 More Info >	£1,034.49
25	Bolt 301-216-603 More Info >	£3.33
26	Washer - Heavy Flat 308-160-063 More Info >	£0.58
28	Wheel Assembly - Road 416-842-620 More Info >	£334.93
29	Hose Clamp - Hydraulic Hose 408-000-037 More Info >	£3.17
31	Washer - Spring 308-100-043 More Info >	£0.33
32	Bolt 301-208-163 More Info >	£0.53
33	Operator Manual Tube - Screw Cap 450-000-073 More Info >	£31.95
34	Washer - Fender 108-031-413 More Info >	£0.33
35	Blind Rivet 213-000-004 More Info >	£0.47
36	Nut - Nyloc 307-208-053 More Info >	£0.43
37	Buffer Pad 418-840-300 More Info >	£17.80
38	Washer - Flat 308-080-013 More Info >	£0.33
39	Bolt 301-208-303 More Info >	£0.78
41	Pin - Hydraulic Cylinder 419-845-560 More Info >	£29.67
42	Heavy Washer 402-845-580 More Info >	£10.09
43	Linch Pin 203-300-700 More Info >	£1.01
44	Washer - Spring 308-080-043 More Info >	£0.33
46	Reflector - Safety Triangle 421-847-050 More Info >	£8.50
