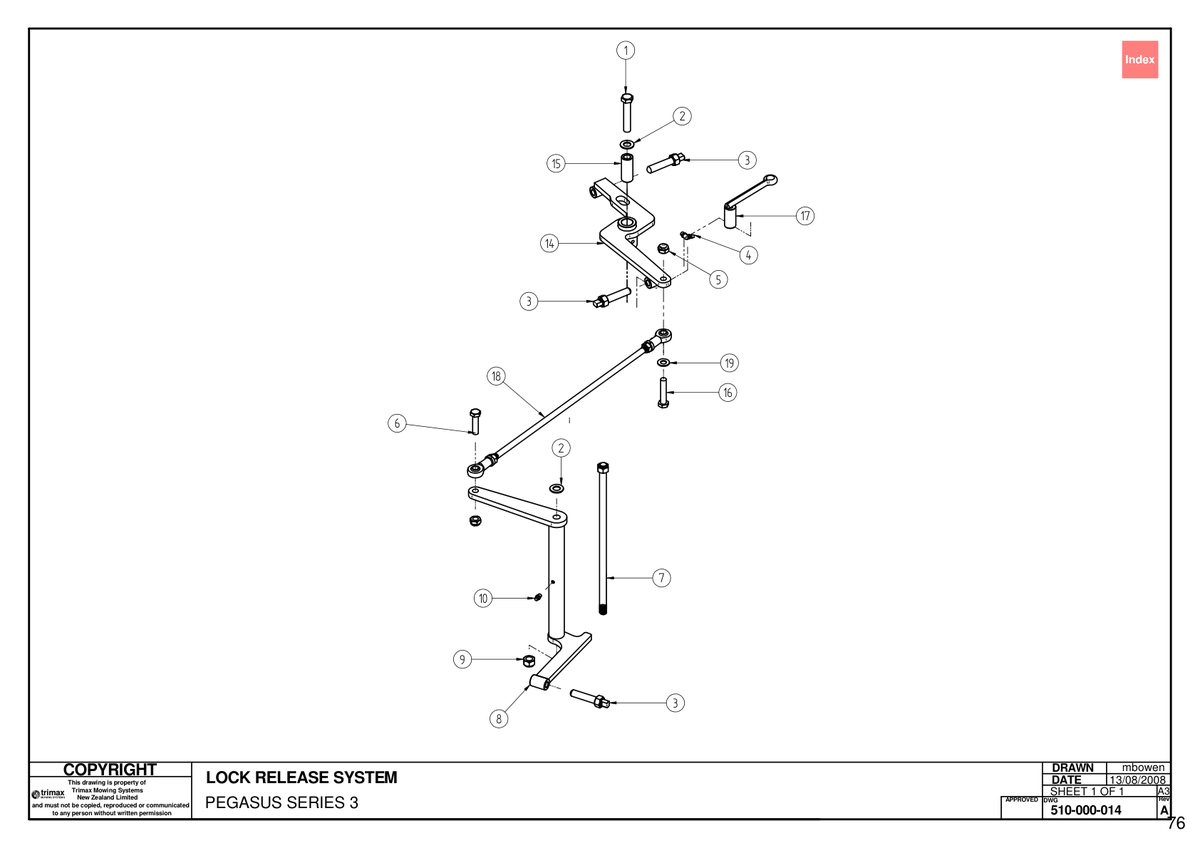

727 - Pegasus S3 - LOCK RELEASE SYSTEM - 510-000-014

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	£2.39
2	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
3	Release Lever Pin Assembly 419-000-013 More Info >	£13.05
4	Grease Nipple - Trimax Specification 208-442-620 More Info >	£2.07
5	Nut - Nyloc 307-210-053 More Info >	£0.53
6	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	£0.99
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
10	Grease Nipple - Trimax Specification 208-442-600 More Info >	£1.96
14	Release Assembly 418-840-630 More Info >	£117.34
15	Bush 402-840-650 More Info >	£17.53
16	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	£1.27
17	Release Rope Mount Weldment 418-840-680 More Info >	£42.44
18	Tie Rod Assembly - Transport Lock 418-000-193 More Info >	£64.03
19	Washer - Flat 308-100-013 More Info >	£0.33
