NOTES:

Part #	Number on image	Usage Notes
301-216-303	5	Bolt Length Increased. All Machines prior to: 727-493-400-0036 (painted) / 727-610-410-0048 (galv) / 727-610-400-0052 (painted) - please ensure bolt has been upgraded Bolt Length Increased. All Machines prior to: 727-493-400-0036 (painted) / 727-610-410-0048 (galv) / 727-610-400-0052 (painted) - please ensure bolt has been upgraded
408-448-500	11	The new Junction block with through hole is backward compatible with the old type welded on bolts, order bolts, nuts separately The new Junction block with through hole is backward compatible with the old type welded on bolts, order bolts, nuts separately

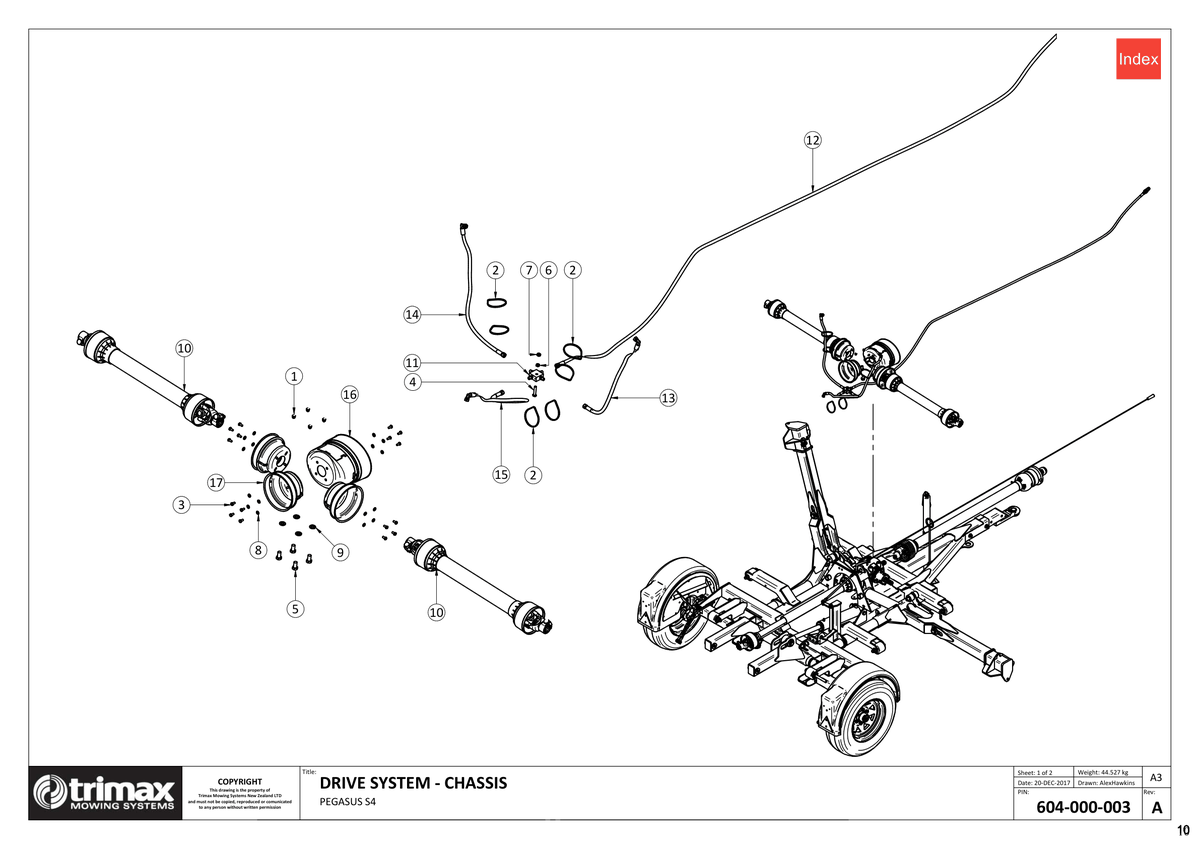

727 - Pegasus S4 - Chassis Drive System

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-013 More Info >	£0.96
2	Cable Tie - Black 210-900-011 More Info >	£0.43
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
4	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	£1.27
5	Bolt - Hex Head - M16 x 30 - Trimax Specification i See notes section for usage notes on this part 301-216-303 More Info >	£2.39
6	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	£0.42
7	Nut - Nyloc 307-210-053 More Info >	£0.53
8	Washer - Flat 308-080-016 More Info >	£0.33
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
10	PTO Shaft 406-340-590 More Info >	£322.38
11	Junction Assembly - Hydraulic i See notes section for usage notes on this part 408-448-500 More Info >	£127.01
12	Hose Assembly 409-448-400 More Info >	£141.47
13	Hose Assembly 409-448-420 More Info >	£67.99
15	Hose Assembly 409-448-430 More Info >	£71.59
16	PTO Cone - Wide angle 410-000-257 More Info >	£36.53
17	Cone - PTO Holes Punched 410-440-402 More Info >	£20.44
