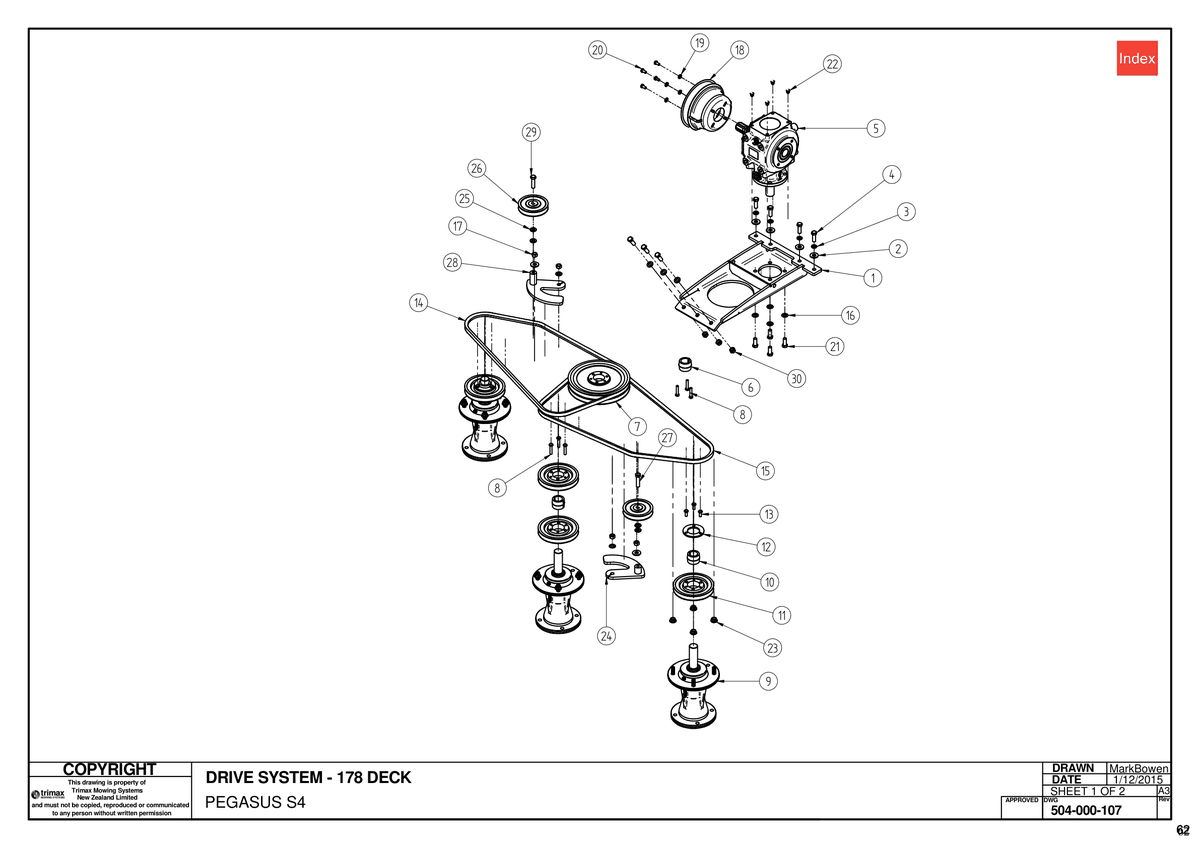

727 - Pegasus S4 - Drive System 178

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Gearbox Mount Weldment 417-001-197 More Info >	£547.81
2	Washer - Heavy Flat 308-120-063 More Info >	£0.33
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
4	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
5	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	£644.30
6	Bush 402-060-330 More Info >	£25.34
7	Pulley 403-360-650 More Info >	£57.44
8	Set Screw 305-208-403 More Info >	Price on Request
9	Spindle Assembly - Steadfast 504-000-106 More Info >	Price on Request
10	Bush 402-060-320 More Info >	£20.19
11	Pulley 403-360-300 More Info >	£35.19
12	Retainer Ring 402-060-450 More Info >	£6.66
13	Set Screw 305-208-203 More Info >	Price on Request
14	Vee Belt - Trimax Specification 404-040-750 More Info >	£20.01
16	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
17	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
18	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	£26.40
19	Washer - Flat 308-080-013 More Info >	£0.33
20	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
21	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
22	Blanking Plug - M12 209-900-012 More Info >	£0.91
23	Nut - Flange 450-000-078 More Info >	£1.80
24	Idler Tower Incl Base 403-330-423 More Info >	£55.89
25	Washer - Hardened 108-071-513 More Info >	£1.69
26	Pulley Assembly - Idler 403-360-111 More Info >	£45.50
27	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	£1.74
28	Idler Tower Incl Base 403-330-432 More Info >	£39.97
29	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	£1.64
30	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
