Parts Shop

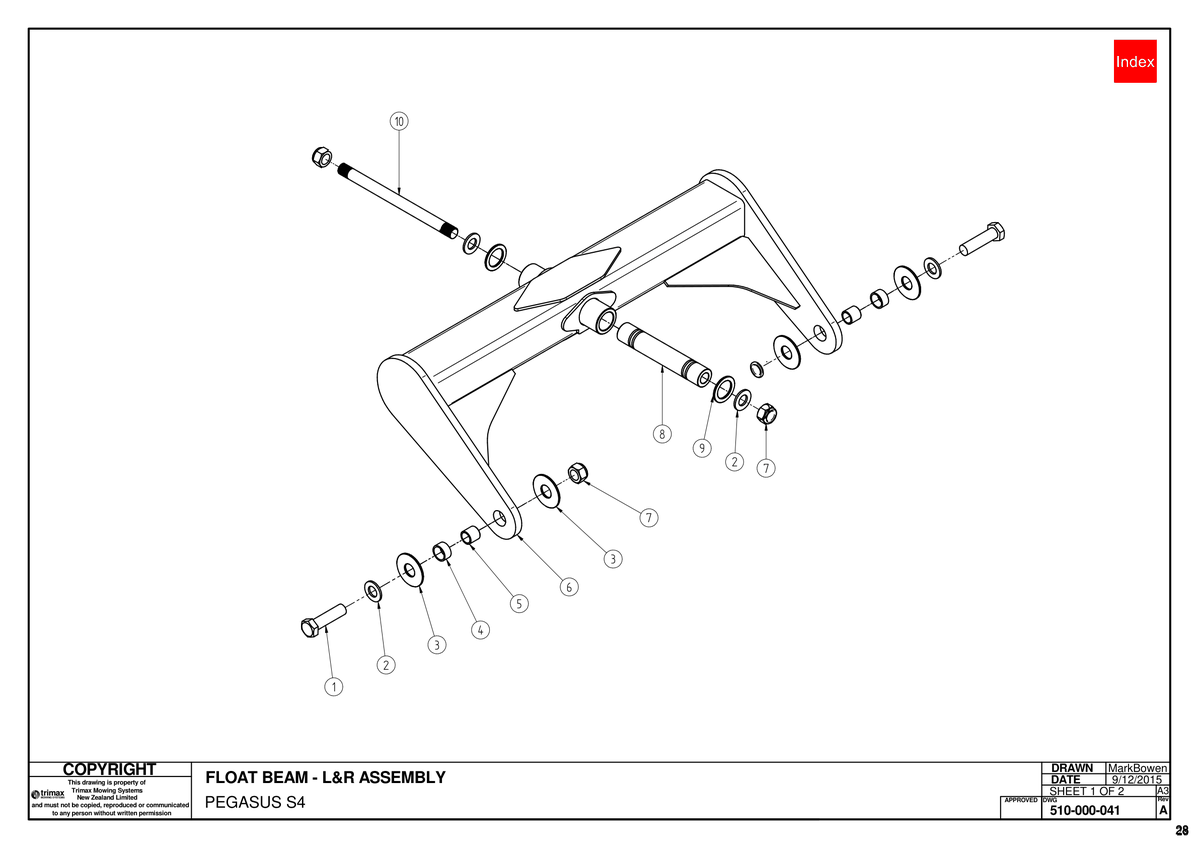

728 - Pegasus S4 - Float Beam - LH & RH

Pegasus S4 493, Pegasus S4 610

Grouped product items
No. Image Product Name Price Quantity
1 Bolt - Hex Head - M20 x 75 - Trimax Specification [301-220-753] Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753
£5.91
2 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
£0.64
3 Thrust Washer [402-000-105] Thrust Washer 402-000-105
£12.25
4 Bush - Composite Pivot Bush [402-000-093] Bush - Composite Pivot Bush 402-000-093
£21.65
5 Inner Ring - Bearing [401-000-020] Inner Ring - Bearing 401-000-020
£13.42
6 Side Float Beam Weldment - UK [418-000-614] Side Float Beam Weldment - UK 418-000-614
£870.63
7 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
£1.38
8 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
£132.87
9 Thrust Washer [402-000-104] Thrust Washer 402-000-104
£25.45
10 Pin - Pitch Pivot [419-840-450] Pin - Pitch Pivot 419-840-450
Price on Request
