NOTES:

Part #	Number on image	Usage Notes
308-120-013	14	Quantity as required.
404-040-530	26	For serial numbers PCD141 onwards, use [404-040-530] Vee Belt. For serial numbers PCD064 to PCD140, use [404-040-510] Vee Belt (excluding AU machines). For serial numbers PCD063 and earlier, use [404-040-530] Vee Belt.
404-040-610	27	For serial numbers PCD141 onwards, use [404-040-610] Vee Belt. For serial numbers PCD140 and earlier, use [404-040-570] Vee Belt.
403-330-442	29	Prior to serial number PCD141 (AU: PC148) a sliding gearbox was fitted without belt idlers. ECN220 (03/91) changed to a fixed gearbox and introduced belt idlers.
403-360-110	30	From serial number PCD402 (01/08/94) double bearings were introduced for the idler pulleys. When replacing idler pulleys or bearings it is recommended to replace them with the double bearing system.
423-080-220	50	For serial numbers PCD579 onwards, use [423-080-220] Catch - Adjustable. For serial numbers PCD578 and earlier, use [423-080-200] Catch.
213-443-250	51	For serial numbers PCD579 onwards, quantity is 6. For serial numbers PCD578 and earlier, quantity is 4.

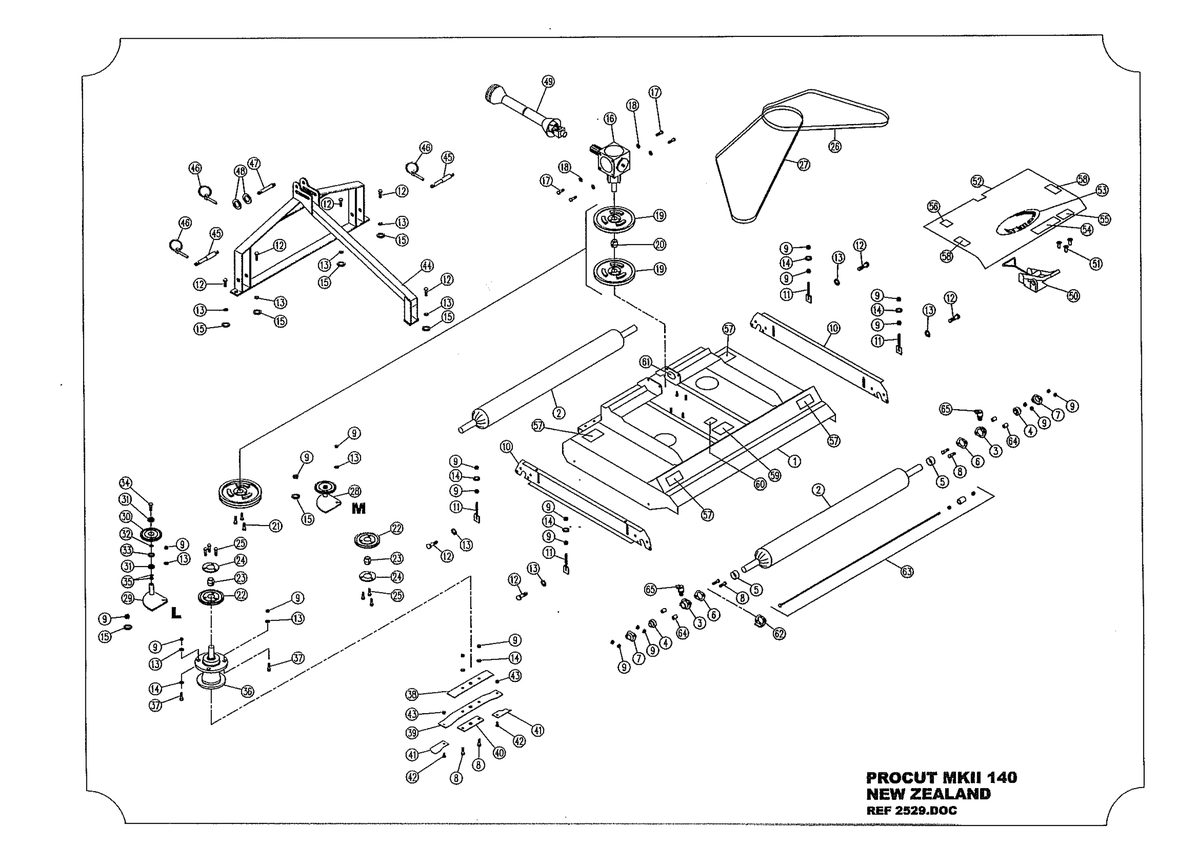

735 - Procut Mk2 140 - Complete Assembly

ProCut Mk2 140

Grouped product items
No.	Product Name	Price
5	Sleeve 402-464-061 More Info >	£5.86
7	Cap - Bearing Protector Cap 410-464-071 More Info >	£15.05
8	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	£1.64
9	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
12	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
13	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
14	Washer - Flat M12 - Trimax Specification - i See notes section for usage notes on this part 308-120-013 More Info >	£0.33
15	Washer - Heavy Flat 308-120-063 More Info >	£0.33
19	Pulley 403-360-700 More Info >	£47.99
21	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	£1.01
22	Pulley 403-360-300 More Info >	£35.19
23	Bush 402-060-320 More Info >	£20.19
24	Retainer Ring 402-060-450 More Info >	£6.66
25	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	£0.58
26	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-530 More Info >	£16.37
27	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-610 More Info >	£17.34
28	Idler Tower Incl Base 403-330-432 More Info >	£39.97
29	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-442 More Info >	£49.52
30	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	£20.59
31	Bearing - Trimax Specification - 401-021-900 More Info >	£10.30
32	Washer - Flat 108-071-413 More Info >	£1.22
33	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
34	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	£1.74
36	Spindle Assembly - Type 5b Std 504-328-010 More Info >	£415.95
37	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	£2.01
38	Backing Plate - Blade Beam 411-322-710 More Info >	£16.11
39	Beam - Std - Blade Mounting 411-322-760 More Info >	£28.03
40	Clamp Plate - Blade Beam 411-322-800 More Info >	£5.28
41	Blade - Fling-Tip Blade - Classic (16070/U) 411-160-702 More Info >	£7.42
42	Blade Bolt - D-Bolt With M10 Nyloc Nut - Classic Blade Mounting 411-322-100 More Info >	£3.28
43	Nut - Nyloc 307-210-053 More Info >	£0.53
45	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	£17.85
46	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
47	Pin - Linkage - Top Link 419-301-150 More Info >	£7.60
48	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
49	Driveshaft 406-340-260 More Info >	£237.86
50	Adjustable Catch - Covers i See notes section for usage notes on this part 423-080-220 More Info >	£13.05
51	Blind Rivet i See notes section for usage notes on this part 213-443-250 More Info >	£0.28
53	Decal 424-100-350 More Info >	Price on Request
58	Decal - Safety - Service/Read OpMan/Belt Warning/No Step 424-101-080 More Info >	£6.02
61	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	£25.88
64	Sleeve 402-480-740 More Info >	£4.23
65	Grease Nipple - Trimax Specification 208-442-620 More Info >	£2.07
