NOTES:

Part #	Number on image	Usage Notes
405-200-720	19	The part number listed is for the latest gearbox only. Prior to serial number PCK006 a T4A gearbox was used (old P/N 20070), and from serial number PCK006 to PCK055 a T304A gearbox was used (old P/N 20071). Always supply serial number when ordering gearbox parts.
402-060-680	23	For serial numbers PCK006 onwards, use [402-060-680] Taper-Lock Bush - G/Box (used with key [405-425-940]). For serial numbers PCK005 and earlier, use [402-060-250] Bi-Loc Bush - G/Box (quantity 1 on 178 and 210, quantity 2 on 237 to 300).
308-120-013	27	Quantity as required.
403-360-110	30	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request.
403-330-423	34	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request.
403-330-424	35	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request.
403-330-432	36	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request.
403-330-442	37	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request.
404-041-140	39	Not all optional belts are available off the shelf.
404-040-610	41	Optional alternatives: SPBX1600, 5VX630. Not all optional belts are available off the shelf.
423-080-220	58	For serial numbers PCK074 onwards, use [423-080-220] Cover Latch - Adjustable. For serial numbers PCK073 and earlier, use [423-080-200] Cover Latch.
413-460-000	60	A dual category headstock is available as an option for all machines but requires two extra U-bolts and related hardware to fit (old P/N 46000/D). A reinforced headstock is also available on request.

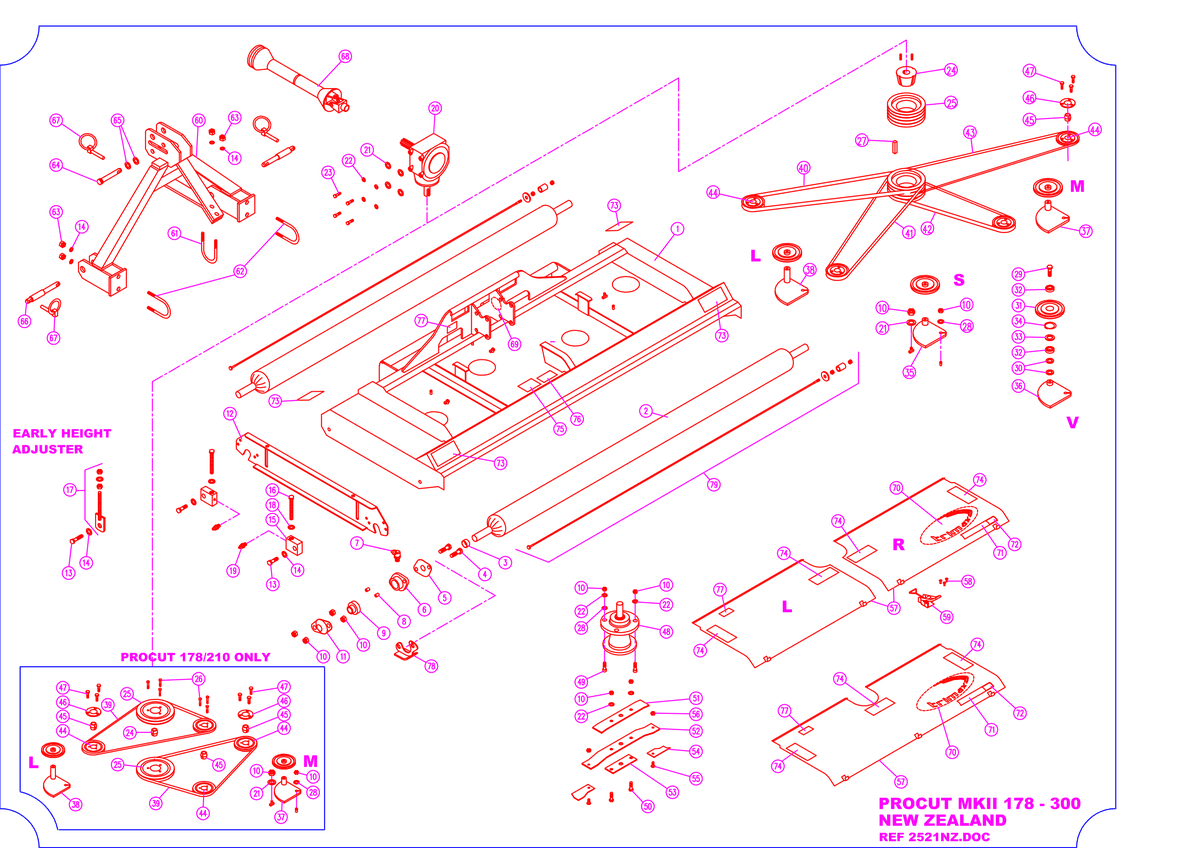

735 - Procut Mk2 UK 300 - Complete Assembly

ProCut Mk2 300

Grouped product items
No.	Product Name	Price
2	Roller 414-320-006 More Info >	£172.20
3	Sleeve 402-464-062 More Info >	£5.86
4	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	£1.74
5	Shield 410-464-052 More Info >	£10.99
6	Roller Bearing Assembly - Trimax Specification 401-020-701 More Info >	£50.83
7	Grease Nipple - Trimax Specification 208-442-620 More Info >	£2.07
8	Sleeve 402-480-740 More Info >	£4.23
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
11	Cap 410-464-072 More Info >	£19.11
12	Side Channel Weldment - DR 210/282/300 PC2 412-331-310 More Info >	£197.95
13	Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553 More Info >	£3.28
14	Washer - Spring 308-160-043 More Info >	£0.43
15	Height Adjuster Block 412-330-273 More Info >	£27.88
17	Washer - Heavy Flat 308-160-063 More Info >	£0.58
18	Grease Nipple - Trimax Specification 208-442-600 More Info >	£1.96
19	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	£644.30
20	Washer - Heavy Flat 308-120-063 More Info >	£0.33
21	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
22	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
23	Bush - Taper Lock i See notes section for usage notes on this part 402-060-680 More Info >	£43.76
26	Key 405-425-940 More Info >	£7.94
27	Washer - Flat M12 - Trimax Specification - i See notes section for usage notes on this part 308-120-013 More Info >	£0.33
30	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	£20.59
31	Bearing - Trimax Specification - 401-021-900 More Info >	£10.30
32	Washer - Flat 108-071-413 More Info >	£1.22
33	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
34	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-423 More Info >	£55.89
35	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-424 More Info >	£53.82
36	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-432 More Info >	£39.97
37	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-442 More Info >	£49.52
39	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-041-140 More Info >	£31.62
41	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-610 More Info >	£17.34
43	Pulley 403-360-600 More Info >	£35.53
44	Bush 402-060-320 More Info >	£20.19
45	Retainer Ring 402-060-450 More Info >	£6.66
46	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	£0.58
47	Spindle Assembly - Type 5b Std 504-328-010 More Info >	£415.95
48	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	£2.01
49	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	£1.64
52	Clamp Plate - Blade Beam 411-322-800 More Info >	£5.28
53	Blade - Fling-Tip Blade - Classic (16070/U) 411-160-702 More Info >	£7.42
53	Blade - Spindle - Flat 411-160-700 More Info >	£7.42
54	Blade Bolt - D-Bolt With M10 Nyloc Nut - Classic Blade Mounting 411-322-100 More Info >	£3.28
55	Nut - Nyloc 307-210-053 More Info >	£0.53
57	Blind Rivet 213-443-250 More Info >	£0.28
58	Adjustable Catch - Covers i See notes section for usage notes on this part 423-080-220 More Info >	£13.05
59	Bolt - c/w Nyloc Nut 306-206-303 More Info >	Price on Request
60	Headstock i See notes section for usage notes on this part 413-460-000 More Info >	£479.90
61	U-Bolt 215-446-340 More Info >	£11.67
62	U-Bolt 215-446-320 More Info >	£12.25
63	Nut - Plain 307-216-013 More Info >	£1.01
64	Pin - Linkage - Top Link 419-301-150 More Info >	£7.60
65	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
66	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	£17.85
67	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
68	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	£391.79
69	Cone 410-440-400 More Info >	£16.45
71	Washer - Flat 308-080-013 More Info >	£0.33
72	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	£25.88
73	Decal 424-100-350 More Info >	Price on Request
77	Decal - Safety - Service/Read OpMan/Belt Warning/No Step 424-101-080 More Info >	£6.02
84	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	£0.43
85	Nut - Nyloc 307-206-053 More Info >	£0.33
