NOTES:

Part #	Number on image	Usage Notes
403-360-110	11	P/N 403-360-111 Pulley assembly c/w bearings

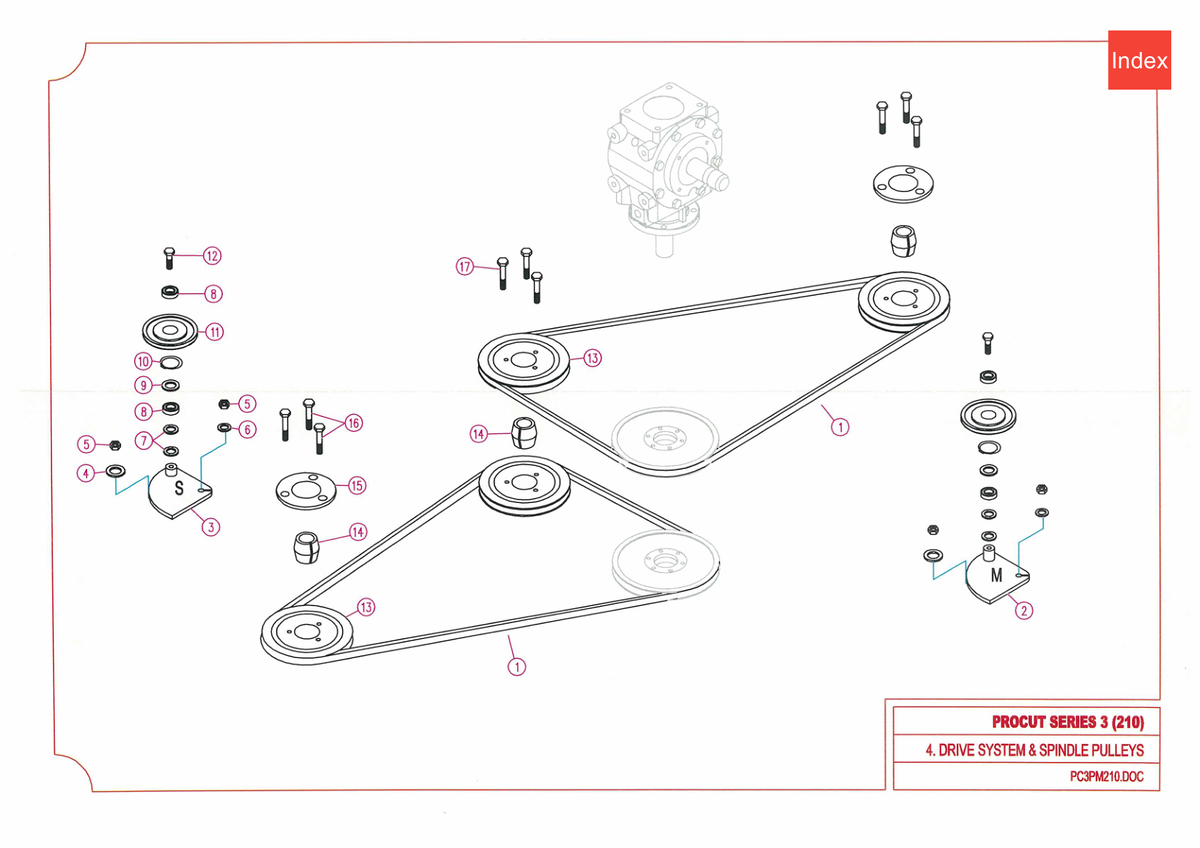

736-210 - Procut S3 - Drive System & Spindle Pulleys

ProCut S3 210

Grouped product items
No.	Product Name	Price
1	Vee Belt 404-040-830 More Info >	£22.91
2	Idler Tower Incl Base 403-330-432 More Info >	£39.97
3	Idler Tower Incl Base 403-330-423 More Info >	£55.89
4	Washer - Heavy Flat 308-120-063 More Info >	£0.33
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
6	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
8	Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900 More Info >	£13.00
9	Washer - Flat 108-071-413 More Info >	£1.22
10	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
11	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	£20.59
12	Bolt 301-212-453 More Info >	£1.64
13	Pulley 403-360-300 More Info >	£35.19
14	Bush 402-060-320 More Info >	£20.19
15	Retainer Ring 402-060-450 More Info >	£6.66
16	Bolt 301-208-203 More Info >	£0.58
17	Bolt 301-208-403 More Info >	£1.01
