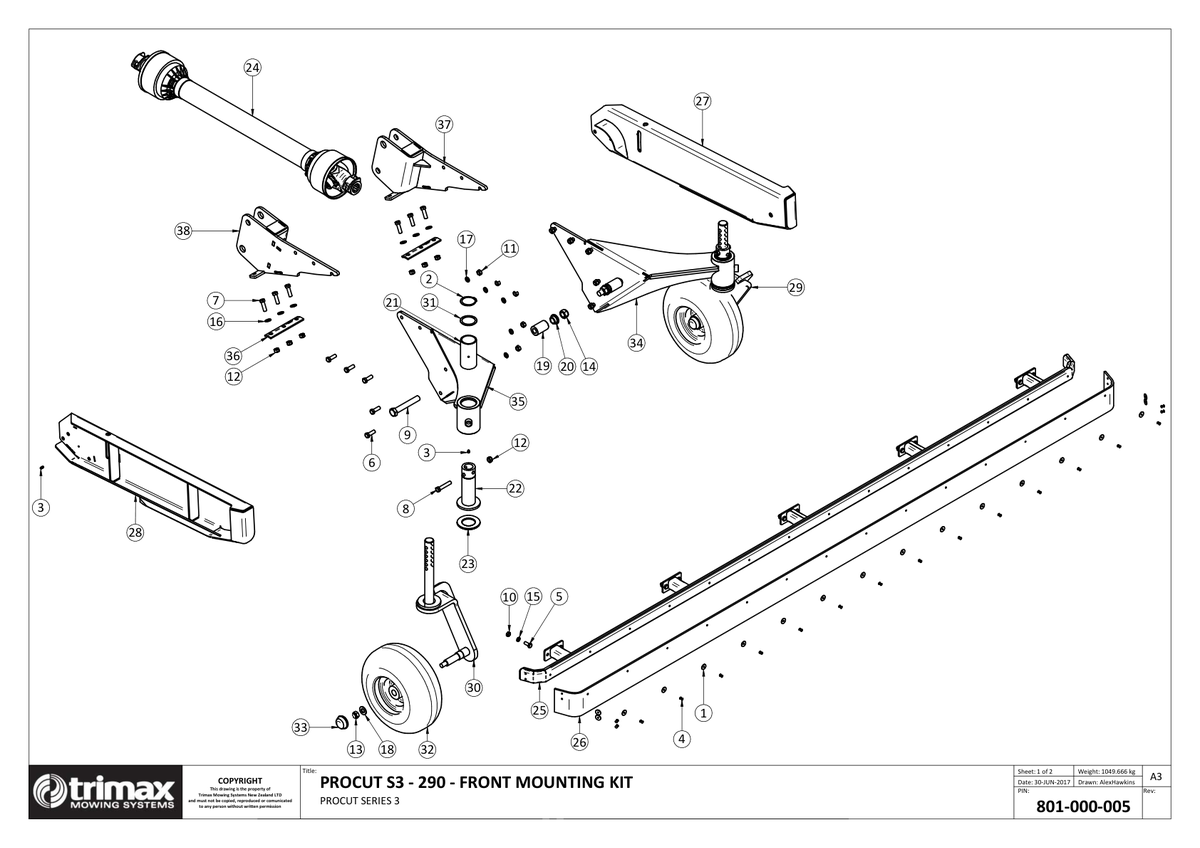

736-290 - Procut S3 - Front Mounting Kit

ProCut S3 290

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	£0.33
2	Circlip/Snap Ring - External 204-820-522 More Info >	£1.56
3	Grease Nipple - 1/4" Short 208-442-600 More Info >	£1.96
4	Blind Rivet 213-443-250 More Info >	£0.28
5	Bolt 301-210-303 More Info >	£0.80
6	Bolt 301-212-353 More Info >	£1.38
7	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
8	Bolt 301-212-653 More Info >	£2.39
9	Bolt 301-620-133 More Info >	£6.97
10	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	£0.42
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
13	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
14	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
15	Washer - Spring 308-100-043 More Info >	£0.33
16	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
17	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
18	Washer - Heavy Flat 308-160-063 More Info >	£0.58
19	Bush - Link Plate 402-000-072 More Info >	Price on Request
20	Bush - Top Hat 402-000-073 More Info >	Price on Request
21	Bush - Pivot 402-320-060 More Info >	£107.89
22	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	£219.06
23	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	£26.67
24	PTO Complete Driveshaft - 1200mm - 540/1000rpm (Trimax Specification) 406-340-870 More Info >	£322.38
25	Protector Bar Weldment - Front 290 410-000-260 More Info >	Price on Request
27	Side Channel Weldment - SRR LH PC3 412-000-091 More Info >	£462.98
28	Side Channel Weldment - SRR RH PC3 412-000-092 More Info >	£462.98
29	Front Castor Weldment - LH 412-320-051 More Info >	£306.53
30	Front Castor Weldment - RH 412-320-052 More Info >	£306.53
31	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	£28.19
32	Wheel Assembly 416-449-010 More Info >	£183.01
33	Grease Cap - Wheel 416-449-015 More Info >	£12.78
34	Castor Mount Weldment LH - Front Mount Kit 417-000-937 More Info >	£770.56
35	Castor Mount Weldment RH - Front Mount Kit 417-000-938 More Info >	£770.56
36	Link Plate Doubler Folding 178/237/290 417-000-952 More Info >	£133.52
37	Link Plate Weldment LH - Front Mount Kit 178/237/290 417-000-953 More Info >	Price on Request
38	Link Plate Weldment RH - Front Mount Kit 178/237/290 417-000-954 More Info >	Price on Request
