NOTES:

Part #	Number on image	Usage Notes
108-071-513	1	Quantity varies, use as required
405-000-015	25	Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount.
405-200-720	26	Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount.

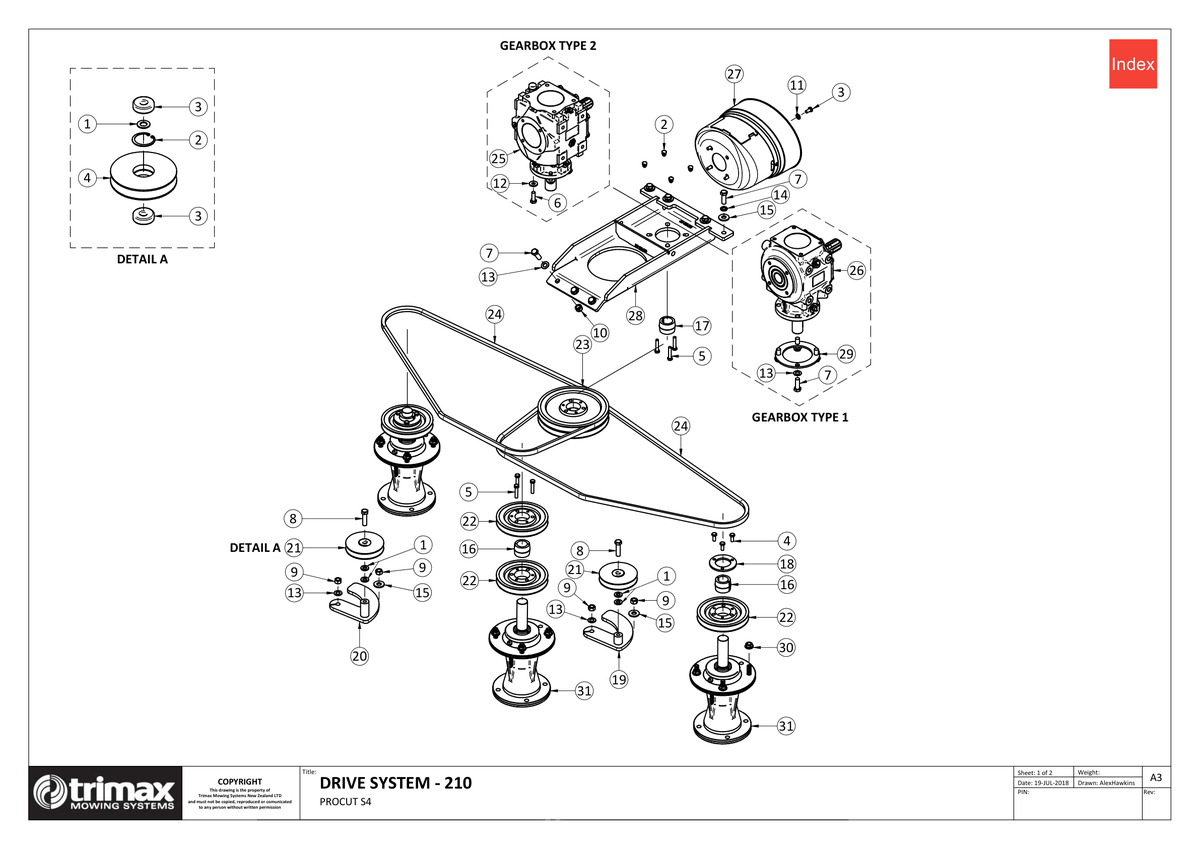

736 - Procut S4 210 - Drive System - Biloc

ProCut S4 210

Grouped product items
No.	Product Name	Price
1	Washer - Hardened i See notes section for usage notes on this part 108-071-513 More Info >	£1.69
2	Blanking Plug - M12 209-900-012 More Info >	£0.91
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
4	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	£0.58
5	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	£1.01
6	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	£0.80
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
8	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	£1.64
9	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
11	Washer - Flat 308-080-016 More Info >	£0.33
12	Washer - Heavy Flat 308-100-063 More Info >	£0.33
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
15	Washer - Heavy Flat 308-120-063 More Info >	£0.33
16	Bush 402-060-320 More Info >	£20.19
17	Bush 402-060-330 More Info >	£25.34
18	Retainer Ring 402-060-450 More Info >	£6.66
19	Idler Tower Incl Base 403-330-423 More Info >	£55.89
20	Idler Tower Incl Base 403-330-432 More Info >	£39.97
21	Pulley Assembly - Idler 403-360-111 More Info >	£45.50
22	Pulley 403-360-300 More Info >	£35.19
23	Pulley 403-360-800 More Info >	£57.96
24	Vee Belt - Trimax Specification 404-040-830 More Info >	£22.91
25	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	£584.56
26	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	£644.30
27	PTO Cone - Wide angle 410-000-257 More Info >	£36.53
28	Gearbox Mount Weldment 417-001-297 More Info >	£171.45
29	Gearbox Spacer Disc 417-001-300 More Info >	£41.13
30	Nut - Flange 450-000-078 More Info >	£1.80
31	Spindle Assembly - Steadfast 504-000-106 More Info >	Price on Request
