NOTES:

Part #	Number on image	Usage Notes
413-000-088	18	Headstock is available in two configurations, Painted or Galvanised order according to mower fitment
413-000-089	18	Headstock is available in two configurations, Painted or Galvanised order according to mower fitment

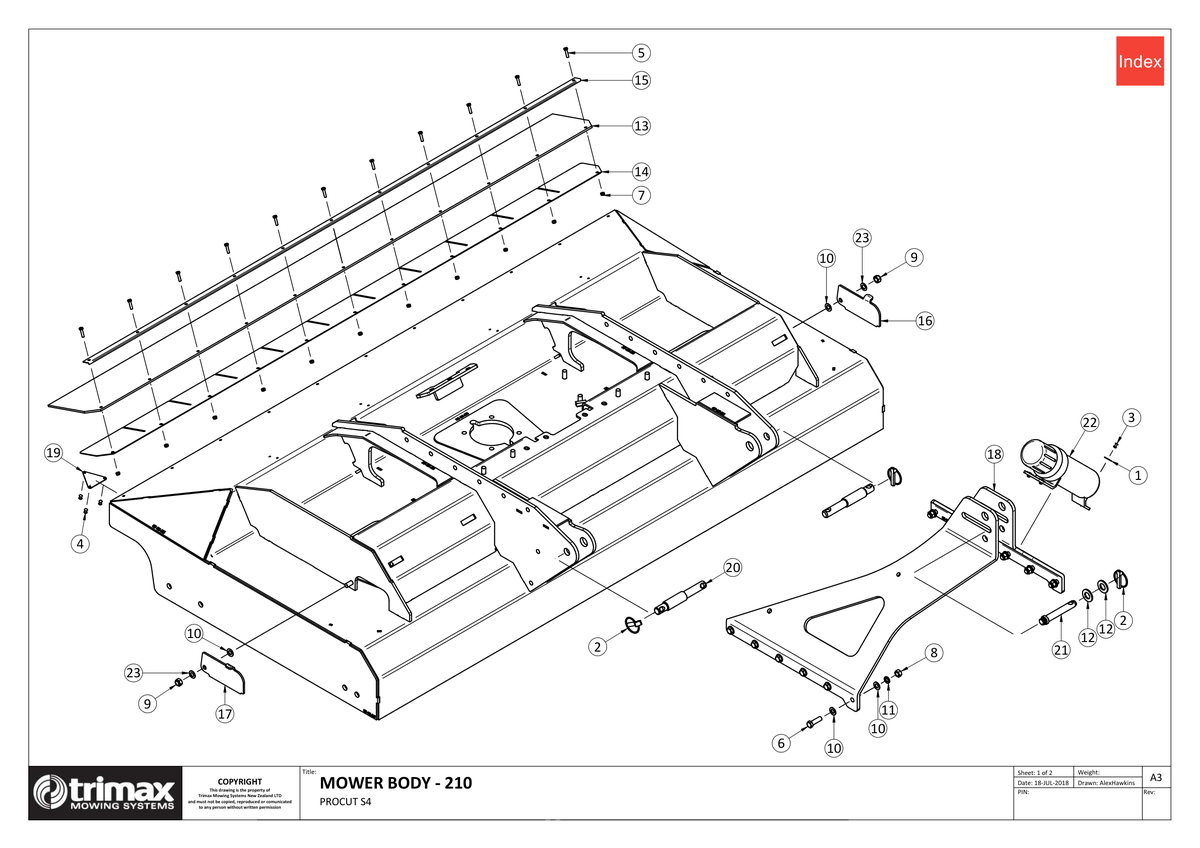

736 - Procut S4 210 - Mower Body

ProCut S4 210

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	£0.33
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
3	Blind Rivet 213-000-004 More Info >	£0.47
4	Blind Rivet 213-443-250 More Info >	£0.28
5	Bolt 301-206-253 More Info >	£0.43
6	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
7	Nut - Nyloc 307-206-053 More Info >	£0.33
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
11	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
12	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
13	Flap 410-000-101 More Info >	£101.93
14	Anti Droop Strip 410-000-102 More Info >	£68.68
15	Clamp Strip 410-000-103 More Info >	£68.20
16	Wash Panel - RH 410-000-134 More Info >	£19.16
17	Wash Panel - LH 410-000-135 More Info >	£19.16
18	Headstock Weldment i See notes section for usage notes on this part 413-000-088 More Info >	£469.79
18	Headstock Weldment - Galv PC4 i See notes section for usage notes on this part 413-000-089 More Info >	Price on Request
19	Cap Plate 417-001-024 More Info >	£2.33
20	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	£17.85
21	Pin - Linkage - Top Link 419-301-150 More Info >	£7.60
22	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	£31.95
23	Washer - Crinkle 450-000-116 More Info >	£1.11
