NOTES:

Part #	Number on image	Usage Notes
412-000-256	14	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-258	14	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-305	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-306	17	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment

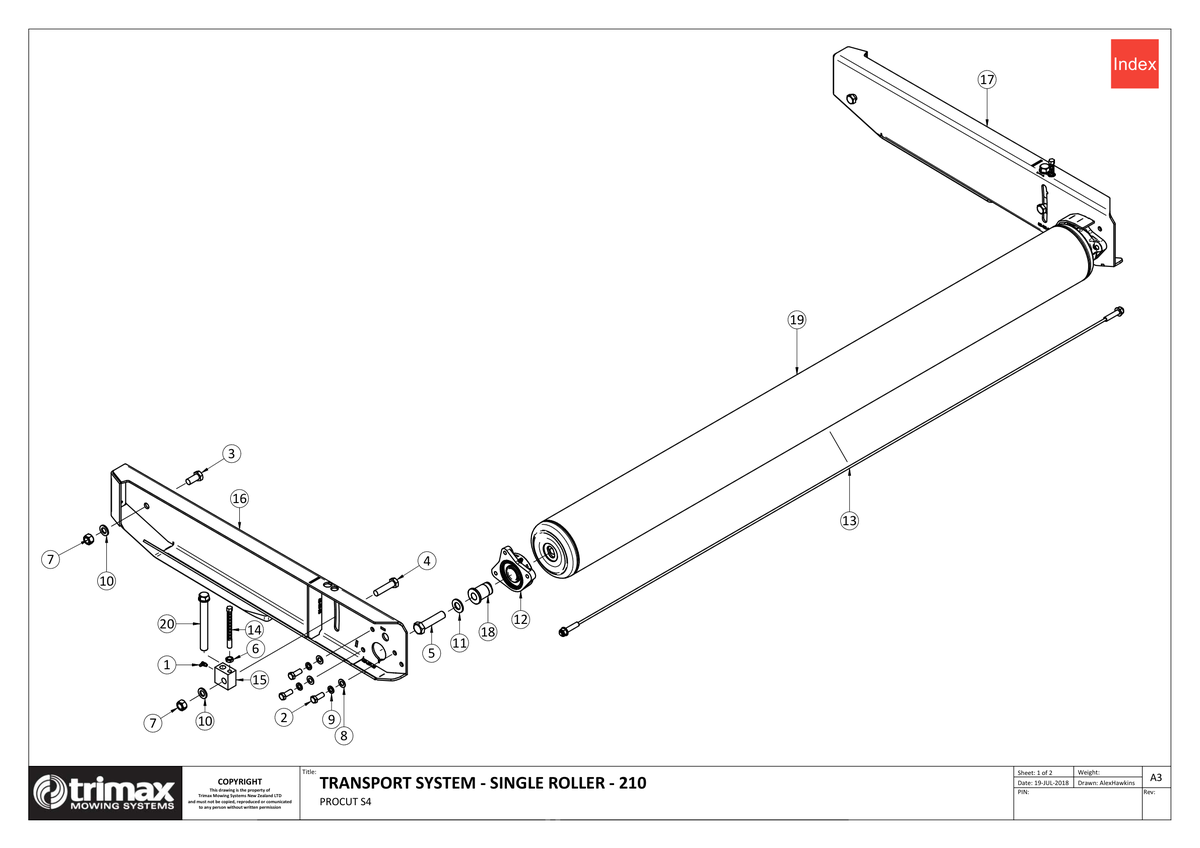

736 - Procut S4 210 - Transport System - Single Roller

ProCut S4 210

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-650 More Info >	£2.54
2	Bolt 301-212-303 More Info >	£1.27
3	Bolt 301-216-353 More Info >	£2.59
4	Bolt 301-216-653 More Info >	£3.65
5	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	£7.45
6	Nut - Half 307-212-023 More Info >	£1.01
7	Nut - Plain 307-216-013 More Info >	£1.01
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
10	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
11	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
12	Roller Bearing Assembly - TriBolt 307-22 Oxide - 401-000-032 More Info >	£61.08
13	Scraper - Roller 210 404-320-123 More Info >	£42.29
14	Height Indicator - Metric i See notes section for usage notes on this part 412-000-256 More Info >	£28.41
14	Height Indicator - Imperial i See notes section for usage notes on this part 412-000-258 More Info >	£31.04
15	Height Adjuster Block 412-000-279 More Info >	£42.13
16	Side Channel Weldment - LocTek - SRR LH i See notes section for usage notes on this part 412-000-305 More Info >	£463.66
17	Side Channel Weldment - LocTek - SRR RH i See notes section for usage notes on this part 412-000-306 More Info >	£463.66
18	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	£28.51
19	Roller Weldment - Loctek 210 414-000-093 More Info >	£548.49
20	Height Adjuster Rod - RapidSet 450-000-126 More Info >	£36.23
