NOTES:

Part #	Number on image	Usage Notes
405-000-015	31	Locate and supply serial number when ordering new gearbox to order the correct gearbox. Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount
405-200-720	32	Locate and supply serial number when ordering new gearbox to order the correct gearbox. Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount
504-000-133	37	The new spindle with keyway is backwards compatible with prior machines

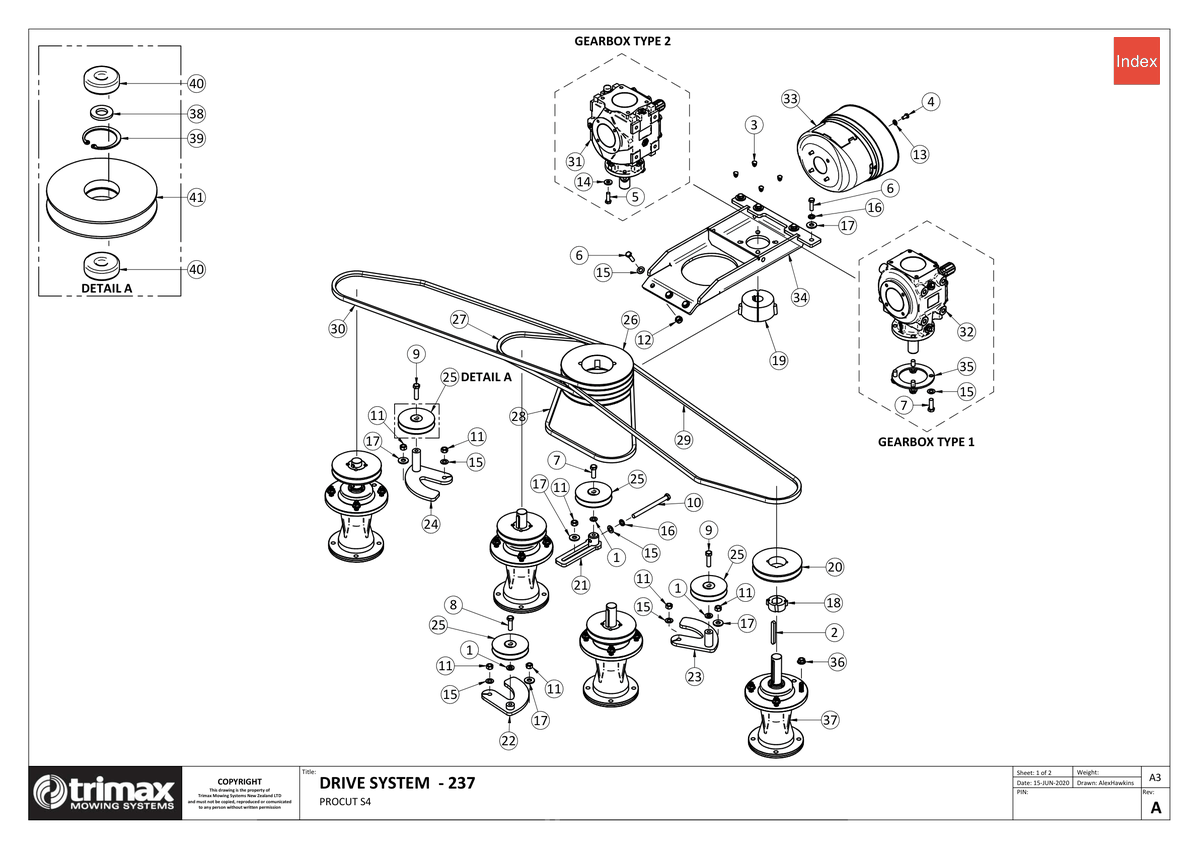

736 - Procut S4 237 - Drive System Taper Lock Pulley

ProCut S4 237

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Key - 10 x 8 x 85 DIN6885 Form A 205-000-003 More Info >	£2.97
3	Blanking Plug - M12 209-900-012 More Info >	£0.91
4	Bolt 301-208-163 More Info >	£0.53
5	Bolt 301-210-303 More Info >	£0.80
6	Bolt 301-210-353 More Info >	£0.91
7	Bolt 301-212-353 More Info >	£1.38
8	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
9	Bolt 301-212-453 More Info >	£1.64
10	Bolt 301-612-153 More Info >	£5.39
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
13	Washer - Flat 308-080-016 More Info >	£0.33
14	Washer - Heavy Flat 308-100-063 More Info >	£0.33
15	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
16	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
17	Washer - Heavy Flat 308-120-063 More Info >	£0.33
18	Bush - Taper Lock 402-000-078 More Info >	£13.47
19	Bush - Taper Lock 402-060-680 More Info >	£43.76
20	Pulley - Taper Lock 403-000-083 More Info >	£50.73
21	Idler Weldment - Slotted 403-000-105 More Info >	£65.46
22	Idler Tower Incl Base 403-330-424 More Info >	£53.82
23	Idler Tower Incl Base 403-330-432 More Info >	£39.97
24	Idler Tower Incl Base 403-330-442 More Info >	£49.52
25	Pulley Assembly - Idler 403-360-111 More Info >	£45.50
26	Pulley - Taper Lock 403-361-290 More Info >	£160.00
27	Vee Belt 404-040-460 More Info >	£15.52
28	Vee Belt 404-040-520 More Info >	£16.11
29	Vee Belt 404-040-900 More Info >	£25.19
30	Vee Belt 404-040-920 More Info >	£27.35
31	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	£584.56
32	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	£644.30
33	PTO Cone - Wide angle 410-000-257 More Info >	£36.53
34	Gearbox Mount Weldment 417-001-297 More Info >	£171.45
35	Gearbox Spacer Disc 417-001-300 More Info >	£41.13
36	Nut - Flange 450-000-078 More Info >	£1.80
37	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	£473.49
39	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
40	Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900 More Info >	£13.00
41	Pulley - Idler 403-360-110 More Info >	£20.59
